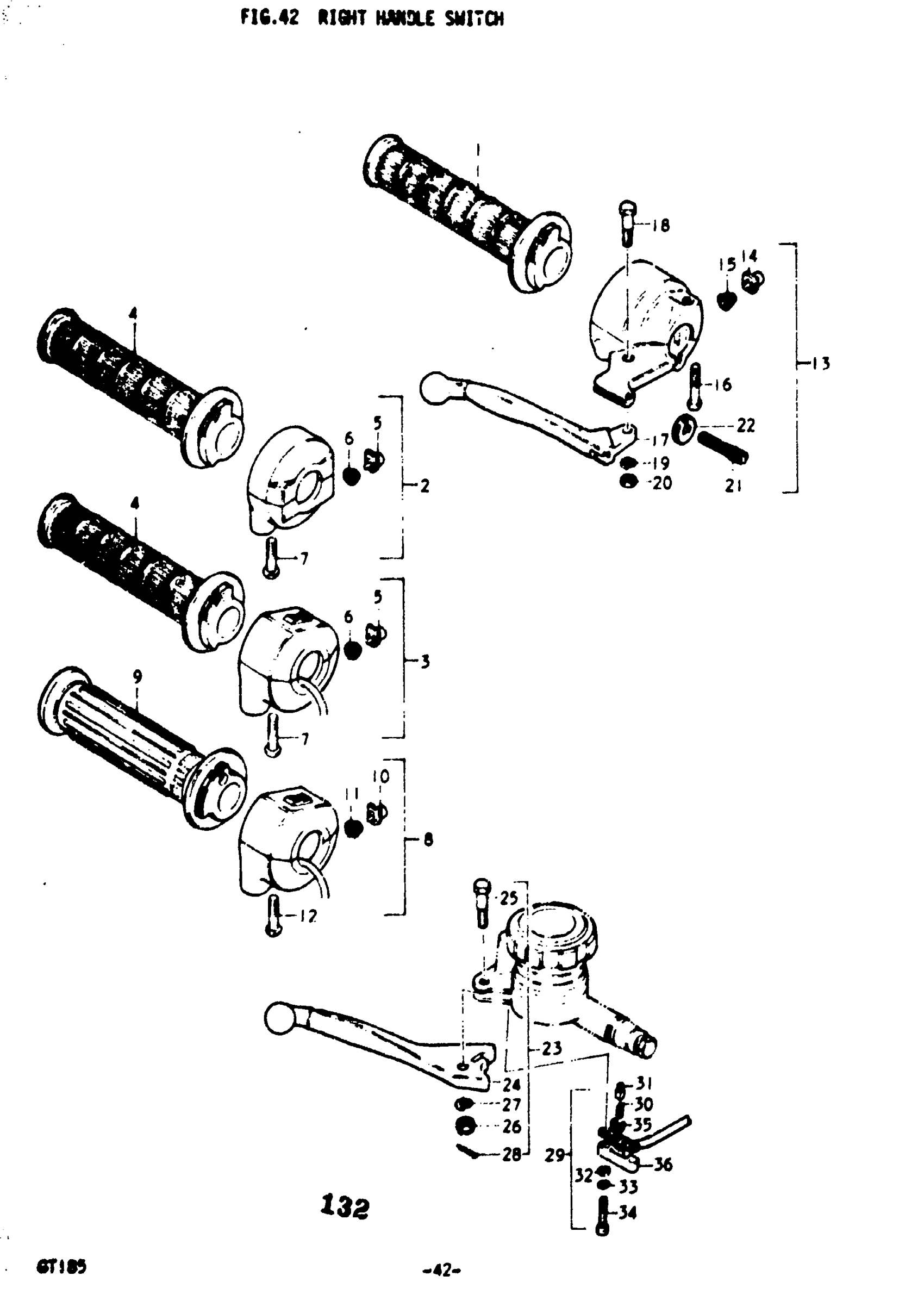

Suzuki GT185 (1977) RIGHT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, THROTTLE | K

57110-36010

Unavailable

2

GRIP ASSY, THROTTLE | L

57100-36310

Unavailable

3

GRIP ASSY, THROTTLE | M; Includes Item(s) 4 - 7

57100-36610

Unavailable

4

GRIP, THROTTLE | L,M

57110-36010

Unavailable

5

BUTTON | L,M

57370-01311

Unavailable

6

SPRING | L,M

57382-01311

Unavailable

7

SCREW | L,M This part replaces 02111-05257.

02112-05257

$1.49

8

NO DESCRIPTION AVAILABLE | A,B; Includes Item(s) 9 - 12 This part replaces 57100-36630.

57100-36631

Unavailable

9

GRIP, THROTTLE | A,B

57110-36630

$28.27

10

BUTTON | A,B

57370-01311

Unavailable

11

SPRING | A,B

57382-01311

Unavailable

12

SCREW | A,B This part replaces 02111-05257.

02112-05257

$1.49

13

BRAKE LEVER & SWITCH ASSY | K; Includes Item(s) 14 - 22

57300-36110

Unavailable

14

BUTTON, STARTING | K

57370-01311

Unavailable

15

SPRING | K

57382-01311

Unavailable

16

SCREW | K This part replaces 02111-05257.

02112-05257

$1.49

17

LEVER, BRAKE | K This part replaces 57420-33010.

57420-18602

Unavailable

18

BOLT | K

57431-25310

Unavailable

19

LOCK WASHER | K This part replaces 08321-21068.

08321-01067

$2.13

20

.NUT | K This part replaces 08311-11068.

08310-00067

$2.13

21

ADJUSTER, BRAKE CABLE | K

57441-11010

$5.62

22

NUT | K

57442-11010

$2.79

23

BRAKE LEVER ASSY | L; TO 57300-18621

57300-18620

Unavailable

23

LEVER ASSY, BRAKE | M,A,B; Includes Item(s) 24 - 28 This part replaces 57300-18621.

57300-45010

Unavailable

24

LEVER, BRAKE | L,M,A,B This part replaces 57420-18620.

57420-45010

Unavailable

25

BOLT | L,M,A,B This part replaces 57431-18620.

57431-18621

$8.28

26

NUT | L,M,A,B

57433-11010

$5.64

27

LOCK WASHER | L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

28

PIN | L,M,A,B This part replaces 04111-16158.

04111-1620A

$1.49

29

SWITCH ASSY, STOP | L,M,A,B; Includes Item(s) 30 - 36

57460-33700

$43.37

30

HOLDER | L,M,A,B This part replaces 57462-18600.

57465-18601

$4.34

31

HOLDER | L,M,A,B This part replaces 57463-18600.

57465-18601

$4.34

32

WASHER | L,M,A,B This part replaces 08322-21038.

08322-01037

$1.93

33

WASHER,LOCK | L,M,A,B This part replaces 08321-21038.

09162-03001

$1.49

34

SCREW | L,M,A,B This part replaces 09125-03105.

09125-03105-XC0

$2.23

35

HOLDER | L,M,A,B This part replaces 57461-18600.

57465-18601

$4.34

36

COVER | L,M,A,B

57481-33010

$5.84
