1977 Suzuki GT185 Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1977 Suzuki GT185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

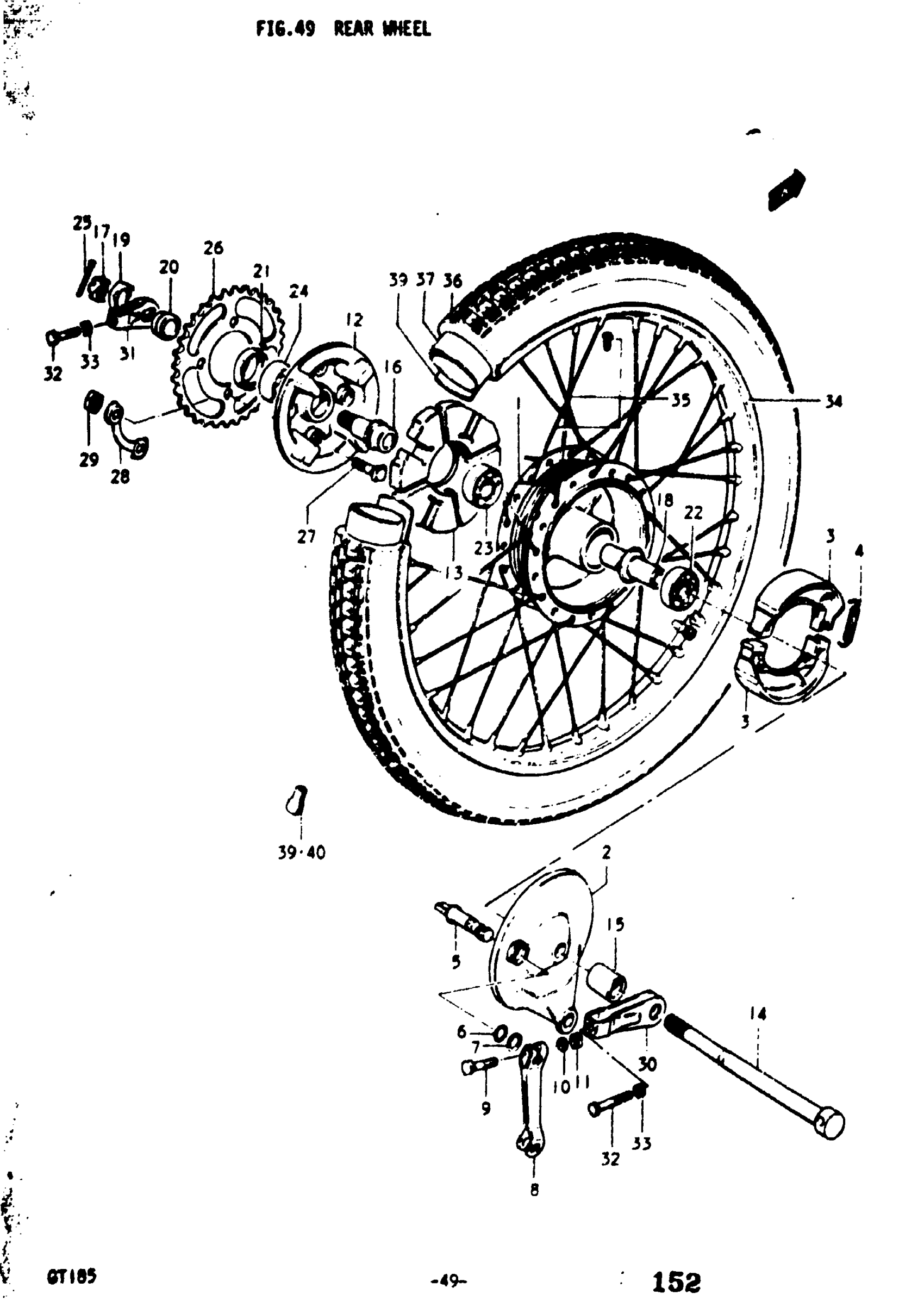

1977 Suzuki GT185 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, WHEEL | K,L,M,A,B This part replaces 64110-07601.

64110-07604

1
Out of stock

2

NO DESCRIPTION AVAILABLE | K,L,M,A,B This part replaces 64210-07601.

64210-07605

1
Out of stock

3

SHOE SET, BRAKE | K,L,M,A,B This part replaces 54410-07002.

54401-07810

2
Out of stock

4

SPRING | K,L,M,A,B This part replaces 09443-07001.

09443-07025

2
Out of stock

5

CAM, BRAKE | K; TO 54441-07001

54441-20000

—
Out of stock

5

CAM, BRAKE | L; TO 54441-01002

54441-07001

—
Out of stock

5

CAM, BRAKE | M,A,B

54441-01002

1
Out of stock

6

O RING | K,L,M,A,B

09280-12001

1

$3.25

In stock

7

WASHER | K,L,M,A,B

09160-12011

1
Out of stock

8

LEVER, BRAKE CAM | K,L; TO 64451-27200 CHROME PLATED

64451-27610

—
Out of stock

8

NO DESCRIPTION AVAILABLE | L,M,A,B; ZINC PLATED This part replaces 64451-27200.

64451-27201

1
Out of stock

9

BOLT, ADJUSTER | K,L,M,A,B This part replaces 09100-06050.

09100-06150

1
Out of stock

10

WASHER | K,L,M,A,B This part replaces 08322-21068.

08322-01067

1
Out of stock

11

.NUT | K,L,M,A,B This part replaces 08311-11068.

08310-00067

1
Out of stock

12

DRUM, SPROCKET MOUNTING | K,L,M,A,B

64611-07000

1
Out of stock

13

SHOCK ABSORBER, HUB | K,L,M,A,B This part replaces 64651-07000.

64651-07001

1
Out of stock

14

AXLE, REAR | K,L

64711-36000

1
Out of stock

14

NO DESCRIPTION AVAILABLE | M,A,B This part replaces 64711-28001.

64711-4130V

1
Out of stock

15

SPACER | K,L,M,A,B

09180-15002

1
Out of stock

16

SHAFT, SPROCKET MOUNTING DRUM | K,L

64761-36000

1
Out of stock

16

SHAFT, SPROCKET MOUNTING DRUM | M,A,B

64761-36001

1
Out of stock

17

NUT | K,L,M,A,B This part replaces 08314-31128.

08314-3112A

1
Out of stock

18

SPACER | K,L,M,A,B; FROM 64730-07001

64730-07002

1
Out of stock

19

NUT | K,L,M,A; TO 09140-18005 This part replaces 09140-18001.

09140-18501

1
Out of stock

19

NUT | B This part replaces 09140-18005.

09140-18501

1
Out of stock

20

SPACER, SPROCKET MOUNTING DRUM | K,L,M,A

64772-36000

—
Out of stock

20

SPACER, SPRCOKET MOUNTING DRUM | B; FROM 64772-36000

09180-20056

1
Out of stock

21

SEAL,OIL (27X47X7) | K,L,M,A,B This part replaces 09283-28002.

09285-28004

1
Out of stock

23

BEARING, LH | K,L,M,A,B This part replaces 08143-62020.

08143-62027

1
Out of stock

24

BEARING, DRIVE SHAFT LH | K,L,M,A,B This part replaces 08113-62040.

09262-20069

1
Out of stock

25

PIN | K,L,M,A,B This part replaces 04111-30308.

04111-3030A

1
Out of stock

26

SPROCKET, REAR | K,L,M,A,B; NT: 42

64511-36610

1
Out of stock

26

SPROCKET, REAR | K,L,M,A,B; NT: 38 OPT

64511-36600

1
Out of stock

26

SPROCKET, REAR | K,L,M,A,B; NT: 40 OPT

64511-36100

1
Out of stock

27

BOLT | K,L,M,A,B

09105-08001

4
Out of stock

28

WASHER | K,L,M,A,B

09169-08012

2
Out of stock

29

4

$1.93

In stock

30

ADJUSTER, CHAIN | K,L,M,A,B This part replaces 61410-36000.

61410-36002

1
Out of stock

31

ADJUSTER, CHAIN LH | K,L,M,A,B

61420-36000

1
Out of stock

32

BOLT (8X50) | K,L,M,A,B This part replaces 09104-08006.

09104-08034

2
Out of stock

33

2

$1.93

In stock

34

RIM, WHEEL (1.60x18) | K,L,M,A,B This part replaces 65311-20120.

55311-05300

1
Out of stock

36

NO DESCRIPTION AVAILABLE | K,L,M,A,B; 3.00-18 This part replaces 65100-36600.

65100-12B00

1
Out of stock

37

TUBE ASSY,WHEEL | K,L,M,A,B; 3.00-18 This part replaces 55200-11601.

55200-26F01

1
Out of stock

38

IN TUBE PROTECT | K,L,M,A,B; 22-18 This part replaces 55261-11010.

55261-26F10

1
Out of stock

39

BALANCER WHEEL (15G) | (0~3) This part replaces 55411-11000.

55411-26G00

1
Out of stock

40

BALANCER WHEEL (30G) | (0~3) This part replaces 55412-11000.

55413-41F00

1
Out of stock
