1977 Suzuki GT185 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1977 Suzuki GT185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

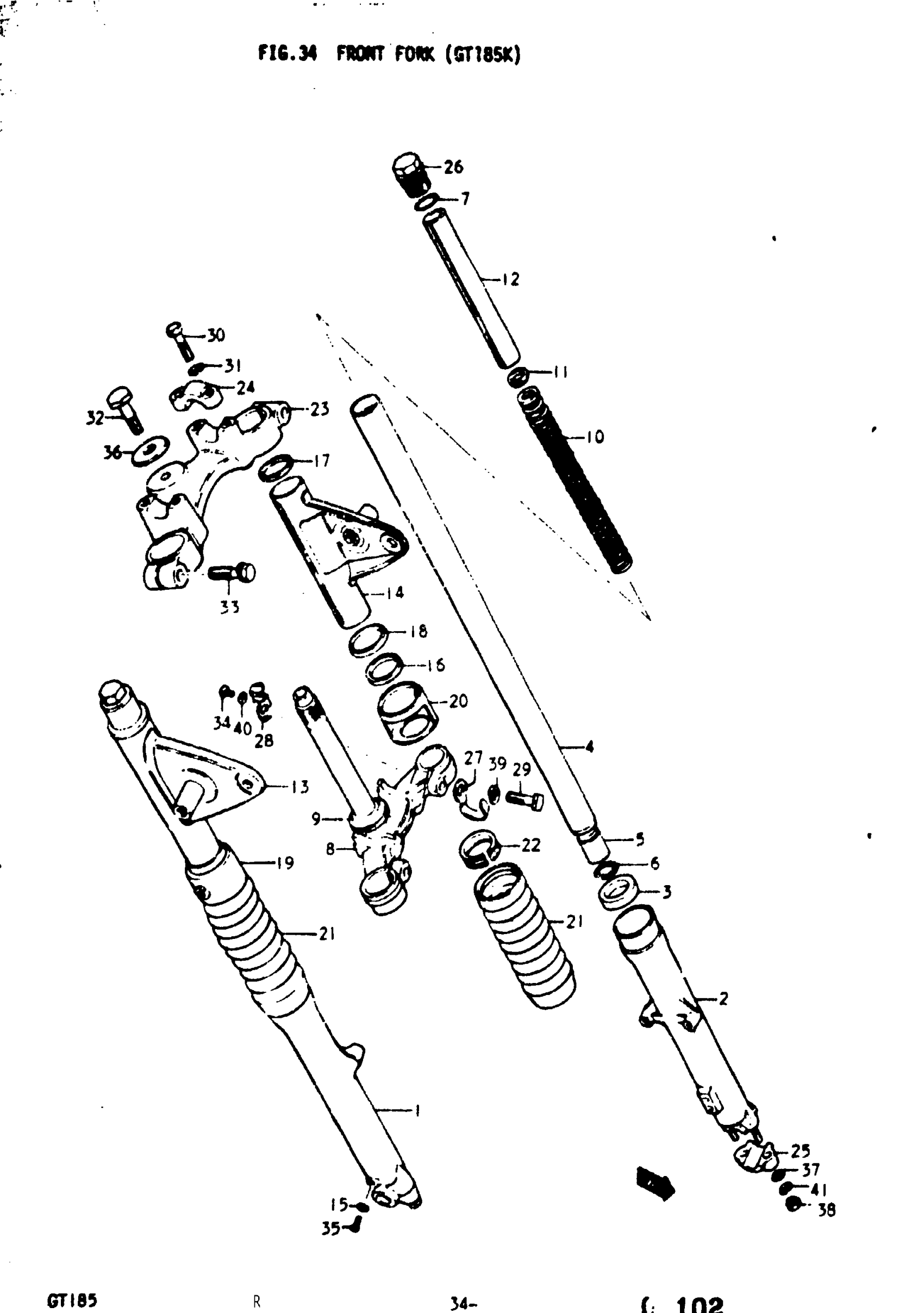

1977 Suzuki GT185 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 41 This part replaces 51100-36010-279.

51106-36010

—
Out of stock

1

OUTER TUBE, RH | TO 51140-36011 USED WITH 51132-16511

51130-36010

—
Out of stock

2

OUTER TUBE, LK | TO 51140-36011 USED WITH 51132-16511

51140-36010

—
Out of stock

3

OIL SEAL

51153-08011

2
Out of stock

4

INNER TUBE

51111-36010

2
Out of stock

5

PISTON

51112-28310

2
Out of stock

6

SNAP RING | TO 5118-36213

08331-41249

2
Out of stock

7

O RING This part replaces 51181-25010.

51181-29401

2
Out of stock

8

STEERING STEM | TO 51410-28013

51410-28012

—
Out of stock

9

RACE, STEERING OUTER

51621-33001

1
Out of stock

10

SPRING | TO 51171-36011 This part replaces 51171-36010.

51171-36011

—
Out of stock

10

SPRING

51171-36011

—
Out of stock

11

GUIDE, SPRING

51172-18630

2
Out of stock

12

SPACER | USED WITH REF.NO. 10-1

51176-36010

—
Out of stock

12

SPACER | USED WITH REF.NO. 10-2

51176-36011

—
Out of stock

13

NO DESCRIPTION AVAILABLE This part replaces 51530-29630-279.

51500-29820-126

1
Out of stock

14

COVER, LH

51540-29630-279

—
Out of stock

15

GASKET

51183-03010

2
Out of stock

16

GASKET | TO 51553-25010

51553-25210

2
Out of stock

17

GUIDE, COVER

51551-20210

2
Out of stock

18

GUIDE, COVER

51551-25010

2
Out of stock

19

COVER, STEERING STEM RH

51554-36010

1
Out of stock

20

COVER, STEERING STEM LH

51557-36010

1
Out of stock

21

BOOT

51173-36010

—
Out of stock

22

GUIDE, BOOT

51573-36010

—
Out of stock

23

STEERING STEM HEAD | TO 51311-28012-019

51311-28011-019

—
Out of stock

24

HOLDER, HANDLEBAR

56211-22011

2
Out of stock

25

HOLDER, AXLE

51132-16510

2
Out of stock

26

CAP

51351-25011

2
Out of stock

27

CLIP | TO 51455-36010

51455-28011

—
Out of stock

28

CLIP

51453-30011

1
Out of stock

29

BOLT | CHROME PLATED TO 51451-28012

51451-28011

—
Out of stock

29

BOLT | ZINC PLATED

51451-28012

2
Out of stock

30

BOLT This part replaces 01221-08307.

01204-08307

4
Out of stock

31

.LOCK WASHER This part replaces 08321-21088.

08321-01087

4
Out of stock

32

BOLT This part replaces 51351-20010.

51351-29400

1
Out of stock

33

BOLT | CROWN BOLT TO 51451-15113

51451-15112

—
Out of stock

33

BOLT | HEXAGON BOLT This part replaces 51451-15113.

01104-10388

2
Out of stock

34

SCREW This part replaces 02112-06108.

02112-06107

1
Out of stock

35

SCREW This part replaces 02111-04087.

02112-04087

2
Out of stock

36

WASHER

51356-22011

1
Out of stock

37

WASHER This part replaces 08322-21088.

08322-01087

4
Out of stock

38

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

4
Out of stock

39

LOCK WASHER This part replaces 08321-21128.

08321-01127

2
Out of stock

40

LOCK WASHER This part replaces 08321-21068.

08321-01067

1
Out of stock

41

.LOCK WASHER This part replaces 08321-21088.

08321-01087

4
Out of stock
