Partiron

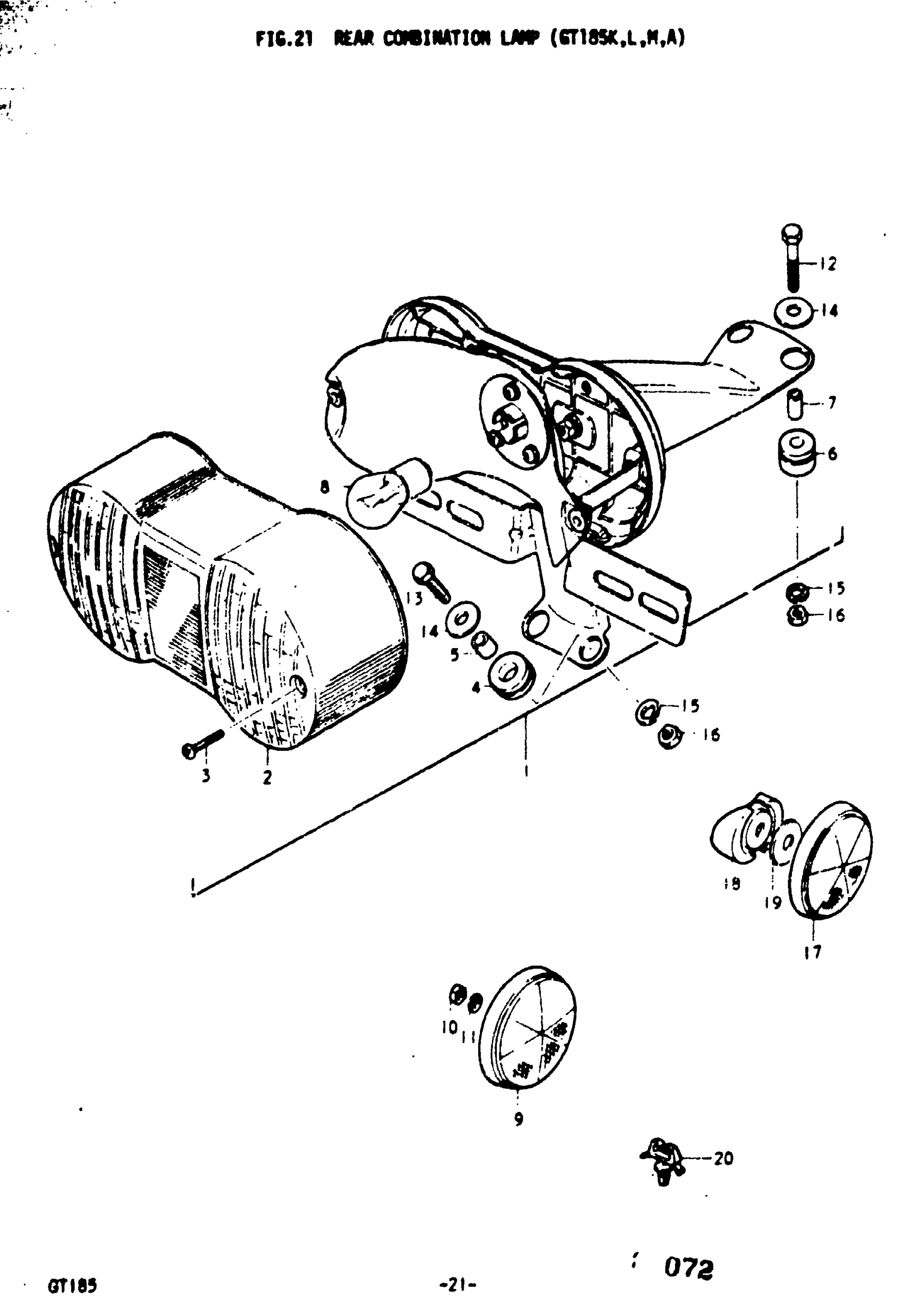

Suzuki GT185 (1977) REAR COMBINATION LAMP (GT185K Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | K,L,M,A; Includes Item(s) 2 - 7 This part replaces 35710-36110.

35710-36110-999

Unavailable

2

TAIL LAMP LENS | K,L,M,A; FROM 35712-27691 This part replaces 35712-27660.

35712-27671

Unavailable

3

SCREW | K,L,M,A This part replaces 02111-04208.

02112-0420A

$1.49

4

CUSHION, LOWER | K,L,M,A

35765-15010

Unavailable

5

SPACER | K,L,M,A This part replaces 35766-15010.

35766-37110

$5.28

6

CUSHION, UPPER | K,L,M,A

35765-22210

$3.84

7

SPACER | K,L,M,A This part replaces 35766-22210.

35766-37120

Unavailable

8

BULB | K,L,M,A; 12V, 32/3CP

09471-12035

$4.49

9

REFLECTOR, REAR | K,L,M,A

35970-31610

Unavailable

10

NUT | K,L,M,A This part replaces 08311-11058.

08310-00057

$1.84

11

LOCK WASHER | K,L,M This part replaces 08321-21058.

08321-0105A

$1.84

12

BOLT | K,L,M This part replaces 01112-06258.

01500-06257

$1.97

12

BOLT | A This part replaces 01112-06208.

01500-06207

$2.28

13

BOLT | K,L,M This part replaces 01112-06208.

01500-06207

$2.28

13

BOLT, CANISTER | A This part replaces 01112-06168.

01500-06167

$1.97

14

WASHER (6.5X20X1.2) | K,L,M,A This part replaces 09160-06027.

09160-06077

$1.91

15

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13

16

.NUT | K,L,M,A This part replaces 08311-11068.

08310-00067

$2.13

17

REFLEX REFLECTOR FRONT | K,L,M,A This part replaces 35950-31010.

35950-49080

$17.24

18

SPACER | K,L,M,A

35995-29000

Unavailable

19

WASHER (6.5X20X1.2) | K,L,M,A; 6:5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

20

CLIP | K,L,M,A

36619-27300

Unavailable
