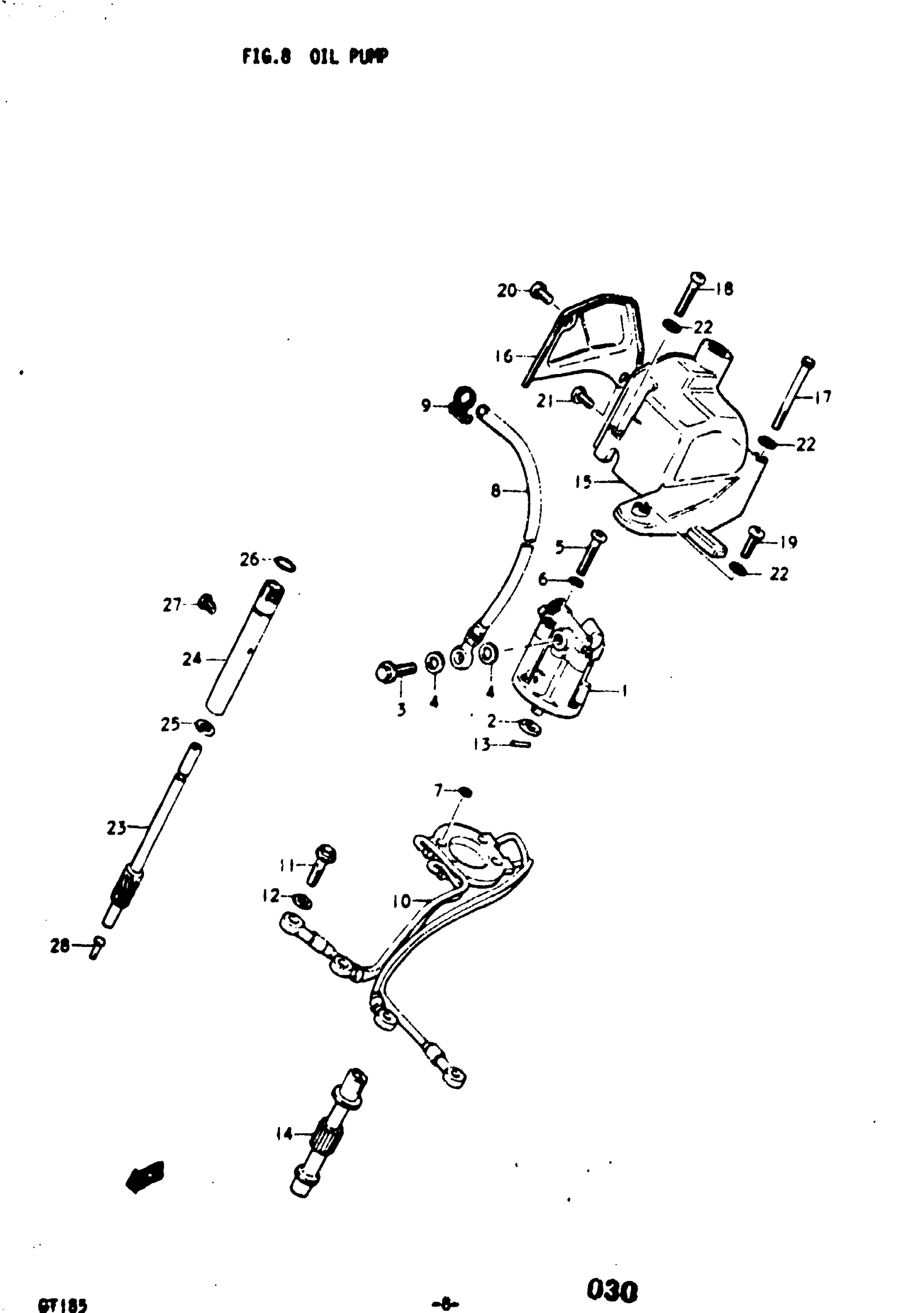

Suzuki GT185 (1977) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, OIL | K,L,M,A,B; Includes Item(s) 2

16100-36000

Unavailable

2

OIL SEAL | K,L,M,A,B

09285-08002

Unavailable

3

UNION BOLT | K,L,M,A,B

09360-06003

$3.76

4

GASKET | K,L,M,A,B This part replaces 09168-06002.

09168-06004

$1.49

5

SCREW | K,L,M,A,B This part replaces 02111-05257.

02112-05257

$1.49

6

LOCK WASHER | K,L,M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

7

O RING | K,L,M,A,B

09280-03002

$1.49

8

HOSE, OIL (L:512!97) | K,L,M,A,B This part replaces 16810-05031.

16810-07520

Unavailable

9

OIL HOSE CLAMP | K,L,M,A,B This part replaces 09400-10301.

09400-10302

Unavailable

10

HOSE, OIL B | K,L,M,A,B

16820-36030

Unavailable

11

UNION BOLT | K,L,M,A,B

09360-06003

$3.76

12

GASKET | K,L,M,A,B This part replaces 09168-06002.

09168-06004

$1.49

13

PIN | K,L,M,A,B

09261-03010

Unavailable

14

SHAFT, OIL PUMP DRIVEN | K,L,M,A,B

16331-36100

Unavailable

15

COVER, OIL PUMP A | K,L,M,A,B; FROM 11411-36000

11410-36000

Unavailable

16

COVER, OIL PUMP B | K,L,M

11412-36000

Unavailable

16

COVER, OIL PUMP B | A,B; FROM 11412-36000

11412-36001

Unavailable

17

BOLT 5X45 | K,L,M,A,B This part replaces 01111-05458.

01550-05457

$2.47

18

SCREW | K,L,M,A,B This part replaces 02111-05257.

02112-05257

$1.49

19

SCREW | K,L,M,A,B This part replaces 02112-05168.

02112-05167

$1.97

20

SCREW | K,L,M,A,B This part replaces 02111-05087.

02112-05087

$1.49

21

SCREW | K,L,M,A,B This part replaces 03111-05128.

03111-0512A

$1.49

22

WASHER | K,L,M,A,B This part replaces 08322-21058.

08322-01057

$2.13

23

GEAR, TACHOMETER DRIVEN | K,L,M,A,B; NT:10

26431-25000

Unavailable

24

SLEEVE, TACHOMETER DRIVEN GEAR | K,L,M,A,B

26441-25000

Unavailable

25

WASHER | K,L,M,A,B

09160-08003

$2.23

26

O RING | K,L,M,A,B

09280-10001

$2.02

27

BOLT (6X10) | K,L,M,A,B This part replaces 09135-06002.

09135-06501

$3.04

28

NO DESCRIPTION AVAILABLE | K,L,M,A,B This part replaces 04312-06109.

09201-06003

Unavailable
