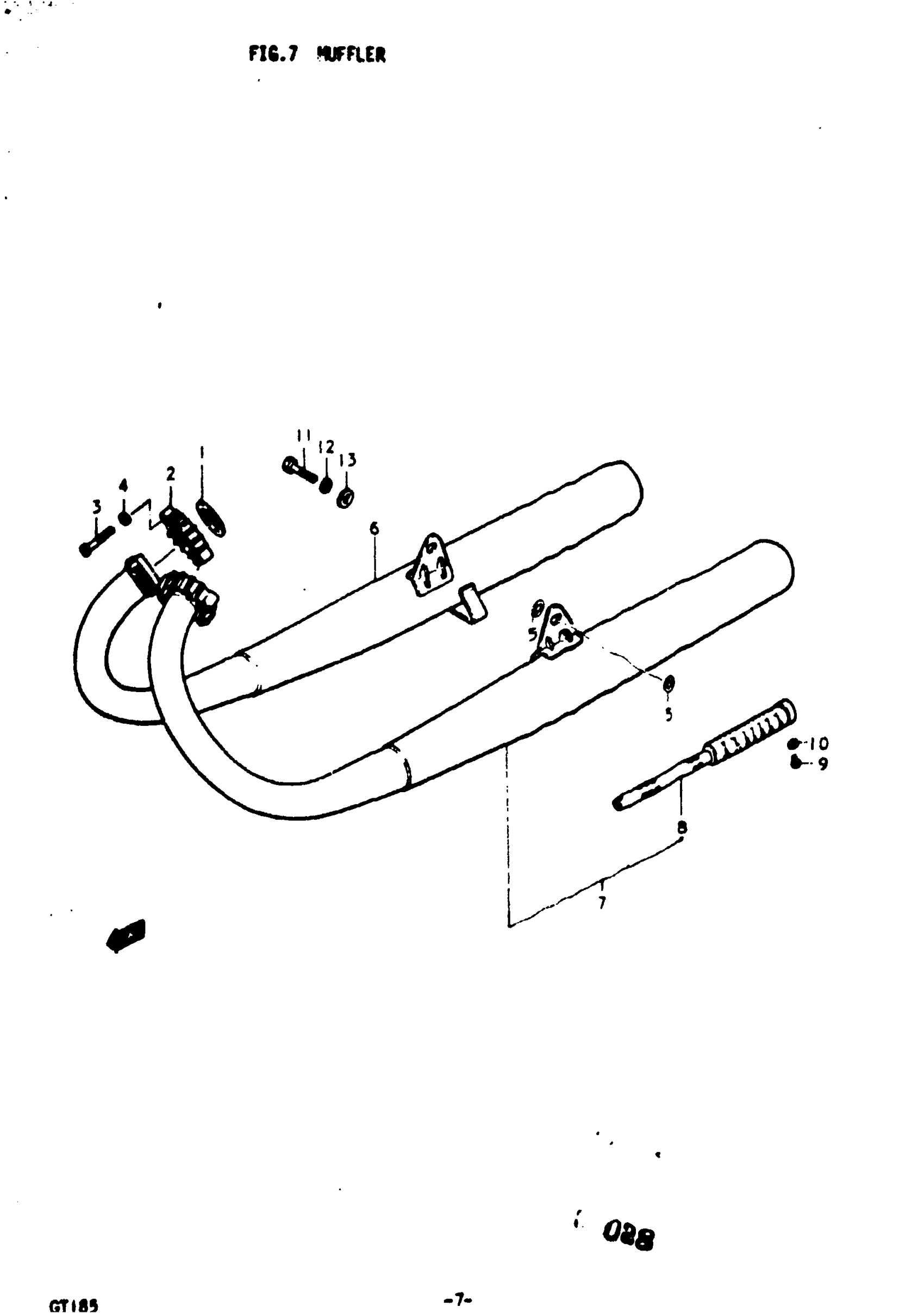

Suzuki GT185 (1977) MUFFLER Diagram

#

Description
Price

1

.GASKET,EXHAUST | K,L,M,A,B This part replaces 14181-05010.

14181-18C00

$7.22

2

CLAMP, EXHAUST PIPE | K,L,M,A,B

14182-36000

Unavailable

3

BOLT | K,L,M,A,B This part replaces 01221-08357.

01204-08357

$2.09

4

.LOCK WASHER | K,L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13

5

WASHER | K,L This part replaces 08322-21088.

08322-01087

$2.13

6

MUFFLER ASSY, RH | K,L; TO 14301-36101

14301-36100

Unavailable

6

NO DESCRIPTION AVAILABLE | M,A,B This part replaces 14301-36101.

14301-36102-H01

Unavailable

7

NO DESCRIPTION AVAILABLE | K,L; TO 14302-36101 This part replaces 14302-36100.

14302-36102-H01

Unavailable

7

NO DESCRIPTION AVAILABLE | M,A,B; Includes Item(s) 8 - 10 This part replaces 14302-36101.

14302-36102-H01

Unavailable

8

PIPE, BAFFLE | K,L,M,A,B

14510-36100

Unavailable

9

SCREW | K,L,M,A,B This part replaces 02112-05068.

09125-05122

$2.06

10

LOCK WASHER | K,L,M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

11

BOLT 10X30 CROW | M,A This part replaces 01221-10307.

01204-10307

$2.06

11

BOLT | B This part replaces 01122-10308.

01500-1030A

$3.16

12

LOCK WASHER | M,A,B This part replaces 08321-21108.

08321-01107

$1.84

13

WASHER | M,A,B This part replaces 08322-21108.

08322-01107

$2.15
