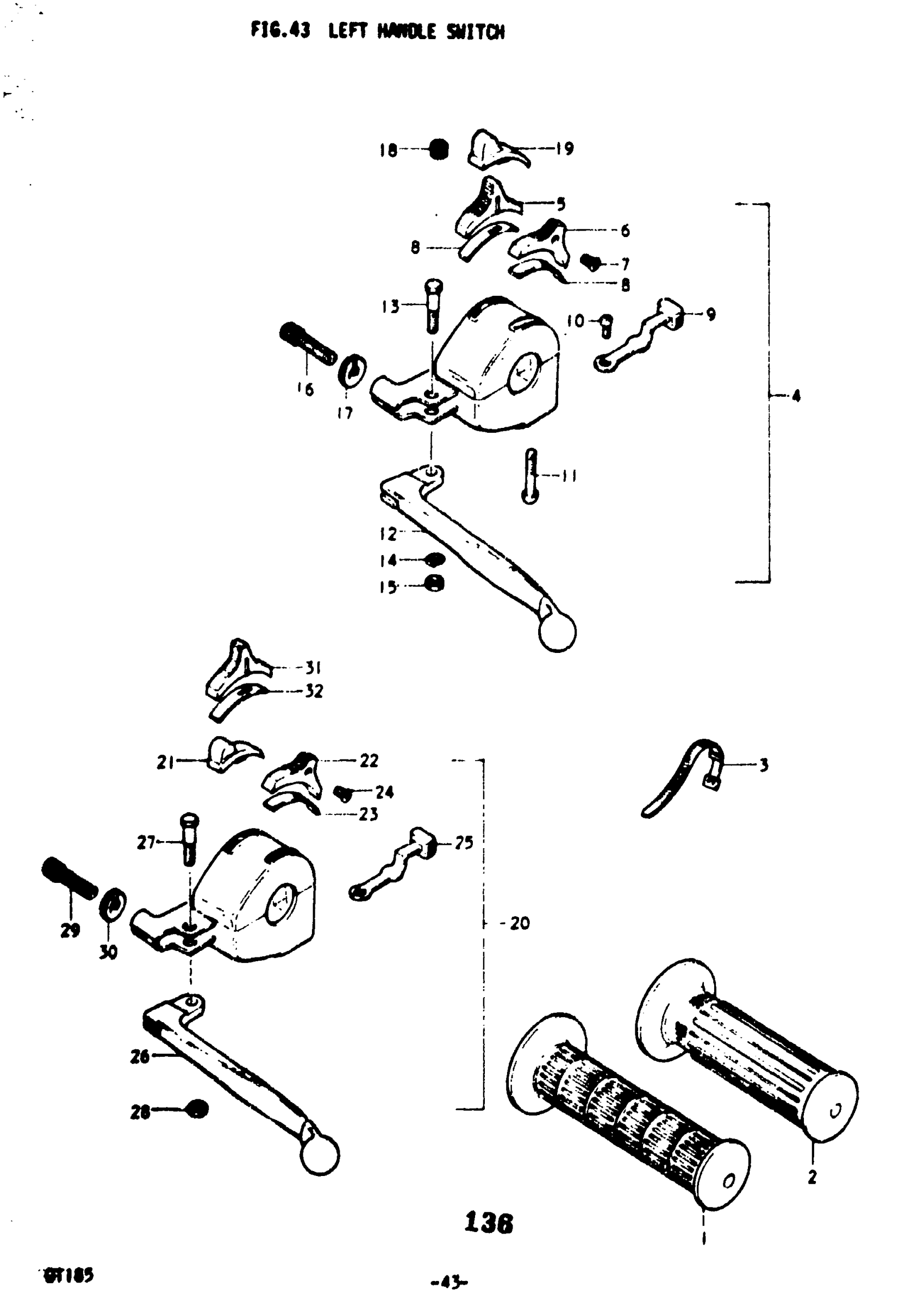

Suzuki GT185 (1977) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, LH | K,L,M

57211-33010

Unavailable

2

GRIP, LH | A,B

57211-28600

$16.32

3

BAND | K,LM,A,B

09407-12402

$3.04

4

NO DESCRIPTION AVAILABLE | K; TO 57500-36111L; TO 57500-36112 USED WITH 56741-31700 This part replaces 57500-36111.

57500-36115

Unavailable

4

NO DESCRIPTION AVAILABLE | M; Includes Item(s) 5 - 17 This part replaces 57500-36112.

57500-36115

Unavailable

5

KNOB,HANDLE SWI | K,L,M; FROM 57712-33010 This part replaces 57712-33011.

57712-33012

$6.17

6

KNOB, LIGHTING | K,L,M This part replaces 57713-33010.

57713-33011

$5.24

7

SCREW | K,L This part replaces 03121-03088.

03121-03068

$1.50

7

SCREW | M This part replaces 02121-03068.

02122-03067

$1.80

8

PLATE | K,L,M

57714-33010

$3.25

9

KNOB, TURN SIGNAL | K,L

57650-25610

Unavailable

9

KNOB, TURN SIGNAL | M; TO 57651-25611

57651-25610

Unavailable

10

SCREW | K,L,M This part replaces 02111-03067.

02112-0306B

$1.59

11

SCREW | K,L,M This part replaces 02111-05207.

02112-05207

$1.97

12

LEVER, CLUTCH | K,L This part replaces 57620-31010.

57620-45010

Unavailable

12

LEVER, CLUTCH | M This part replaces 57620-11011.

57620-45010

Unavailable

13

BOLT | K,L,M

57431-25310

Unavailable

14

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13

15

.NUT | K,L,M This part replaces 08311-11068.

08310-00067

$2.13

16

ADJUSTER, CABLE | K,L,M

57441-11010

$5.62

17

NUT | K,L,M

57442-11010

$2.79

18

SPACER | K,L,M

56741-31700

Unavailable

19

KNOB, STOP | M; FROM 57718-31010

57718-36630

Unavailable

20

NO DESCRIPTION AVAILABLE | M,A,B; F.NO.40379~; Includes Item(s) 21 - 30 This part replaces 57500-36630.

57500-36631

Unavailable

21

KNOB, STOP | M,A,B

57718-36630

Unavailable

22

KNOB, LIGHTING | M,A,B This part replaces 57713-33010.

57713-33011

$5.24

23

PLATE | M,A,B

57714-33010

$3.25

24

SCREW | M,A,B This part replaces 02121-03068.

02122-03067

$1.80

25

KNOB, TURN SIGNAL | M; TO 57651-25611

57651-25610

Unavailable

25

NO DESCRIPTION AVAILABLE | A,B This part replaces 57651-25611.

57651-25612

Unavailable

26

LEVER, CLUTCH | M,A,B This part replaces 57620-11011.

57620-45010

Unavailable

27

BOLT | M,A,B

57431-25310

Unavailable

28

.NUT | M,A,B This part replaces 08311-11068.

08310-00067

$2.13

29

ADJUSTER, CABLE | M,A,B

57441-11010

$5.62

30

NUT | M,A,B

57442-11010

$2.79

31

KNOB,HANDLE SWI | A,B; OPT This part replaces 57712-33011.

57712-33012

$6.17

32

PLATE | A,B; OPT

57714-33010

$3.25
