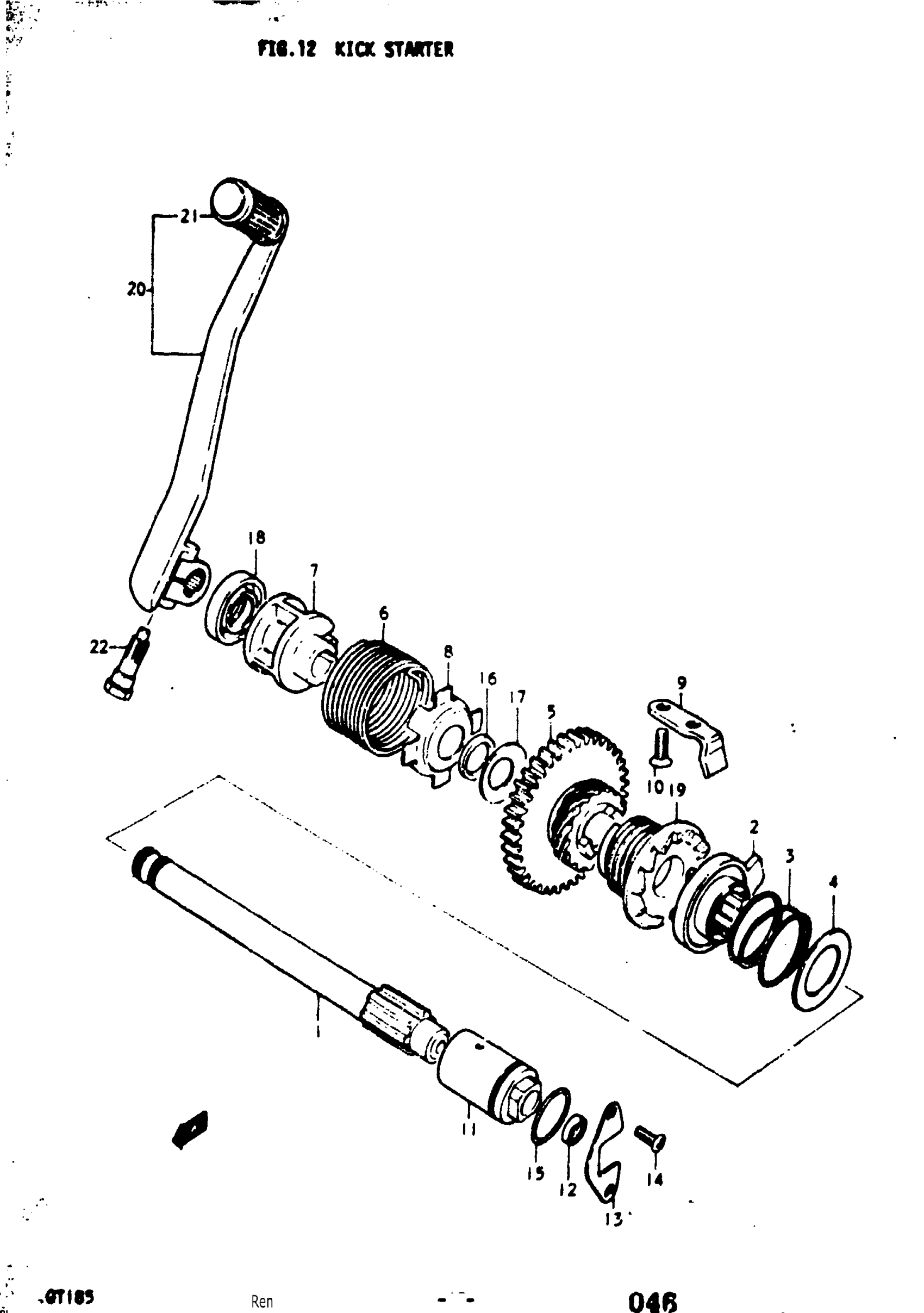

Suzuki GT185 (1977) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER | K,L,M,A,B

26211-36000

Unavailable

2

STARTER, KICK | K,L,M,A,B This part replaces 26231-30000.

26231-22A10

$63.88

3

SPRING | K,L,M,A,B

09440-32002

$2.27

4

PLATE | K,L,M,A

08212-22362

Unavailable

4

PLATE | B

08212-22342

Unavailable

5

GEAR, KICK STARTER DRIVEN | K,L; TO 26240-36001 USED WITH 16321-36101 This part replaces 26240-36000.

26240-36001

Unavailable

5

GEAR, KICK STARTER DRIVEN | L,M,A,B

26240-36001

Unavailable

6

SPRING | K,L,M,A,B

09448-48001

Unavailable

7

GUIDE, SPRING | K,L,M,A,B

26221-25030

Unavailable

8

HOLDER, SPRING | K,L,M,A,B

26222-25000

Unavailable

9

NO DESCRIPTION AVAILABLE | K,L,M,A,B This part replaces 26232-36000.

26232-36001

Unavailable

10

SCREW | K,L,M,A,B This part replaces 02122-06168.

02122-06167

$1.49

11

HOLDER, STARTER SHAFT LH | K,L This part replaces 26215-36100.

26215-36101

Unavailable

11

HOLDER, STARTER SHAFT LH | M,A,B; FROM 26215-36100

26215-36101

Unavailable

12

OIL SEAL | K,L,M,A,B

09284-12004

$5.79

13

RETAINER, STARTER SHAFT LH | K,L,M,A,B

26315-36000

Unavailable

14

SCREW | K,L,M,A,B This part replaces 02112-06128.

02112-06127

$1.84

15

O RING | K,L,M,A,B

09280-22003

$1.72

16

WASHER | K,L,M,A,B

08211-16225

Unavailable

17

WASHER | K,L,M,A,B

09164-16001

$2.12

18

SEAL,OIL(16X30X | K,L,M,A,B This part replaces 09285-16002.

09285-16005

$2.75

19

GEAR, OIL PUMP DRIVE | K,L; TO 16321-36101 USED WITH 26240-36001 This part replaces 16321-36100.

16321-36101

Unavailable

19

GEAR, OIL PUMP DRIVE | L,M,A,B

16321-36101

Unavailable

20

LEVER ASSY, KICK STARTER | K,L; TO 26300-36202 CHROME PLATED

26300-36002

Unavailable

20

LEVER ASSY, KICK STARTER | L,M,A,B; ZINC PLATED; Includes Item(s) 21

26300-36202

Unavailable

21

RUBBER,KICK STA | K,L,M,A,B This part replaces 26352-01000.

26352-01020

$3.25

22

BOLT | K,L,M,A,B

09119-08010

Unavailable
