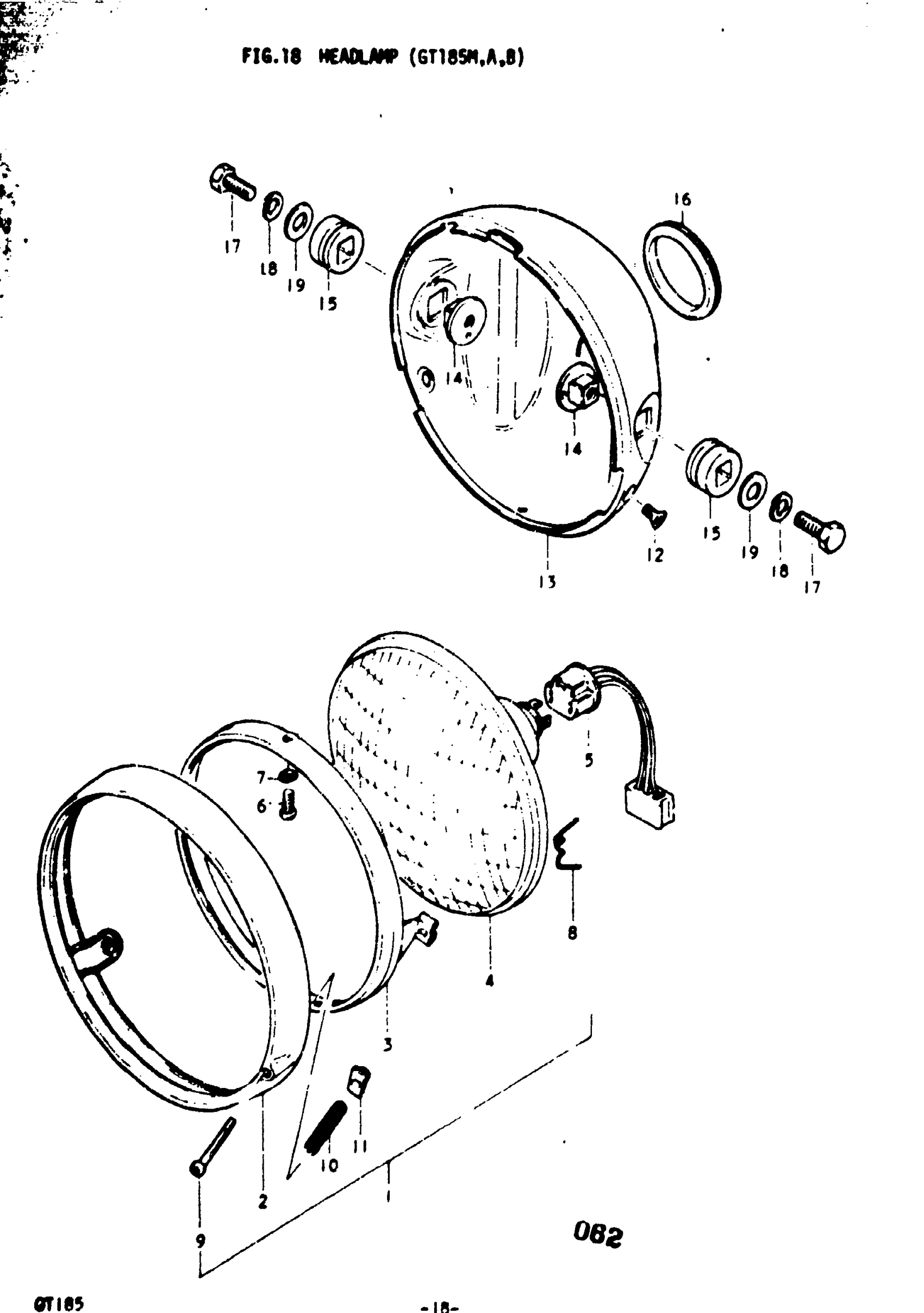

Suzuki GT185 (1977) HEADLAMP (GT185M Diagram

#

Description
Price

1

HEADLAMP ASSY* | M,A,B; F.NO.40379~; Includes Item(s) 2 - 11

35100-33630

Unavailable

2

RIM | M,A,B

35111-33630

Unavailable

3

RING | M,A,B

35127-33630

Unavailable

4

UNIT | M,A,B; 12V, 40/30W

35121-33630

Unavailable

5

LEAD WIRE, HEADLAMP | M,A,B This part replaces 36852-33630.

36853-30500

$11.63

6

SCREW | M,A,B This part replaces 35136-33630.

35136-29610

Unavailable

7

LOCK WASHER | M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

8

SPRING | M,A,B

35172-33630

Unavailable

9

SCREW | M,A,B

35151-33630

Unavailable

10

SPRING | M,A,B

35154-33630

Unavailable

11

NUT | M,A,B

35152-15611

$3.25

12

SCREW | A,B This part replaces 02231-05128.

02122-05127

$1.93

13

HOUSING, HEADLAMP | A

51810-33600

Unavailable

13

HOUSING, HEADLAMP | B

51810-27600-291

Unavailable

14

SPACER | A,B

51821-29002

Unavailable

15

CUSHION | A,B

51827-29001

Unavailable

16

GROMMET | A,B; FROM 51845-31030

51845-31031

$4.52

17

BOLT | A,B This part replaces 01221-08257.

01204-08257

$1.96

18

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

19

WASHER | A,B This part replaces 08322-11088.

08322-01087

$2.13
