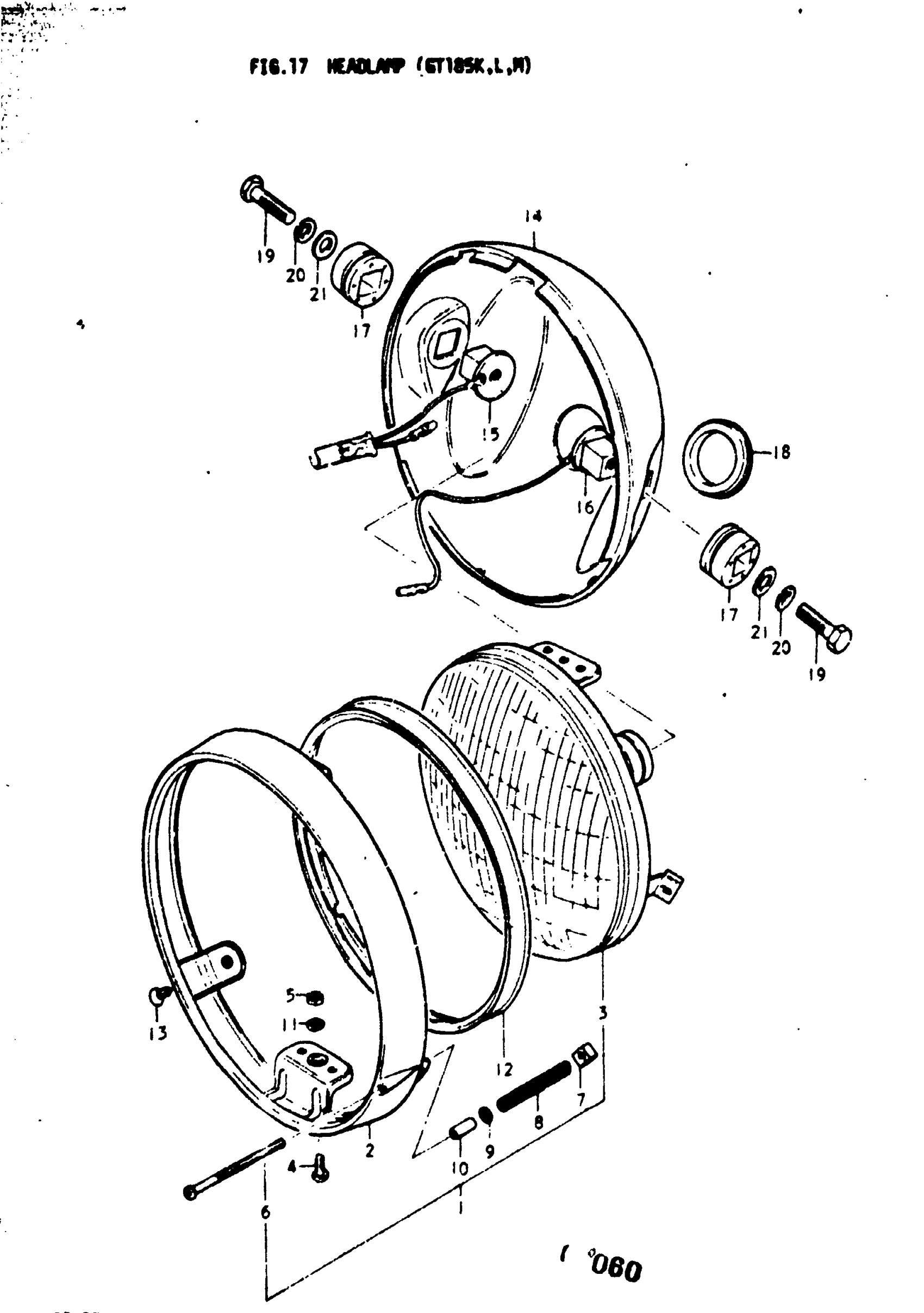

Suzuki GT185 (1977) HEADLAMP (GT185K Diagram

#

Description
Price

1

HEADLAMP ASSY | K,L,M; Includes Item(s) 2 - 12

35100-36160

Unavailable

2

RIM | K,L,M

35111-33611

Unavailable

3

UNIT | K,L,M

35121-36160

Unavailable

4

SCREW | K,L,M

35181-15611

$3.37

5

NUT | K,L,M This part replaces 08311-11048.

08310-00047

$2.23

6

SCREW | K,L,M This part replaces 35151-33611.

35151-45900

$3.65

7

NUT | K,L,M

35152-15611

$3.25

8

SPRING | K,L,M

35154-33611

Unavailable

9

WASHER | K,L,M This part replaces 08322-21048.

08322-01047

$1.86

10

SPACER | K,L,M

35165-31610

Unavailable

11

LOCK WASHER | K,L,M This part replaces 08321-21058.

08321-0105A

$1.84

12

NO DESCRIPTION AVAILABLE | K,L,M This part replaces 35127-33031.

35127-33032

Unavailable

13

SCREW | K,L,M This part replaces 02231-05128.

02122-05127

$1.93

14

NO DESCRIPTION AVAILABLE | K This part replaces 51810-27300-279.

51810-27300-737

Unavailable

14

HOUSING, HEADLAMP | L,M

51810-33600

Unavailable

15

SPACER LH | K,L This part replaces 51821-29001.

51822-29001

Unavailable

15

SPACER, RH | M

51827-29001

Unavailable

16

SPACER, LH | K,L

51822-29001

Unavailable

17

CUSHION | K,L,M

51827-29001

Unavailable

18

GROMMET | K,L,M; FROM 51845-31030

51845-31031

$4.52

19

BOLT | K,L,M This part replaces 01221-08257.

01204-08257

$1.96

20

.LOCK WASHER | K,L,M This part replaces 08321-21088.

08321-01087

$2.13

21

WASHER | K,L,M This part replaces 08322-11088.

08322-01087

$2.13
