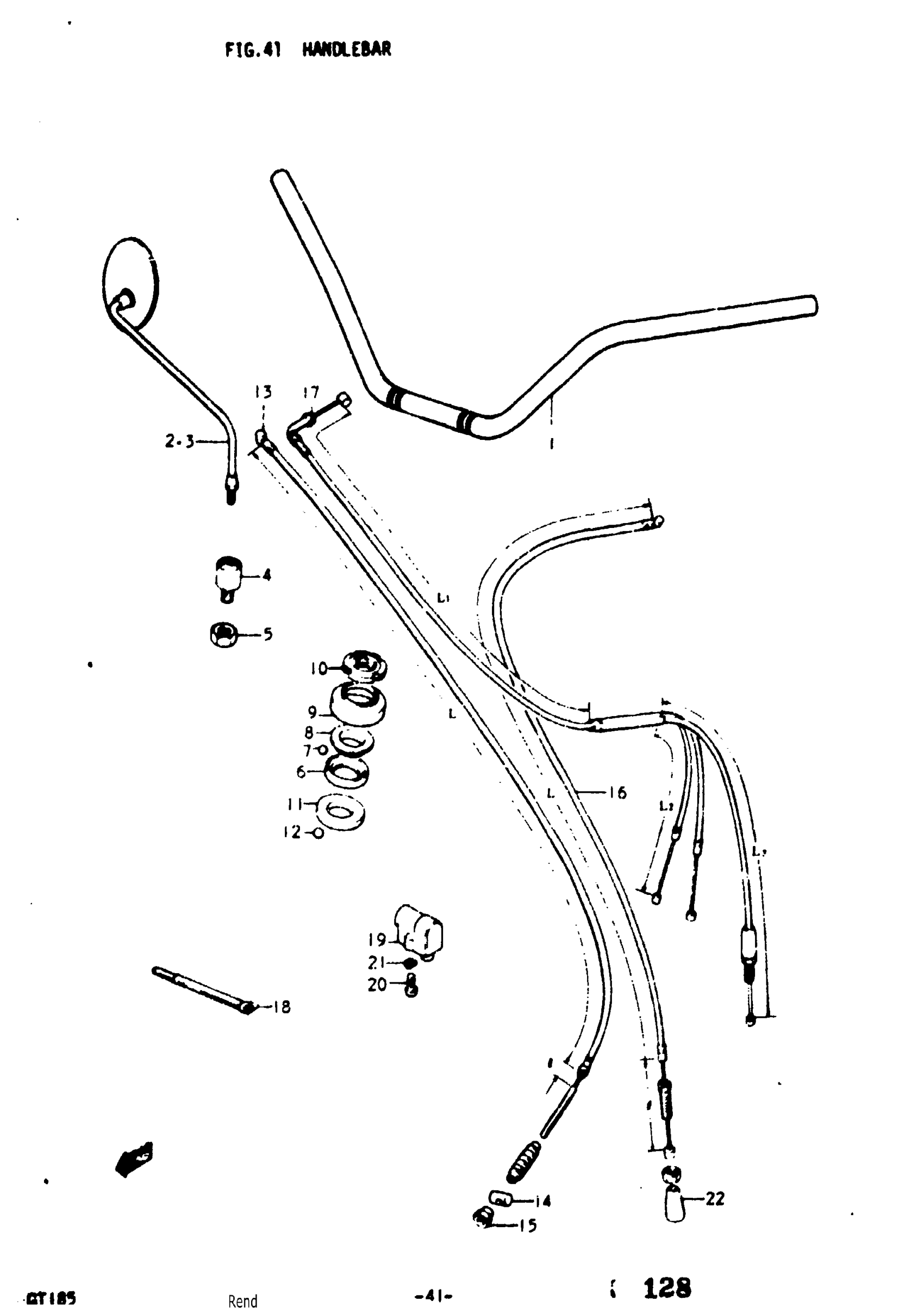

Suzuki GT185 (1977) HANDLEBAR Diagram

NO DESCRIPTION AVAILABLE | K,L,M,A,B This part replaces 56111-36000.

56111-39600

Unavailable

MIRROR ASSY,RR | K,L; SCREW This part replaces 56500-31010.

56500-23412

$70.29

MIRROR ASSY,RR | M,A,B; 10 SCREW This part replaces 56500-31011.

56500-31014

$48.02

MIRROR ASSY,RR | K,L; 8 SCREW This part replaces 56600-31010.

56600-23412

$82.68

MIRROR ASSY,RR | M,A,B; 10SCREW This part replaces 56600-31011.

56600-31014

$48.02

CUSHION, REAR VIEW MIRROR | K,L; 8SCREW This part replaces 56700-36000.

56700-32000

Unavailable

CUSHION, REAR VIEW MIRROR | M,A,B; 10SCREW FROM 56700-31000 This part replaces 56700-31001.

56700-45400

$21.90

NUT | K,L

09140-08009

Unavailable

NUT | M,A,B This part replaces 08312-32108.

08310-00107

$2.19

RACE,STEERING INNER UPPER | K,L,M,A,B

51611-20002

$11.95

STEEL BALL | K,L,M,A,B

06111-06003

$1.49

RACE,STEERING OUTER UPPER | K,L,M,A,B

51621-28000

$11.95

DUST SEAL,STEERING UPPER | K,L,M,A,B

51643-25001

$4.43

NUT, STEERING STEM | K,L,M,A,B

51631-28000

$17.37

RACE, STEERING INNER LOWER | K,L,M,A,B

51611-33002

$13.81

STEEL BALL | K,L,M,A,B

06111-08003

$1.49

NO DESCRIPTION AVAILABLE | K This part replaces 58110-36000.

58110-36001

Unavailable

.PIN (13X18) | K This part replaces 09209-13003.

09209-13018

$3.42

.NUT | K This part replaces 09150-06001.

09150-06010

$3.10

CABLE,CLUTCH | K,L,M,A,B; L:870, @:120 This part replaces 58200-36000.

58200-36001

Unavailable

CABLE, THROTTLE | K,L,M,A,B; L1:590, L2:210, L3:430 FROM 58300-36000

58300-36001

Unavailable

CLAMP | K This part replaces 09407-11302.

09407-18302

$2.28

LOCK ASSY, STEERING | K,L,M,A,B This part replaces 50000-25837.

51910-25311

$40.33

SCREW | K,L,M,A,B This part replaces 02111-05127.

02112-05127

$1.97

LOCK WASHER | K,L,M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

SEAL,DUST | K This part replaces 09287-07002.

09287-07006

$2.30
