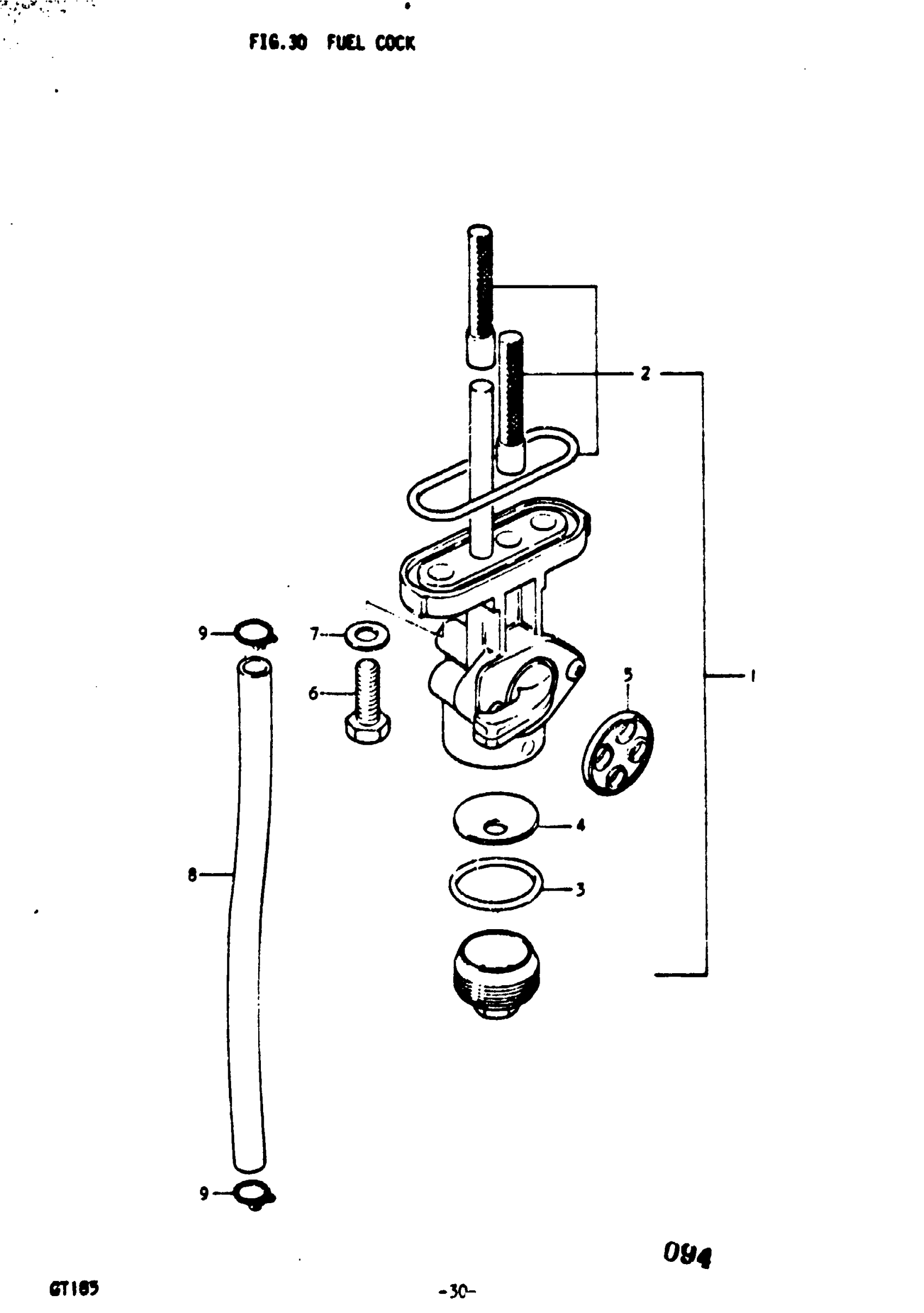

Suzuki GT185 (1977) FUEL COCK Diagram

#

Description
Price

1

COCK ASSY,FUEL | K,L; TO 44300-22571 This part replaces 44300-22570.

44300-13275

$45.80

1

COCK ASSY FUEL | M,A This part replaces 44300-28071.

44300-28604

Unavailable

1

COCK ASSY FUEL | B; Includes Item(s) 2 - 5 This part replaces 44300-28600.

44300-28604

Unavailable

2

FILTER SET | K,L,M,A,B This part replaces 44300-28817.

44300-28818

$10.50

3

O-RING | K,L,M,A,B This part replaces 44346-28070.

44346-28071

$2.40

4

CLEANER | K,L,M,A,B

44344-28070

Unavailable

5

GASKET,LEVER | M,A,B This part replaces 44341-28070.

44341-28071

$2.92

6

BOLT | K,L; L:20 This part replaces 09128-06006.

09128-06057

$1.65

6

SCREW | M,A; L:16 This part replaces 09128-06005.

02162-0616B

$2.03

6

SCREW | B This part replaces 09128-06002.

02162-0616B

$2.03

7

GASKET (5.8X13X1.2) | K,L,M,A,B This part replaces 09168-06010.

09168-06023

$2.35

8

HOSE,5X10X600 | K,L,M,A,B; 5x8.2x240 This part replaces 09343-05129.

44421-13ER0

$10.06

9

CLIP | K,L,M,A,B

09401-08401

$1.54
