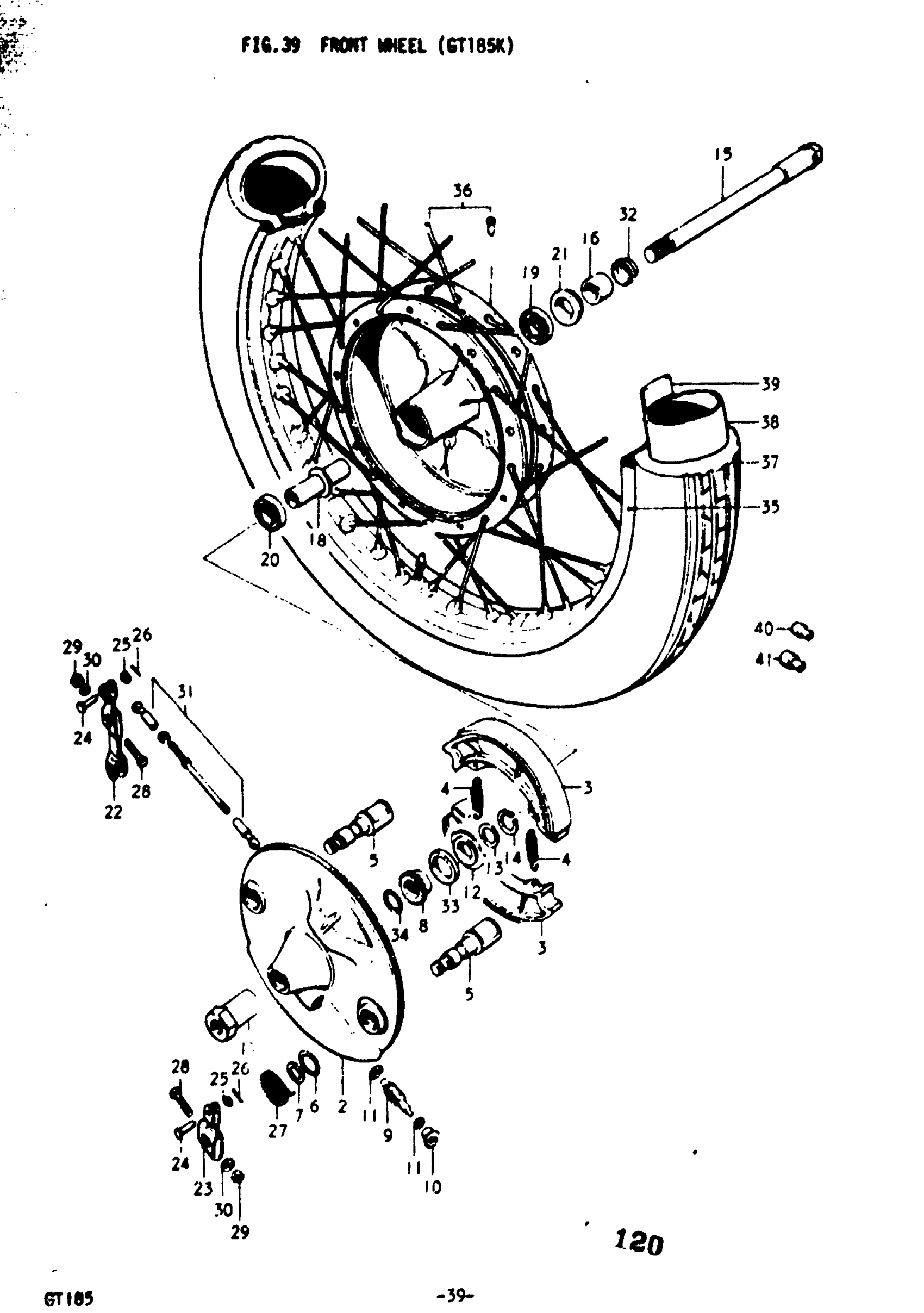

Suzuki GT185 (1977) FRONT WHEEL (GT185K) Diagram

#

Description
Price

1

DRUM

54110-08100

Unavailable

2

PANEL

54210-36000

Unavailable

3

SHOE, BRAKE

54410-08100

Unavailable

4

SPRING

55420-30000

$4.48

5

CAM, BRAKE | FROM 54440-11002 This part replaces 54440-11003.

64440-38A00

Unavailable

6

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

7

WASHER | 15x24x1.6 This part replaces 09160-15001.

09160-15048

$2.56

8

GEAR, SPEEDOMETER (NT:24) | NT:24 This part replaces 54611-36000.

54611-36001

Unavailable

9

PINION, SPEEDOMETER | NT:9

54621-11000

Unavailable

10

BUSH This part replaces 54632-11020.

54632-49200

Unavailable

11

WASHER,5.1X9X0. | 5.1x9x0.4 This part replaces 09160-05001.

09160-05001-A05

$1.87

12

DRIVER This part replaces 54660-11030.

54660-11031

$12.67

13

WASHER | 22.5x27x1

09160-22001

$2.47

14

CIRCLIP This part replaces 08331-11229.

08331-31229

$2.48

15

AXLE, FRONT

54711-36000

Unavailable

16

SPACER | 15x22x22.4

09180-15018

Unavailable

17

NUT

54721-36000

Unavailable

18

SPACER

54730-08100

Unavailable

19

BEARING

08113-60020

$16.01

20

BEARING, LH This part replaces 08143-62020.

08143-62027

$16.01

21

OIL SEAL

09284-22001

Unavailable

22

LEVER, BRAKE CAM A

54450-11000

Unavailable

23

LEVER, BRAKE CAM B

54461-11000

Unavailable

24

PIN

09200-06001

Unavailable

25

WASHER This part replaces 08322-21068.

08322-01067

$2.13

26

PIN This part replaces 04111-12108.

04111-1210A

$1.50

27

SPRING This part replaces 09448-30001.

09448-30001-XC0

Unavailable

28

BOLT, ADJUSTER | 6x31 This part replaces 09100-06050.

09100-06150

$2.30

29

.NUT This part replaces 08311-11068.

08310-00067

$2.13

30

WASHER This part replaces 08322-21068.

08322-01067

$2.13

31

BRAKE LEVER ROD SET This part replaces 54400-11835.

54400-18840

Unavailable

32

COVER, DUST SEAL

54892-33000

Unavailable

33

SEAL,OIL(26X38X This part replaces 09285-26001.

09285-26005

Unavailable

34

OIL SEAL

09289-06001

$4.58

35

RIM, WHEEL (1.60x18) | 1.60Ax18 This part replaces 65311-20120.

55311-05300

$129.50

36

SPOKE SET

55300-10810

Unavailable

37

TIRE, FRONT 2.75-18 (IRC) | 2.75-18 This part replaces 55100-36600.

55100-12B00

Unavailable

38

TUBE ASSY,WHEEL | 3.75-18 This part replaces 55200-11601.

55200-26F01

$31.27

39

IN TUBE PROTECT This part replaces 55261-11010.

55261-26F10

$4.39

40

BALANCER WHEEL (15G) | (0~3) This part replaces 55411-11000.

55411-26G00

$7.73

41

BALANCER WHEEL (30G) | (0~3) This part replaces 55412-11000.

55413-41F00

$7.50
