Partiron

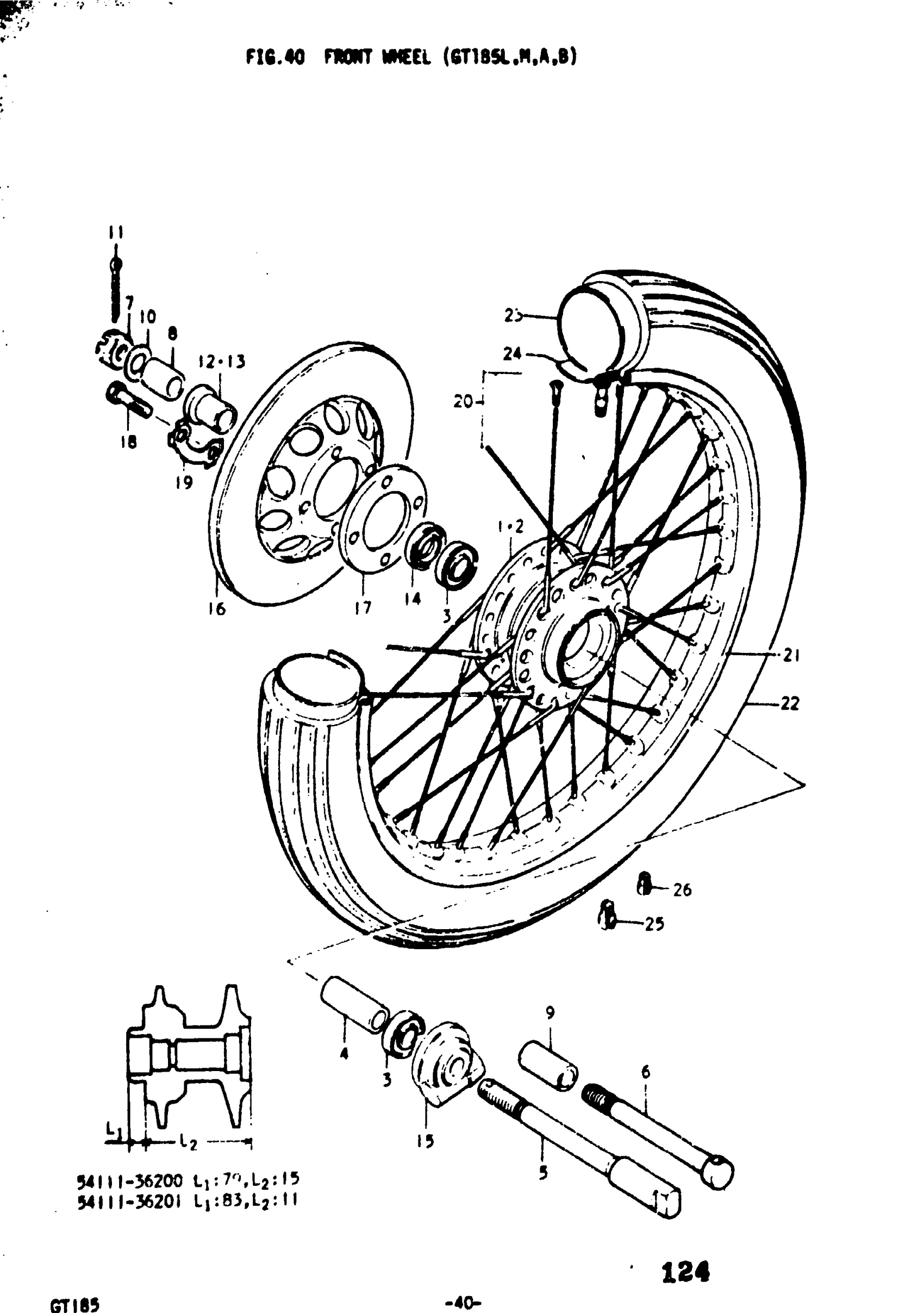

Suzuki GT185 (1977) FRONT HEEL (GT185L Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | L; TO 54111-36201 USED WITH 09100-08094 This part replaces 54111-36200.

54111-36202

Unavailable

2

NO DESCRIPTION AVAILABLE | L,M,A,B; NOT USE 59214-36200 This part replaces 54111-36201.

54111-36202

Unavailable

3

BEARING | L,M,A,B This part replaces 08123-63010.

08123-6301B

$14.10

4

SPACER (12.5X19X52) | L,M,A,B; 12x19x61 This part replaces 09180-12041.

09180-12144

$10.30

5

AXLE, FRONT | L; TO 54711-28303 USED WITH 09180-12062 AND 08322-21128 This part replaces 54711-36301.

54711-28303

Unavailable

6

AXLE, FRONT | M,A,B

54711-28303

Unavailable

7

NUT | L,M,A,B This part replaces 08314-31128.

08314-3112A

$2.41

8

SPACER, RH | L,M,A,B; 12x20x34.5

09180-12063

$7.30

9

SPACER, LH | M,A,B; 12x20x41

09180-12062

Unavailable

10

WASHER | LM,A,B This part replaces 08322-21128.

08322-01127

$1.84

11

PIN | L,M,A,B This part replaces 04111-30308.

04111-3030A

$1.49

12

SPACER | L; 24, l:25 TO 54740-36200 NOT USE09283-20025 This part replaces 09180-12060.

54740-36200

Unavailable

13

SPACER | L,M,A,B; NOT USE 09283-20025 36,l:25.5

54740-36200

Unavailable

14

OIL SEAL (20X37X7) | L

09283-20025

$5.64

15

BOX ASSY, SPEEDOMETER GEAR | L,M,A,B

54600-39000

Unavailable

16

NO DESCRIPTION AVAILABLE | L,M,A,B This part replaces 59211-36201.

59211-36202

Unavailable

17

SPACER | L

59214-36200

Unavailable

18

BOLT | L; 8x40

09100-08108

Unavailable

18

BOLT | L,M,A,B; 8x40

09100-08094

$2.71

19

WASHER | L,M,A,B

09169-08019

Unavailable

20

SPOKE SET | L; TO 55300-36820

55300-36810

Unavailable

20

SPOKE SET,FRONT | L,M,A,B This part replaces 55300-36820.

55320-36221

Unavailable

21

RIM, FRONT WHEEL | L,M,A,B; 1.60Ax18 This part replaces 55311-36320.

55311-18420

Unavailable

22

TIRE, FRONT 2.75-18 (IRC) | L,M,A,B; 2.75-18 This part replaces 55100-36600.

55100-12B00

Unavailable

23

TUBE ASSY,WHEEL | L,M,A,B; 2.75-18 This part replaces 55200-11601.

55200-26F01

$31.27

24

IN TUBE PROTECT | L,M,A,B; 22-18 This part replaces 55261-11010.

55261-26F10

$4.39

25

BALANCER WHEEL (15G) | (0~3) This part replaces 55411-11000.

55411-26G00

$7.73

26

BALANCER WHEEL (30G) | (0~3) This part replaces 55412-11000.

55413-41F00

$7.50
