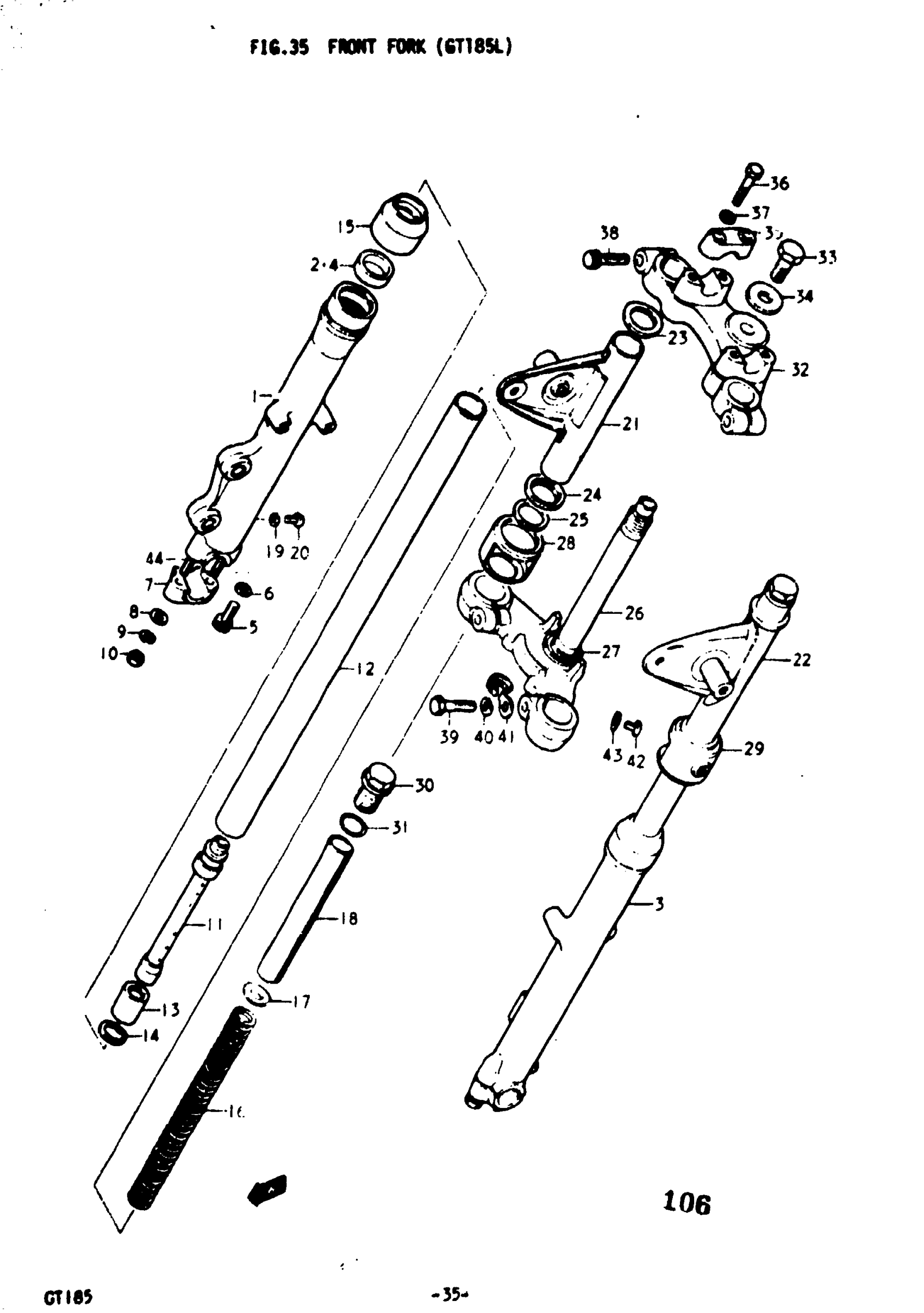

Suzuki GT185 (1977) FRONT FORK (GT185L) Diagram

#

Description
Price

FORK ASSY, FRONT | Includes Item(s) 1 - 25

51100-36311-019

Unavailable

1

OUTER TUBE, RH

51130-36311

Unavailable

2

OIL SEAL

51153-08011

Unavailable

3

OUTER TUBE, LH | TO 51140-36011 USED WITH 51132-16511

51140-36010

Unavailable

4

OIL SEAL

51153-08011

Unavailable

5

BOLT

51147-36010

Unavailable

6

O RING This part replaces 51148-34010.

51148-36011

$3.56

7

HOLDER, AXLE

51132-16510

Unavailable

8

WASHER This part replaces 08322-21088.

08322-01087

$2.13

9

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

10

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

11

CYLINDER

51146-36010

Unavailable

12

INNER TUBE

51111-36010

Unavailable

13

PISTON

51112-36010

Unavailable

14

CIRCLIP, FR SHAFT BEARING | TO 5118-36213 This part replaces 08331-41259.

51118-36213

$4.45

15

DUST SEAL

51173-25010

$7.19

16

SPRING

51171-36011

Unavailable

17

GUIDE, SPRING

51172-18630

Unavailable

18

SPACER

51176-18510

Unavailable

19

GASKET, DRAIN PLUG

51183-03010

$2.07

20

SCREW This part replaces 02111-04087.

02112-04087

$1.49

21

COVER, RH

51530-29621

Unavailable

22

COVER, LH

51540-29621

Unavailable

23

GUIDE, COVER UPPER

51551-20210

Unavailable

24

GUIDE, COVER LOWER

51551-25010

Unavailable

25

CUSHION, FORK COVER LOWER This part replaces 51553-25010.

51553-25210

$4.68

26

NO DESCRIPTION AVAILABLE | Includes Item(s) 27 - 44 This part replaces 51410-28013.

51410-36260

Unavailable

27

RACE, STEERING OUTER

51621-33001

$16.25

28

COVER, STEERING STEM RH

51554-36010

Unavailable

29

COVER, STEERING STEM LH

51557-36010

Unavailable

30

CAP | FROM 51351-25010

51351-25011

$27.97

31

O RING This part replaces 51181-25010.

51181-29401

$3.37

32

HEAD, STEERING STEM This part replaces 51311-28210-019.

51311-29320-291

Unavailable

33

BOLT This part replaces 51351-20010.

51351-29400

$31.22

34

WASHER

51356-22011

Unavailable

35

CLAMP, HANDLEBAR UPPER This part replaces 56211-27210-019.

56211-29320-291

$15.51

36

BOLT This part replaces 01221-08357.

01204-08357

$2.09

37

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

38

BOLT | CROWN BOLT TO 51451-15113

51451-15112

Unavailable

38

BOLT | HEXAPON BOLT This part replaces 51451-15113.

01104-10388

$2.72

39

BOLT | CHROME PLATED TO 51451-28012

51451-28011

Unavailable

39

BOLT | ZINC PLATED

51451-28012

Unavailable

40

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

41

CLIP

51455-36010

Unavailable

42

SCREW This part replaces 02112-06108.

02112-06107

$1.49

43

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

44

STUD BOLT (L:30) This part replaces 51137-31010.

09108-08142

$3.18
