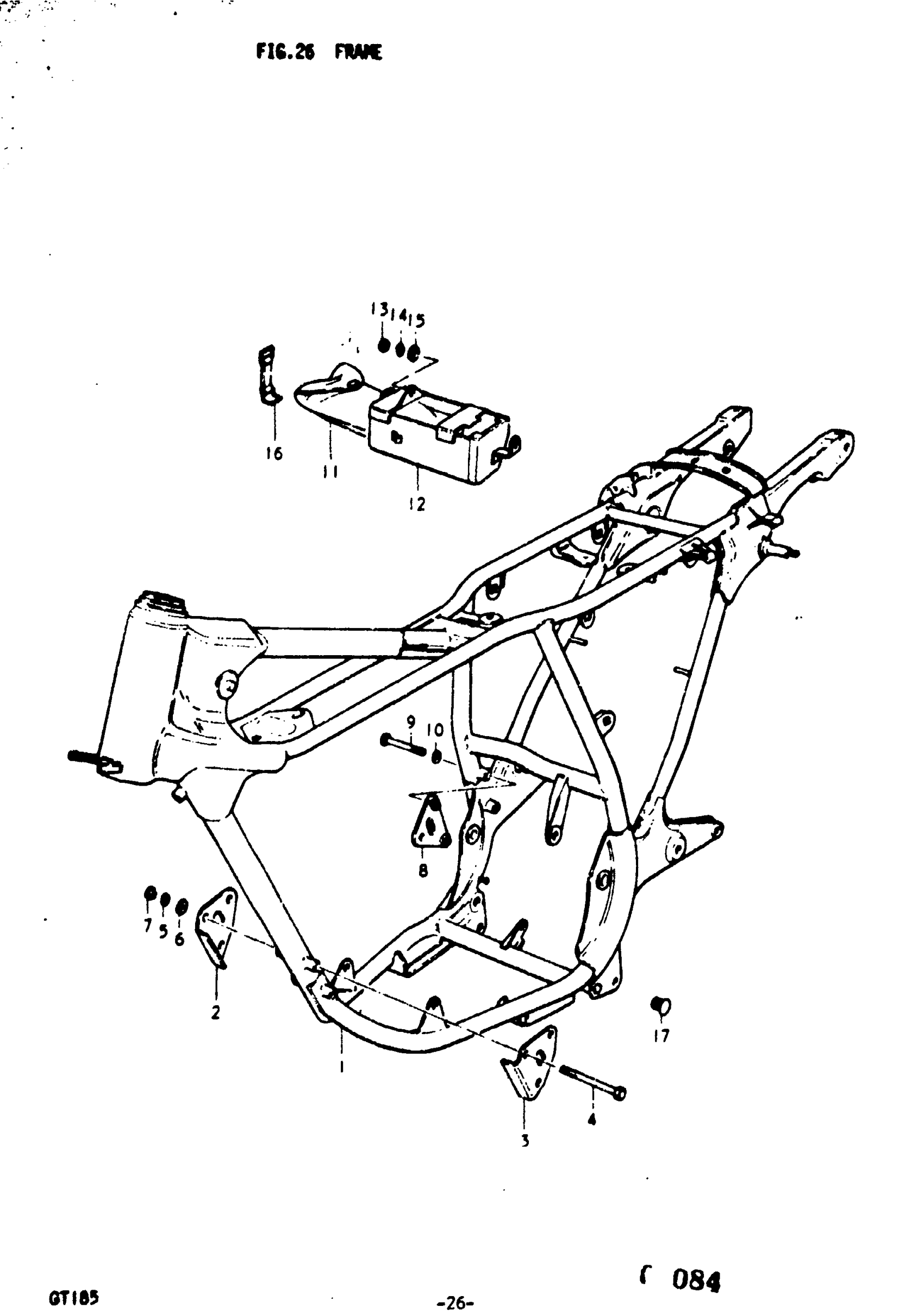

Suzuki GT185 (1977) FRAME Diagram

#

Description
Price

1

FRAME | K

41100-36000-019

Unavailable

1

FRAME | L,M; TO 41100-36002-019 This part replaces 41100-36001-019.

41100-36002-019

Unavailable

1

FRAME | A,B

41100-36002-019

Unavailable

2

PLATE, ENGINE MOUNTING RH | K,L,M,A,B

41591-36000

Unavailable

3

PLATE, ENGINE MOUNTING RH | K,L,M,A,B This part replaces 41592-36000.

41591-36000

Unavailable

4

BOLT | K,L,M,A,B This part replaces 01122-08758.

01500-0875B

$4.10

5

.LOCK WASHER | K,L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13

6

WASHER | K,L,M,A,B This part replaces 08322-21088.

08322-01087

$2.13

7

NUT | K,L,M,A,B This part replaces 08312-11088.

08310-00087

$2.13

8

PLATE, ENGINE MOUNTING REAR | K,L,M,A,B

41590-36000

Unavailable

9

BOLT | K,L,M,A,B This part replaces 01122-08558.

01500-08557

$3.16

10

.LOCK WASHER | K,L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13

11

TOOL ASSY | K,L,M,A,B This part replaces 09800-00108.

09800-21028

$33.02

12

HOLDER, TOOL | K,L,M,A,B

41550-36000

Unavailable

13

.NUT | K,L,M,A,B This part replaces 08311-11068.

08310-00067

$2.13

14

LOCK WASHER | K,L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

15

.WASHER | K,L This part replaces 08322-11068.

08322-0106B

$2.26

16

BAND | K,L,M,A,B This part replaces 09462-00041.

09462-00041-XC0

Unavailable

17

CAP | K,L,M This part replaces 09250-09001.

09250-09008

$1.54
