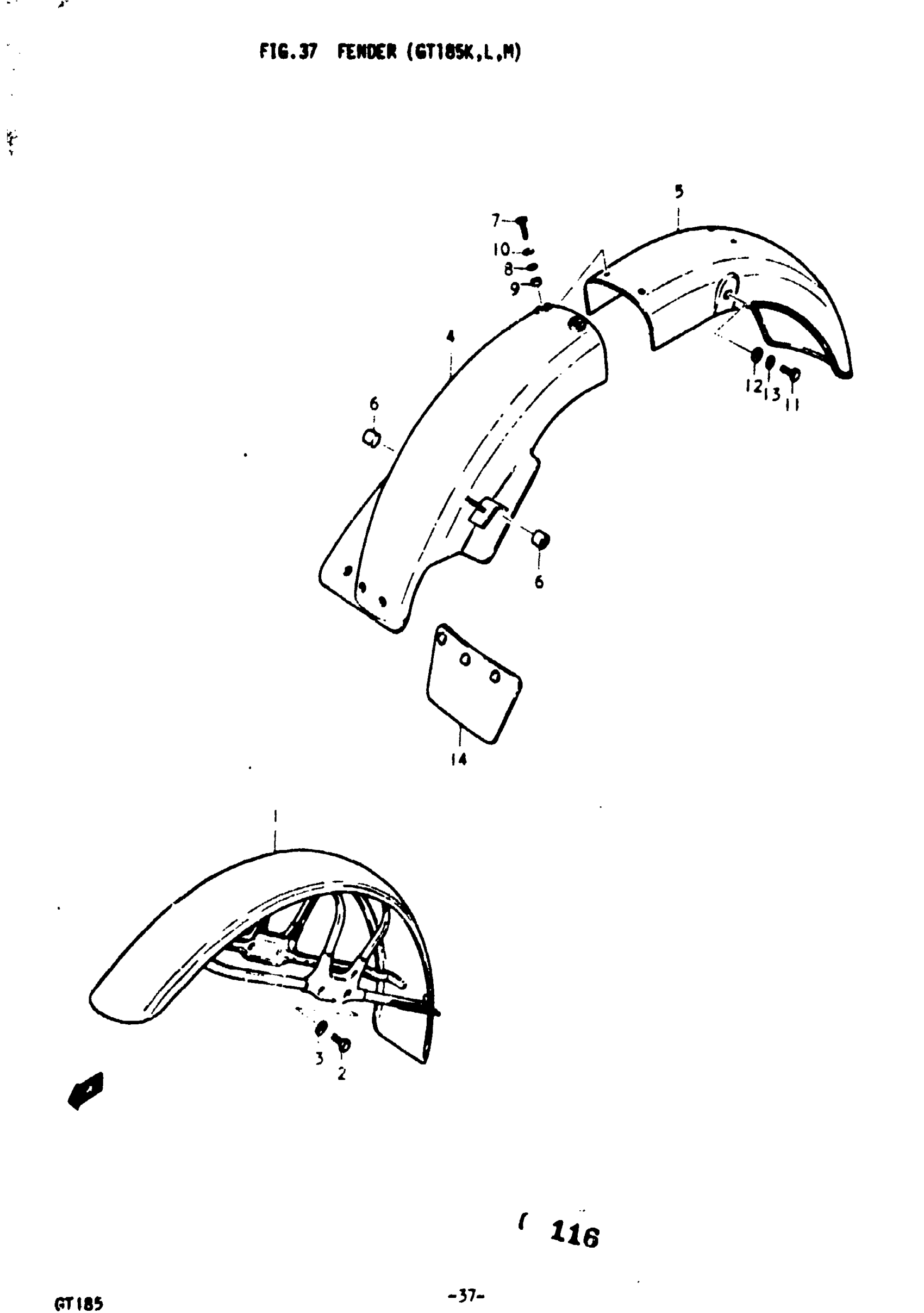

Suzuki GT185 (1977) FENDER (GT185K Diagram

#

Description
Price

1

FENDER, FRONT | K; TO 53110-36101

53110-36100

Unavailable

1

NO DESCRIPTION AVAILABLE | L,M; FROM 53110-36101 This part replaces 53110-36102.

53110-36631

Unavailable

2

PLUG, DRAIN | K,L,M; Includes Item(s) 3 This part replaces 01122-08168.

01500-0816B

$2.50

3

.LOCK WASHER | K,L,M This part replaces 08321-21088.

08321-01087

$2.13

4

NO DESCRIPTION AVAILABLE | K,L; TO 63110-36300 USED WITH 09180-06041 This part replaces 63112-36000.

63112-36002

Unavailable

4

NO DESCRIPTION AVAILABLE | L,M; TO 63112-36001 USED WITH 09250-12001 This part replaces 63110-36300.

63112-36002

Unavailable

5

FENDER, REAR | K,L,M; TO 63110-36001 This part replaces 63110-36000.

63110-36001

Unavailable

6

CUSHION | K,L,M This part replaces 09329-05003.

09329-05009

$2.37

7

BOLT | K,L,M This part replaces 01112-06208.

01500-06207

$2.28

8

WASHER | K,L,M This part replaces 08322-21068.

08322-01067

$2.13

9

SPACER | K,L; 7.6x10x5

09180-07007

Unavailable

9

SPACER | L,M; 6.5x20x5

09180-06041

Unavailable

10

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13

11

BOLT, REAR | K,L,M This part replaces 01122-08208.

01500-08207

$2.53

12

WASHER | K,L,M This part replaces 08322-21088.

08322-01087

$2.13

13

.LOCK WASHER | K,L,M This part replaces 08321-21088.

08321-01087

$2.13

14

MUD GUARD | K,L,M

63411-33000

Unavailable
