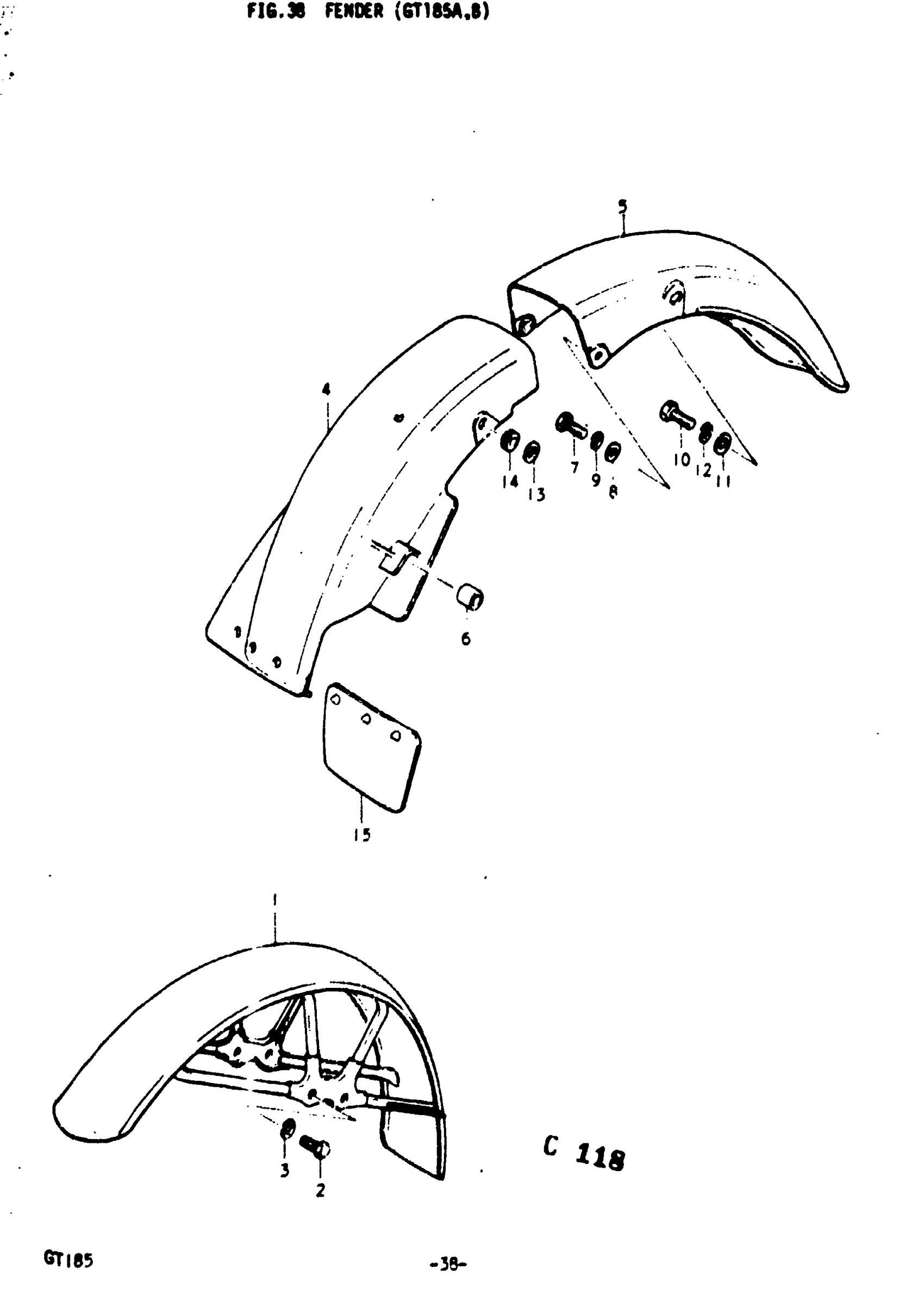

Suzuki GT185 (1977) FENDER (GT185A Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | A,B; FROM 53110-36101 This part replaces 53110-36102.

53110-36631

Unavailable

2

PLUG, DRAIN | A,B This part replaces 01122-08168.

01500-0816B

$2.50

3

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

4

NO DESCRIPTION AVAILABLE | A,B This part replaces 63112-36001.

63112-36002

Unavailable

5

FENDER, REAR | A,B

63110-36001

Unavailable

6

CUSHION | A,B This part replaces 09329-05003.

09329-05009

$2.37

7

BOLT | A,B This part replaces 01112-06128.

01500-06127

$1.97

8

WASHER | A,B This part replaces 08322-21068.

08322-01067

$2.13

9

LOCK WASHER | A,B This part replaces 08321-21068.

08321-01067

$2.13

10

BOLT, REAR | A,B This part replaces 01122-08208.

01500-08207

$2.53

11

WASHER | A,B This part replaces 08322-21088.

08322-01087

$2.13

12

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

13

WASHER | A,B This part replaces 09160-06007.

09160-06084

$1.78

14

CUSHION | A,B This part replaces 09320-05006.

09320-06504

$4.96

15

MUD GUARD | A,B

63411-33000

Unavailable
