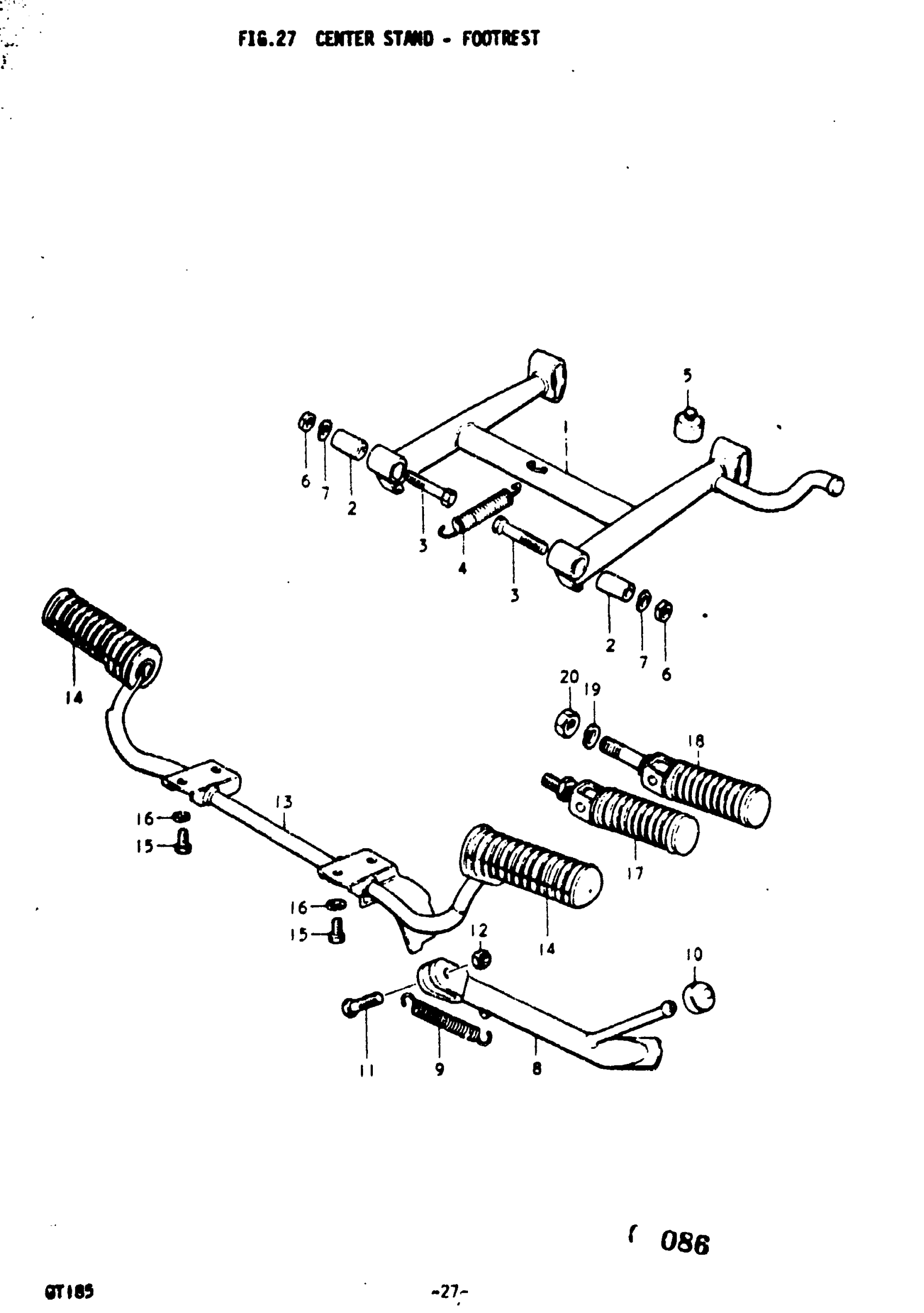

Suzuki GT185 (1977) CENTER STAND - FOOTREST Diagram

#

Description
Price

1

STAND, CENTER | K,L,M,A,B

42100-36000

Unavailable

2

SPACER | K,L,M,A,B

09180-10001

$3.58

3

BOLT | K,L,M,A,B; 10x48

09100-10006

Unavailable

4

SPRING | K,L,M,A,B This part replaces 09443-16005.

09443-16005-XC0

Unavailable

5

CUSHION | K,L,M,A,B

09321-10001

$2.61

6

NUT | K,L,M,A,B This part replaces 08312-12108.

08310-00107

$2.19

7

LOCK WASHER | K,L,M,A,B This part replaces 08321-21108.

08321-01107

$1.84

8

STAND, PROP | K,L,M,A,B

42310-36000

Unavailable

9

SPRING | K,L,M,A,B This part replaces 09443-14005.

09443-14017

$3.04

10

CUSHION | K,L,M,A,B

09320-07001

$2.92

11

BOLT | K,L,M,A,B; 10x27 This part replaces 09100-10007.

09100-10287

$3.48

12

NUT | K,L,M,A,B This part replaces 08312-32108.

08310-00107

$2.19

13

BAR, FRONT FOOTREST | K,L,M,A,B

43510-36000

Unavailable

14

RUBBER | K,L,M,A,B

43551-36000

$20.10

15

BOLT | K,L,M,A,B This part replaces 01122-08128.

01500-08127

$2.62

16

.LOCK WASHER | K,L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13

17

FOOTREST, ASSY, PILLION | K,L; 10SCREW

43600-36000

Unavailable

18

FOOTREST ASSY, PILLION | M,A,B; 12SCREW

43600-36200

Unavailable

19

LOCK WASHER | M This part replaces 08321-21128.

08321-01127

$2.06

20

NUT, FIXED DRIVE FACE | M,A,B This part replaces 08312-31128.

09140-12039

$3.05
