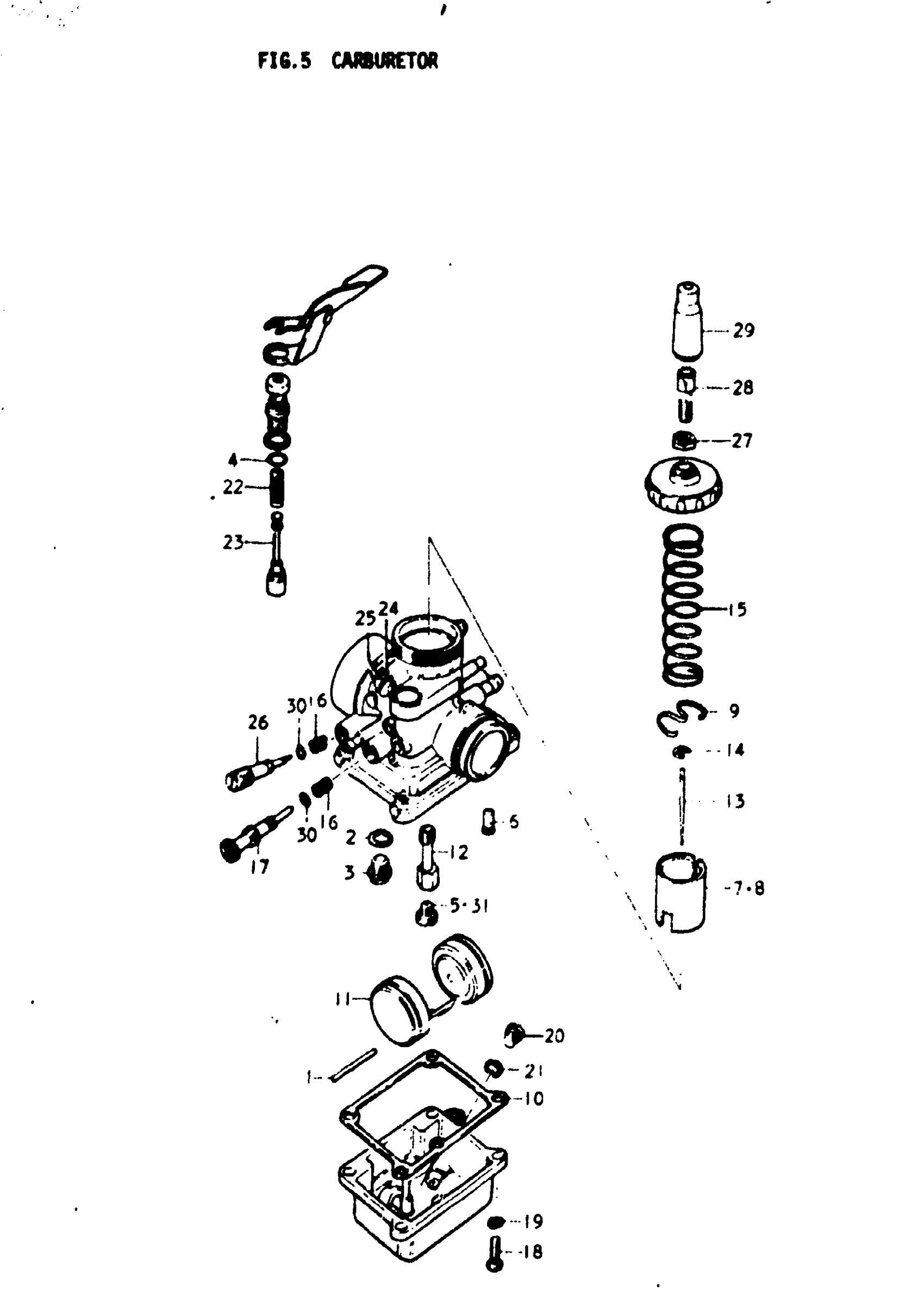

Suzuki GT185 (1977) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY, RH | K,L; FROM 13201-36110

13201-36111

Unavailable

CARBURETOR ASSY, RH | M,AB; FROM 13201-36600

13201-36601

Unavailable

CARBURETOR ASSY, LH | K,L; FROM 13202-36110

13202-36111

Unavailable

CARBURETOR ASSY, LH | M,A

13202-36600

Unavailable

CARBURETOR ASSY, LH | B; FROM 13202-36600; Includes Item(s) 1 - 30

13202-36601

Unavailable

1

PIN, FLOAT | K,L,M,A

13254-11010

Unavailable

1

.PIN, FLOAT | B; FROM 13254-11010 This part replaces 13254-35013.

13254-01010

$3.62

2

GASKET, STARTER VALVE SEAT | K,L,M,A,B

13392-01010

$2.15

3

VALVE ASSY, NEE | K,L,M,A,B This part replaces 13370-36110.

13370-36210

Unavailable

4

O RING | K,L,M,A,B This part replaces 13295-15010.

09280-08014

$1.89

5

JET, MAIN | K,L,M,A; #72.5

09491-72005

Unavailable

5

NO DESCRIPTION AVAILABLE | B; #72.5 FROM 09491-72005 This part replaces 09491-72009.

09491-72012

Unavailable

6

JET, PILOT (20) | K,L,M,A,B; #20 This part replaces 09492-20002.

09492-20008

$10.97

7

VALVE, THROTTLE LH | K,L; CA:1.5

13561-36110

Unavailable

7

VALVE, THROTTLE LH | M,A,B; CA:2.0

13561-36600

Unavailable

8

VALVE, THROTTLE RH | K,L; CA:1.5

13551-36110

Unavailable

8

VALVE, THROTTLE RH | M,A,B; CA:2.0

13551-36600

Unavailable

9

SEAT, THROTTLE VALVE SPRING | K,L,M,A,B; FROM 15581-10010

13581-36600

Unavailable

10

GASKET, FLOAT CHAMBER | K,L,M,A,B

13251-36110

Unavailable

11

FLOAT | K,L,M,A,B

13252-36110

Unavailable

12

NOZZLE, NEEDLE | K,L; N-5

09494-00127

Unavailable

12

NOZZLE, NEEDLE | M,A,B; N-4

09494-00148

Unavailable

13

NEEDLE, JET | K,L,M,A,B; 401; 7-3

13383-36110

Unavailable

14

CLIP, NEEDLE | K,L,M,A,B

13394-10010

$5.45

15

SPRING, THROTTLE VALVE RETURN | K,L,M,A,B

13573-36110

$6.20

16

SPRING, STOP SCREW & PILOT AI | K,L,M,A,BR

13268-35010

$4.48

17

SCREW, THROTTLE STOP | K,L,M,A,B; FROM 13267-36110

13267-36600

$12.17

18

SCREW | K,L,M,A,B This part replaces 02111-04168.

02112-0416A

$1.49

19

LOCK WASHER | K,L,M,A,B This part replaces 08321-21048.

08321-0104A

$1.84

20

PLUG, DRAIN | K,L,M,A,B; FROM 13247-05010

13247-05010

$5.11

21

GASKET, DRAIN PLUG | K,L,M,A,B

13249-05010

$1.98

22

SPRING, STARTER VALVE LH | K,L,M,A,B

13417-18630

$6.00

23

VALVE, STARTER LH | K,L,M,A,B; FROM 13411-36110

13411-18010

Unavailable

24

WASHER, RH | K,L,M,A,B

13663-31010

$2.80

25

SCREW, PLUG RH | K,L,M,A,B; FROM 13664-31010

13664-18654

$8.98

26

SCREW, PILOT AIR ADJUSTING | K,L This part replaces 13269-31010.

13269-15010

Unavailable

26

SCREW, PILOT AIR | M,A,B; FROM 13269-31011

13269-15011

Unavailable

27

NUT, ADJUSTER | K,L,M,A,B

13661-16600

$4.64

28

ADJUSTER | K,L,M,A,B This part replaces 13577-03010.

13577-48110

$8.30

29

BOOT | K,L,M,A,B

13681-33010

$9.32

30

O RING | K,LM,A,B

13295-33010

$4.48

31

NO DESCRIPTION AVAILABLE | K,L,M,A; #70 OPT This part replaces 09491-70005.

09491-70010

Unavailable

31

JET, PILOT AIR (70) | B; #70 OPT This part replaces 09491-70009.

09491-70012

$11.60

31

NO DESCRIPTION AVAILABLE | K,L,M,A,B; #75 OPT This part replaces 09491-75005.

09491-75009

Unavailable

31

JET, MAIN | K,L,M,A; #77.5 OPT

09491-77001

Unavailable

31

JET, MAIN (75) | B; #77.5 OPT This part replaces 09491-77003.

09491-77005

$11.83

31

JET, MAIN | K,L,M,A; #80 OPT

09491-80005

Unavailable

31

JET, MAIN (180) | B; #80 OPT This part replaces 09491-80007.

09491-80008

Unavailable

31

JET, MAIN (85) | K,L,M,A,B; #85 OPT This part replaces 09491-85004.

09491-85008

$12.13

31

JET, MAIN (90) | K,L,M,A,B; #90 OPT This part replaces 09491-90003.

09491-90007

$11.83
