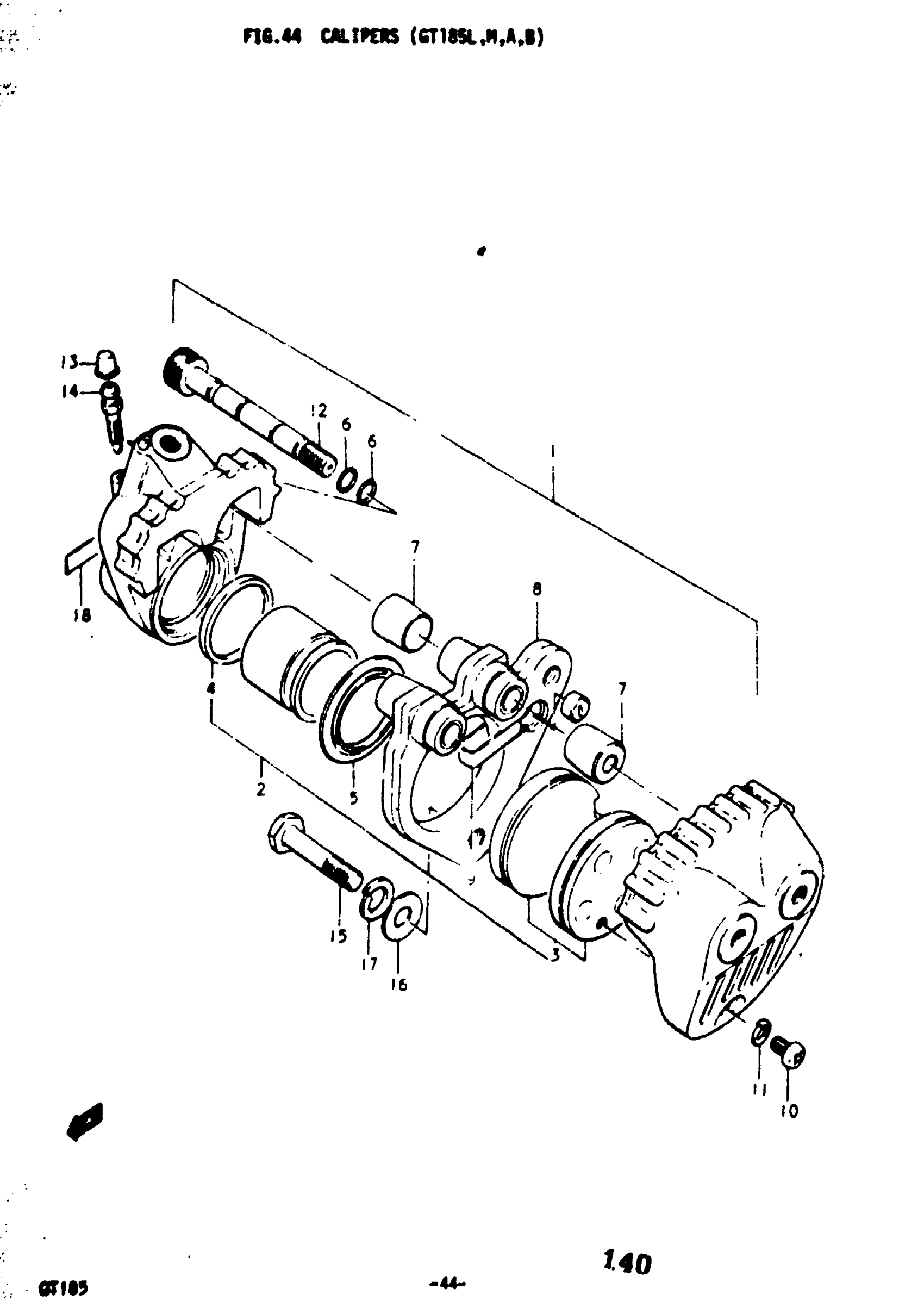

Suzuki GT185 (1977) CALIPERS (GT185L Diagram

#

Description
Price

1

CALIPERS ASSY | L,M,A,B; FROM 59100-36210; Includes Item(s) 2 - 14

59100-36211

Unavailable

2

NO DESCRIPTION AVAILABLE | L,M,A,B This part replaces 59100-36820.

59100-36821

Unavailable

3

NO DESCRIPTION AVAILABLE | L,M,A,B This part replaces 59100-36830.

59300-36840

Unavailable

4

SEAL,PISTON | L,M,A,B This part replaces 59107-18410.

69107-05CF0

$9.07

5

BOOT, PISTON | L,M,A,B

59108-18410

Unavailable

6

O RING, CALIPARS AXLE | L,M,A,B

59111-18410

Unavailable

7

DUST SEAL, AXLE | L,M,A,B

59112-18410

Unavailable

8

HOLDER, CALIPERS | L,M,A,B

59150-18411

Unavailable

9

STOPPER, CALIPERS HOLDER | L,M,A,B

59153-18410

Unavailable

10

SCREW | L,M,A,B This part replaces 02112-06128.

02112-06127

$1.84

11

LOCK WASHER | L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

12

AXLE, CALIPERS | L

59105-18410

Unavailable

12

AXLE, CALIPERS | M,A,B; FROM 59105-18410

59105-18411

Unavailable

13

CAP, BLEEDER | L,M,A,B This part replaces 59122-18410.

55156-66310

$5.17

14

BLEEDER | L,M,A,B

59121-18410

$8.73

15

BOLT (10X38) | L,M,A,B This part replaces 09104-10007.

09104-10029

$3.55

16

WASHER | L,M,A,B This part replaces 08322-21108.

08322-01107

$2.15

17

LOCK WASHER | L,M,A,B This part replaces 08321-21108.

08321-01107

$1.84

18

EMBLEM | L,M,A,B

68334-18400

Unavailable
