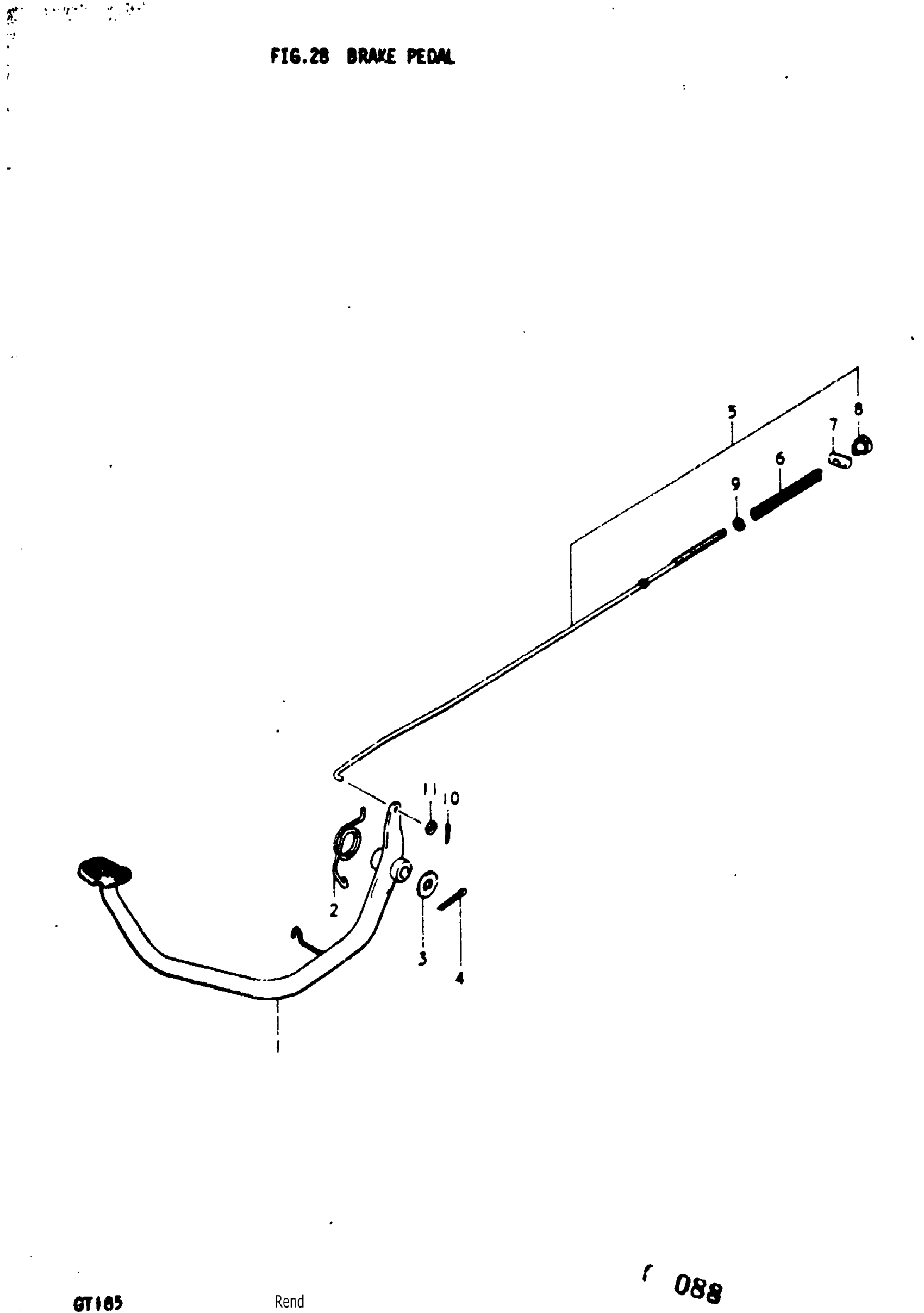

Suzuki GT185 (1977) BRAKE PEDAL Diagram

#

Description
Price

1

PEDAL, BRAKE | K,L,M,A,B

43110-36000

Unavailable

2

SPRING | K,L,M,A,B

09448-31011

Unavailable

3

WASHER | K,L,M,A,B; 15.5x26x2.3

09160-15002

$1.91

4

PIN | K,L,M,A,B This part replaces 04111-30308.

04111-3030A

$1.49

5

ROD ASSY, REAR BRAKE | K,L; L:536 TO 43300-36001

43300-36000

Unavailable

5

ROD ASSY, RR BR | L,M,A,B; L:53:; Includes Item(s) 6 - 11 This part replaces 43300-36001.

43300-36010

Unavailable

6

SPRING | K,L,M,A,B

09440-09004

$2.20

7

PIN | K,L,M,A,B

09209-11002

$2.19

8

.NUT | K,L,M,A,B This part replaces 09150-06001.

09150-06010

$3.10

9

WASHER | K,L,M,A,B This part replaces 08322-21058.

08322-01057

$2.13

10

COTTER PIN | K,L,M,A,B This part replaces 04111-20208.

04111-2020A

$1.49

11

WASHER | K,L,M,A,B This part replaces 08322-21068.

08322-01067

$2.13
