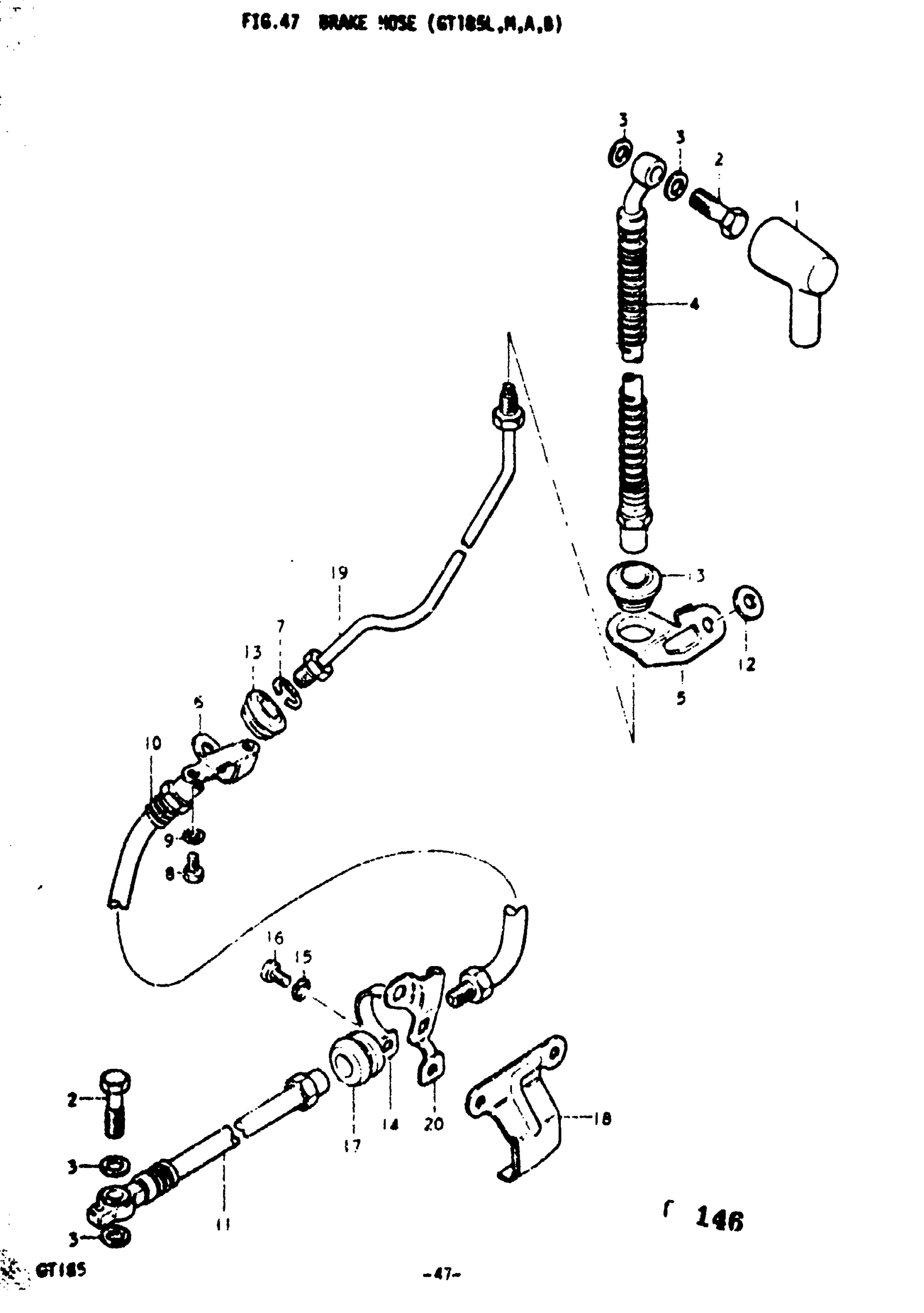

Suzuki GT185 (1977) BRAKE HOSE (GT185L Diagram

#

Description
Price

1

BOOT, MASTER CYLINDER | L,M,A,B This part replaces 59711-18400.

59711-49001

$7.51

2

UNION | L,M,A,B This part replaces 09360-10003.

09360-10017

$3.42

3

WASHER (10X15X1.5) | L,M,A,B This part replaces 09161-10005.

09161-10009

$1.84

4

HOSE, BRAKE (1) | L,M; TO 59480-36211 This part replaces 59480-36210.

59480-36211

Unavailable

4

HOSE, BRAKE (1) | L,M,A,B

59480-36211

Unavailable

5

NO DESCRIPTION AVAILABLE | L,M,A,B This part replaces 59243-36200.

59243-36201

Unavailable

6

GUIDE, BRAKE HOSA (2) | L,M,A,B

51266-36200

Unavailable

7

E-RING, BUSH | L,M,A,B This part replaces 08332-11098.

08332-1109A

$1.80

8

BOLT | L,M,A,B This part replaces 01112-06108.

01500-06107

$2.06

9

LOCK WASHER | L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

10

NO DESCRIPTION AVAILABLE | L,M; TO 59240-36211 This part replaces 59240-36210.

59240-36212

Unavailable

10

NO DESCRIPTION AVAILABLE | A,B This part replaces 59240-36211.

59240-36212

Unavailable

11

HOSE, BRAKE (3) | L,M; FROM 59520-36210 TO 59520-36212 This part replaces 59520-36211.

59520-36212

Unavailable

11

HOSE, BRAKE (3) | A,B

59520-36212

Unavailable

12

WASHER | A,B This part replaces 09160-06031.

09160-06125

$1.91

13

GROMMET,BRAKE H | L,M,A,B This part replaces 59244-36200.

59244-36201

$4.00

14

CLAMP, BRAKE HOSE | L,M,A,B

59268-36200

Unavailable

15

LOCK WASHER | L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

16

FRM CVR,SCREW(6 | L,M,A,B This part replaces 09128-06011.

09128-06092

$1.92

17

BUSHING | L,M,A,B

09305-14003

Unavailable

18

COVER, BRAKE HOSE | L,M,A,B

59281-36200

Unavailable

19

PIPE, BRAKE | L,M,A,B

59250-36220

Unavailable

20

GUIDE, BRAKE | L,M,A,B

59270-36200

Unavailable
