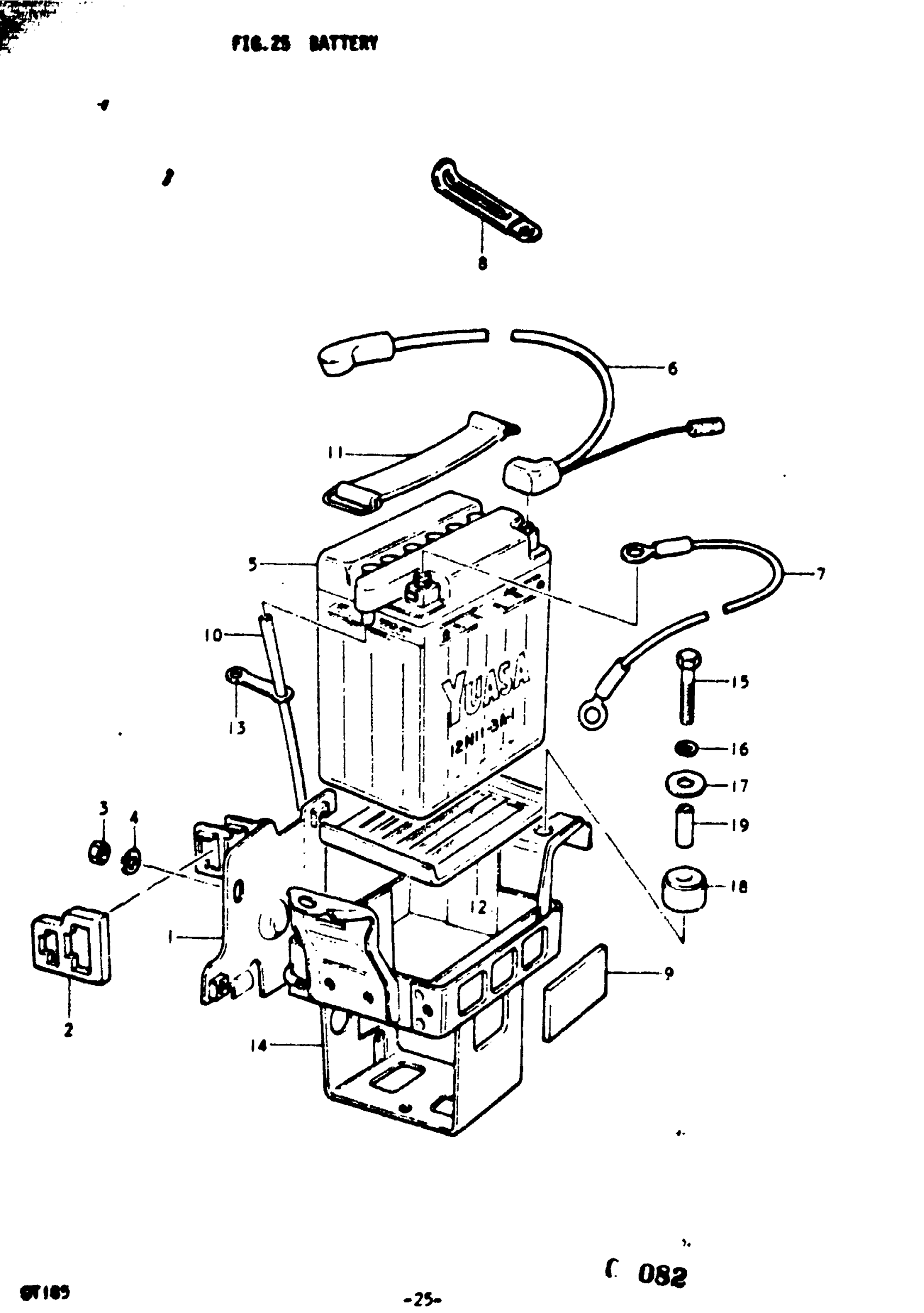

Suzuki GT185 (1977) BATTERY Diagram

#

Description
Price

1

PLATE, ELECTRIC PARTS HOLDER | K,L,M,A,B

37900-36100

Unavailable

2

SPACER | K,L,M,A,B

37912-36000

Unavailable

3

.NUT | K,L,M,A,B This part replaces 08311-11068.

08310-00067

$2.13

4

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13

5

BATTERY | K,L,M,A,B; 12V, 11AH

33610-34010

Unavailable

6

LEAD WIRE (+) | K,L,M,A,B

36861-36100

Unavailable

7

LEAD WIRE (-) | K,L,M,A,B

33850-08300

Unavailable

8

CLAMP | K,L,M,A,B This part replaces 09404-06402.

09404-06039

$1.74

9

PROTECTOR, BATTERY | K,L

33652-36000

$2.30

9

PROTECTOR, BATTERY | M,A,B

33652-38000

Unavailable

10

HOSE,BATTERY EX | K; TO 33680-31002 This part replaces 33680-34000.

33680-16A11

$6.78

10

HOSE,BATTERY EX | L,M,A,B This part replaces 33680-31003.

33680-16A11

$6.78

11

BAND | K,L,M,A,B

09462-00007

$4.11

12

CUSHION | K,L,M,A,B

33651-36100

Unavailable

13

CLAMP | K,L,M,A,B

09404-07704

Unavailable

14

HOLDER, BATTERY | K,L,M,A,B

41540-36100

Unavailable

15

BOLT, REAR | K,L,M,A,B This part replaces 01112-06308.

01500-06307

$2.48

16

LOCK WASHER | K,L,M,A This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER | K,L,M,A,B; 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.78

18

CUSHION | K,L,M,A,B

09320-08011

$3.54

19

SPACER (6.1X8X15.5) | K,L,M,A,B; 6.1x8x15.5 This part replaces 09180-06040.

09180-06251

$2.44
