1987 Suzuki GSXR50 Transmission Diagram

← All diagrams

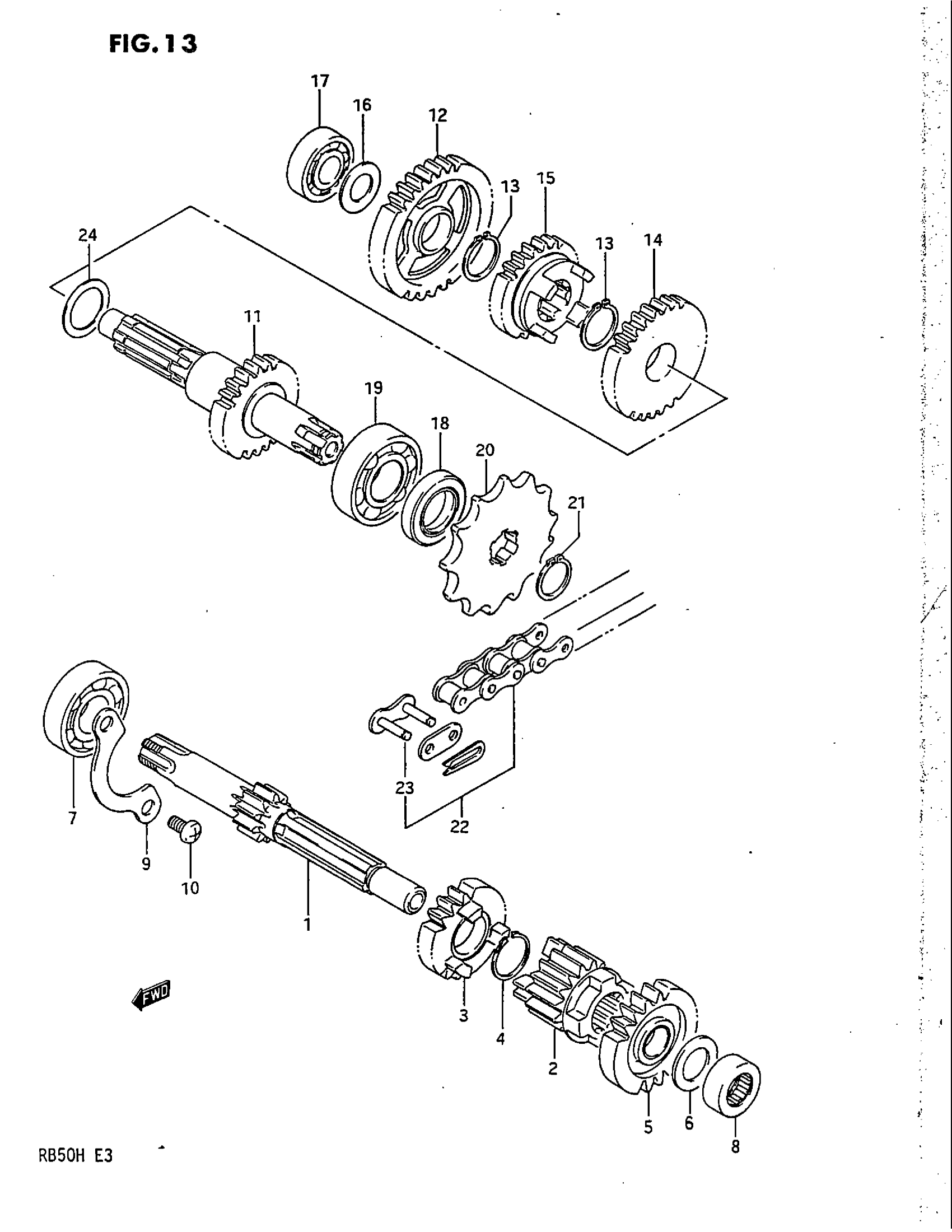

Find the part on the Transmission diagram for your 1987 Suzuki GSXR50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki GSXR50 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, COUNTER (NT:10)

24121-28B00

1
Out of stock

2

GEAR, 2ND DRIVE (NT:15)

24221-28B00

1
Out of stock

3

GEAR, 3RD DRIVE (NT:19)

24231-28B00

1
Out of stock

4

CIRCLIP

09380-16004

1
Out of stock

5

GEAR, 4TH DRIVE (NT:21)

24240-28B00

1
Out of stock

6

THRUST WASHER

08211-12241

1

$2.23

In stock

7

BEARING

08110-62030

1
Out of stock

8

BEARING (12X19X12)

09263-12014

1

$12.21

In stock

9

RETAINER, BEARING

24741-09401

1
Out of stock

10

2

$1.55

In stock

11

SHAFT, DRIVE (NT:23)

24131-28B01

1
Out of stock

12

GEAR, 1ST DRIVEN (NT:34)

24311-09402

1
Out of stock

13

2

$2.03

In stock

14

GEAR, 2ND DRIVEN (NT:29)

24321-09402

1
Out of stock

15

GEAR, 3RD DRIVEN (NT:25)

24331-28B00

1
Out of stock

16

THRUST WASHER

08211-12241

1

$2.23

In stock

17

1

$9.97

In stock

19

BEARING (17X40X12)

09262-17023

1

$21.00

In stock

20

SPROCKET, ENGINE (NT:14)

27511-19700

1
Out of stock

21

CIRCLIP

08331-31169

1
Out of stock

22

CHAIN ASSY,DRIV | Includes Item(s) 23 This part replaces 27600-46721.

27600-01012-130

1
Out of stock

23

JOINT (RK)

27620-01023

1
Out of stock

23

JOINT (DID)

27620-01012

1

$7.75

In stock

24

THRUST WASHER

08211-17221

1
Out of stock
