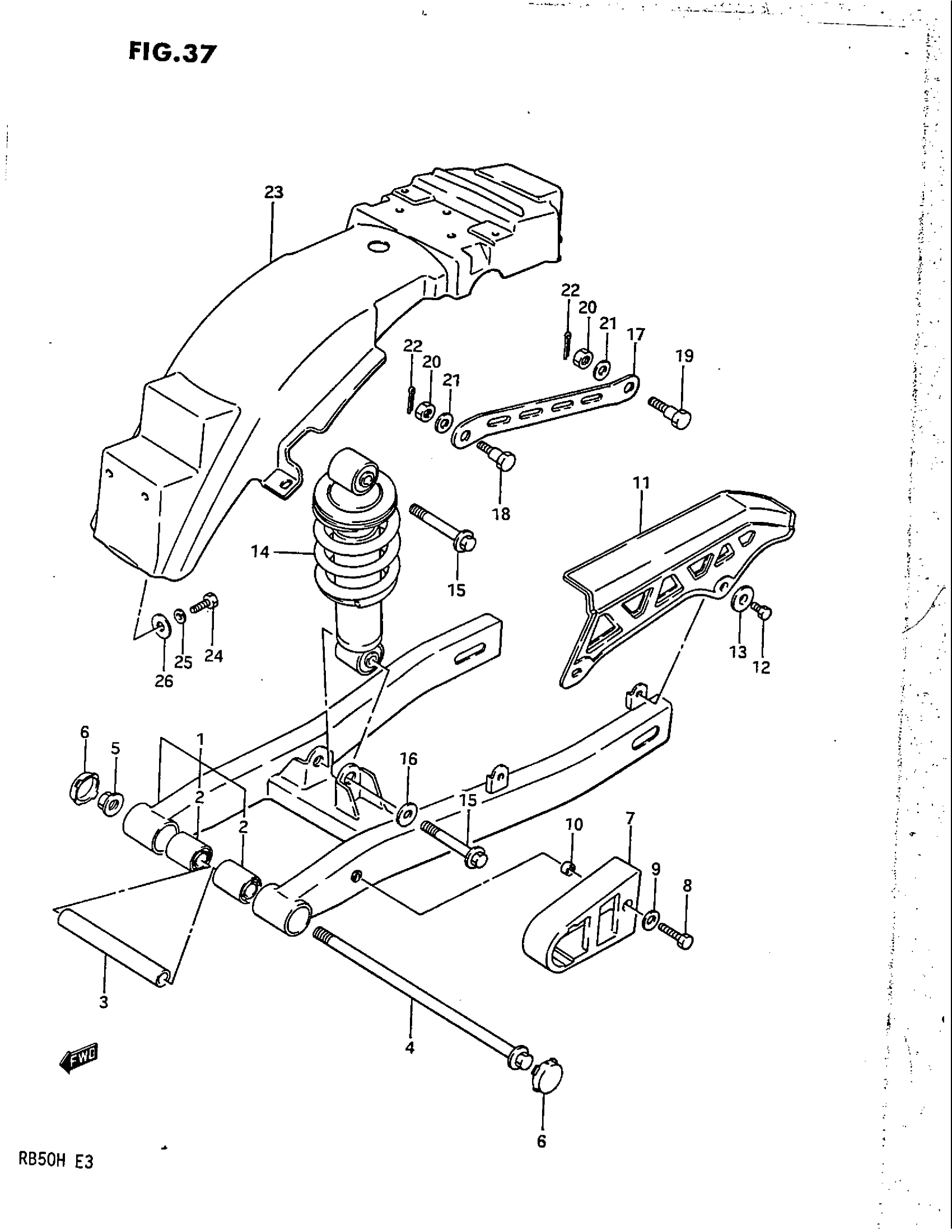

Suzuki GSXR50 (1987) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM SET, REAR | SILVER; Includes Item(s) 2

61100-28880-13L

Unavailable

2

BUSH

09319-10009

$7.62

3

SPACER

09180-10112

Unavailable

4

SHAFT

61211-28B00

Unavailable

5

NUT

08319-31107

$2.73

6

CAP

61222-04702

Unavailable

7

BUFFER, CHAIN TOUCH DIFENSE

61273-28B00

Unavailable

8

BOLT, GEAR SHIFT LINK This part replaces 01107-06206.

01500-0620A

$1.78

9

WASHER (6.5X16X1.2)

09160-06019

$1.49

10

SPACER (6.5X9X3.8) This part replaces 09180-06142.

09180-06255

$2.53

11

CHAIN CASE

61311-28B00

Unavailable

12

BOLT, PLATE (6X8) This part replaces 09100-06092.

09100-06157

$2.72

13

WASHER

09169-06026

$2.20

14

ABSORBER ASSY, REAR SHOCK

62100-28B00

Unavailable

15

BOLT

62311-03400

Unavailable

16

WASHER This part replaces 08322-21108.

08322-01107

$2.15

17

TORQUE LINK, REAR

64311-28B00

Unavailable

18

BOLT, FRONT

09111-08015

$3.16

19

BOLT

09111-08013

$3.04

20

NUT

09140-08008

$1.49

21

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

22

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

23

FENDER, REAR

63111-28B00

Unavailable

24

BOLT This part replaces 01107-06127.

01500-06127

$1.97

25

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

26

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91
