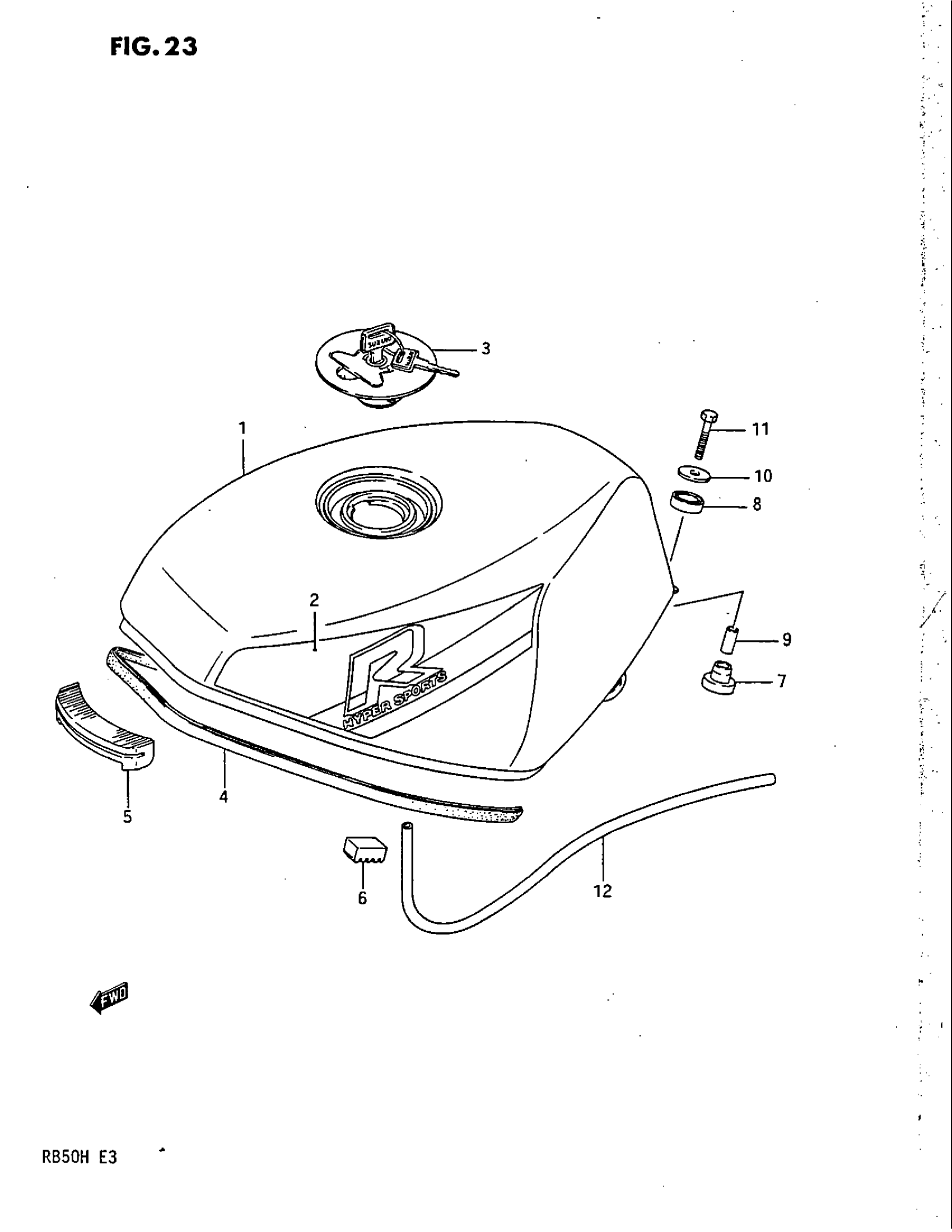

Suzuki GSXR50 (1987) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL (WHITE) | Includes Item(s) 2

44100-28B00-14L

Unavailable

2

TAPE SET, FUEL TANK

68110-28B00-7TY

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 44200-28B00-KEY.

44200-28830

Unavailable

4

MOLDING This part replaces 68241-28B00.

68241-04X50-00B

$27.30

5

CUSHION, FRONT

44511-04700

Unavailable

6

CUSHION, SIDE

44545-04700

Unavailable

7

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

8

CUSHION

09320-14013

$2.11

9

SPACER,6.5X9X19 This part replaces 09180-06162.

09180-06272

$3.05

10

WASHER, 6.5X24X1.6 This part replaces 09160-06072.

09160-06501

$1.86

11

BOLT This part replaces 01107-06306.

01500-0630A

$2.19

12

HOSE This part replaces 09343-05165.

09352-50005-00B

$13.93
