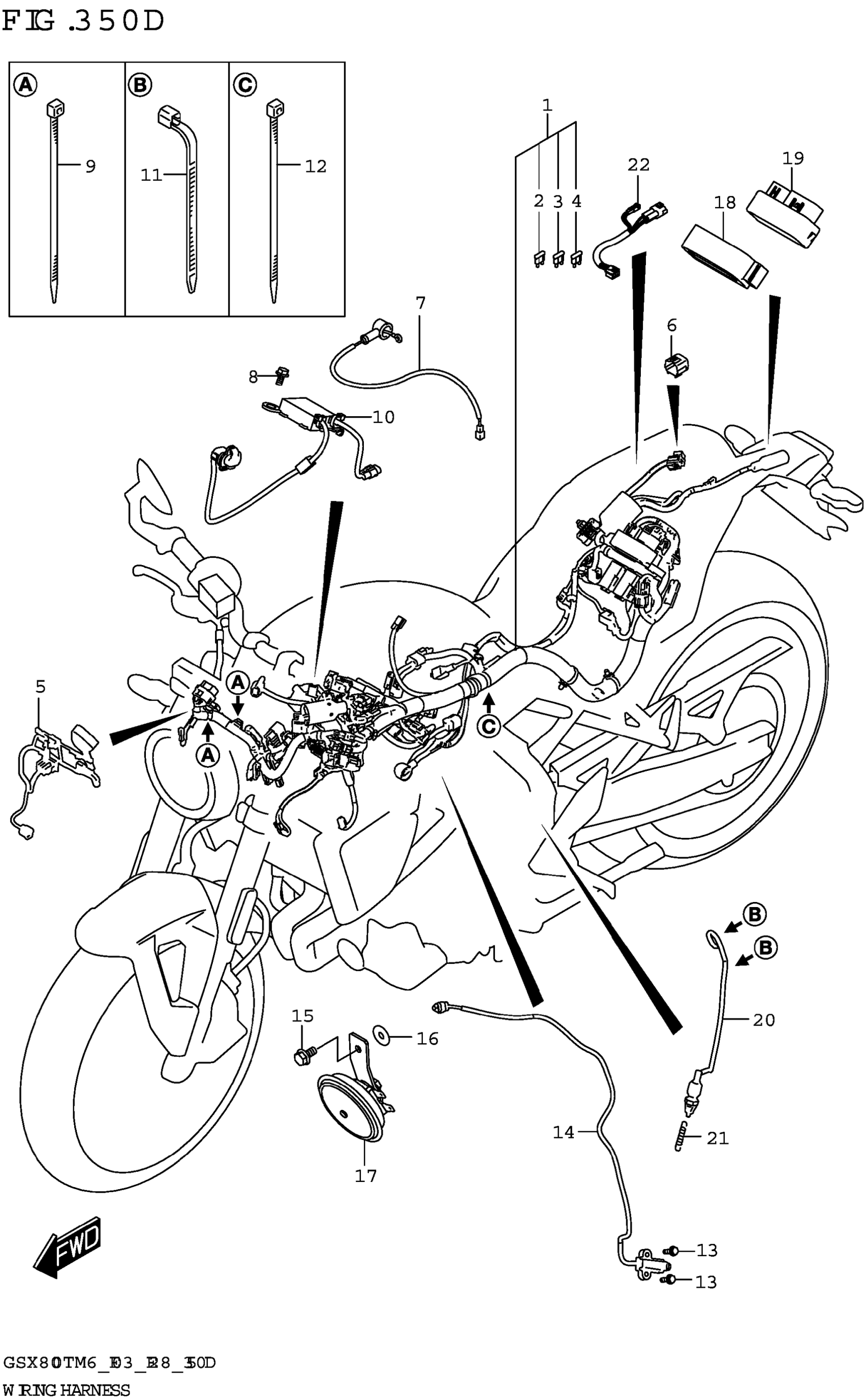

Suzuki GSX800TRQBM6 (2026) WIRING HARNESS (GSX800TTRQB) Diagram

#

Description
Price

1

HARNESS,WIRING

36610-47L20

$822.00

2

.FUSE (10A)

09481-10501

$2.07

3

.FUSE (15A)

09481-15501

$2.07

4

.FUSE (20A)

09481-20501

Unavailable

5

HARNESS,WIRING NO.2

36620-47L00

$158.82

6

CAP,OBD CONNECTOR

36654-28K00

$9.85

7

WIRE,OIL PRESSURE SW LEAD

36851-25L00

$7.78

8

BOLT

01550-0612A

$1.97

9

CLAMP (L:145)

09407-14407

$2.80

10

SOCKET,USB

39105-47L10

$116.12

11

CLAMP (L:95)

09407-10403

Unavailable

12

CLAMP (L:145)

09407-14407

$2.80

13

BOLT

01550-0620B

$2.38

14

SWITCH ASSY,SIDE STAND

37840-25L00

$91.98

15

BOLT

01550-0612B

$2.38

16

WASHER (6.5X18X1)

09160-06151

$2.08

17

HORN ASSY

38500-47L00

$43.08

18

HOLDER,RELAY

36744-06L00

$23.22

19

RELAY ASSY

38860-06L00

$150.02

20

SWITCH ASSY,STOP LAMP

37740-25L10

$13.62

21

SPRING

09443-06016

$3.58

22

WIRE,LICENSE LAMP LEAD

36857-25L00

$15.43
