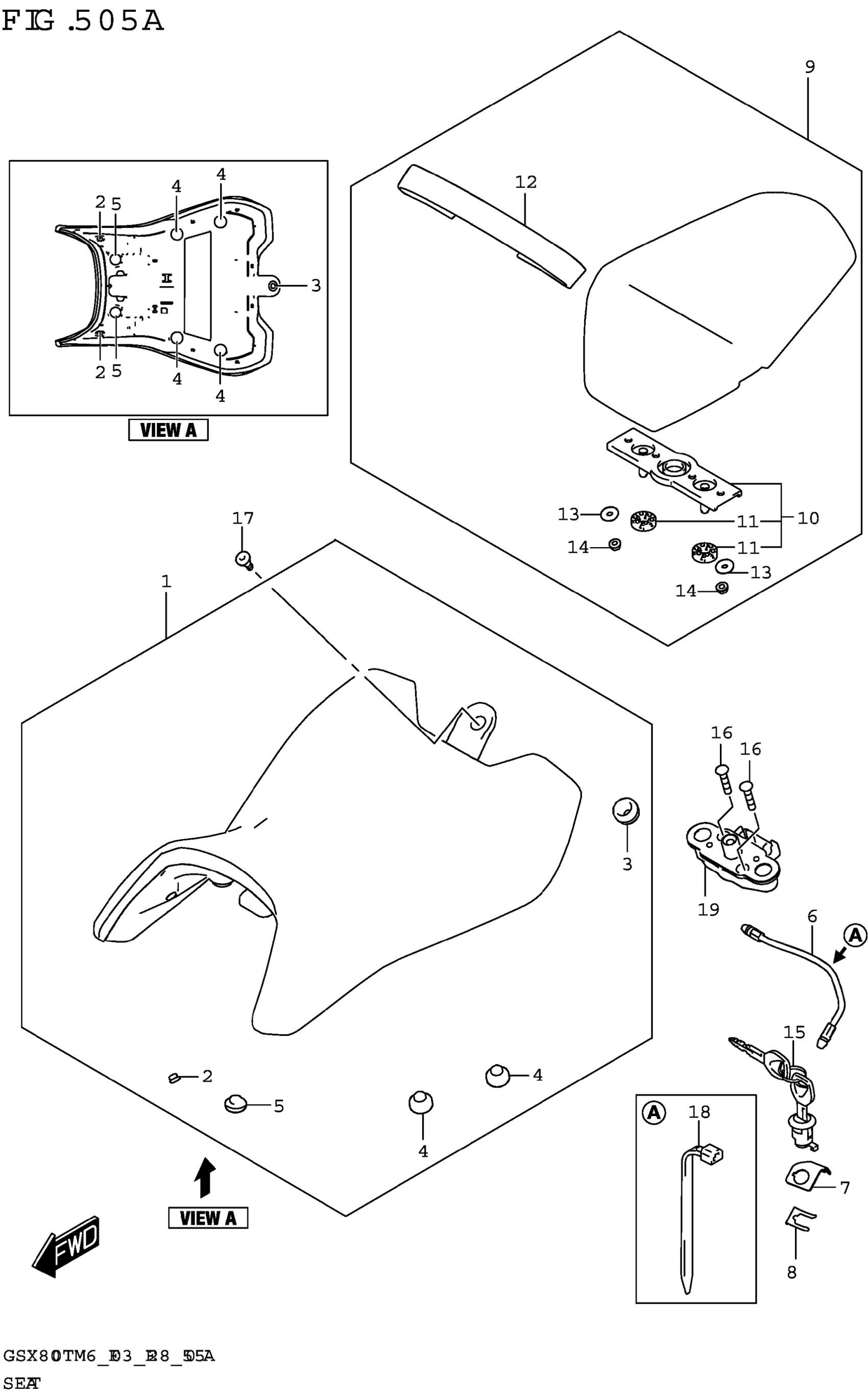

Suzuki GSX800TRQBM6 (2026) SEAT (GSX800TRQ) Diagram

#

Description
Price

1

SEAT ASSY (BLACK)

45100-47L00-B8Q

Unavailable

2

CUSHION,SEAT MOUNT

45148-27J00

$17.72

3

CUSHION (10X24X13)

47312-37H10

$2.91

4

CUSHION

09321-10012

$2.92

5

CUSHION

09329-10001

$2.12

6

CABLE,SEAT LOCK

45280-20K00

$8.30

7

GUIDE,SEAT LOCK CABLE

45288-14F00

$5.36

8

PLATE,SEAT LOCK ASSY

45289-11F00

$6.20

9

SEAT ASSY,PILLION (BLACK)

45300-47L00-B8Q

Unavailable

10

.STRIKER,SEAT LOCK

45290-42F02

$36.72

11

..CUSHION

45213-42F00

$5.60

12

.BAND,PILLION SEAT GRIP (BLAC | )

45380-47L00-QSH

Unavailable

13

WASHER (6.5X20X1.6)

09160-06154

$1.98

14

NUT

08316-1006B

$2.50

15

LOCK SET,SEAT

95700-14810

$107.30

16

SCREW (6X30)

09126-06019

$2.10

17

SCREW

09139-06244

$4.08

18

CLAMP (L:165)

09407-18402

$2.19

19

BRACKET,SEAT SUPPORT

45220-47H00

$138.38
