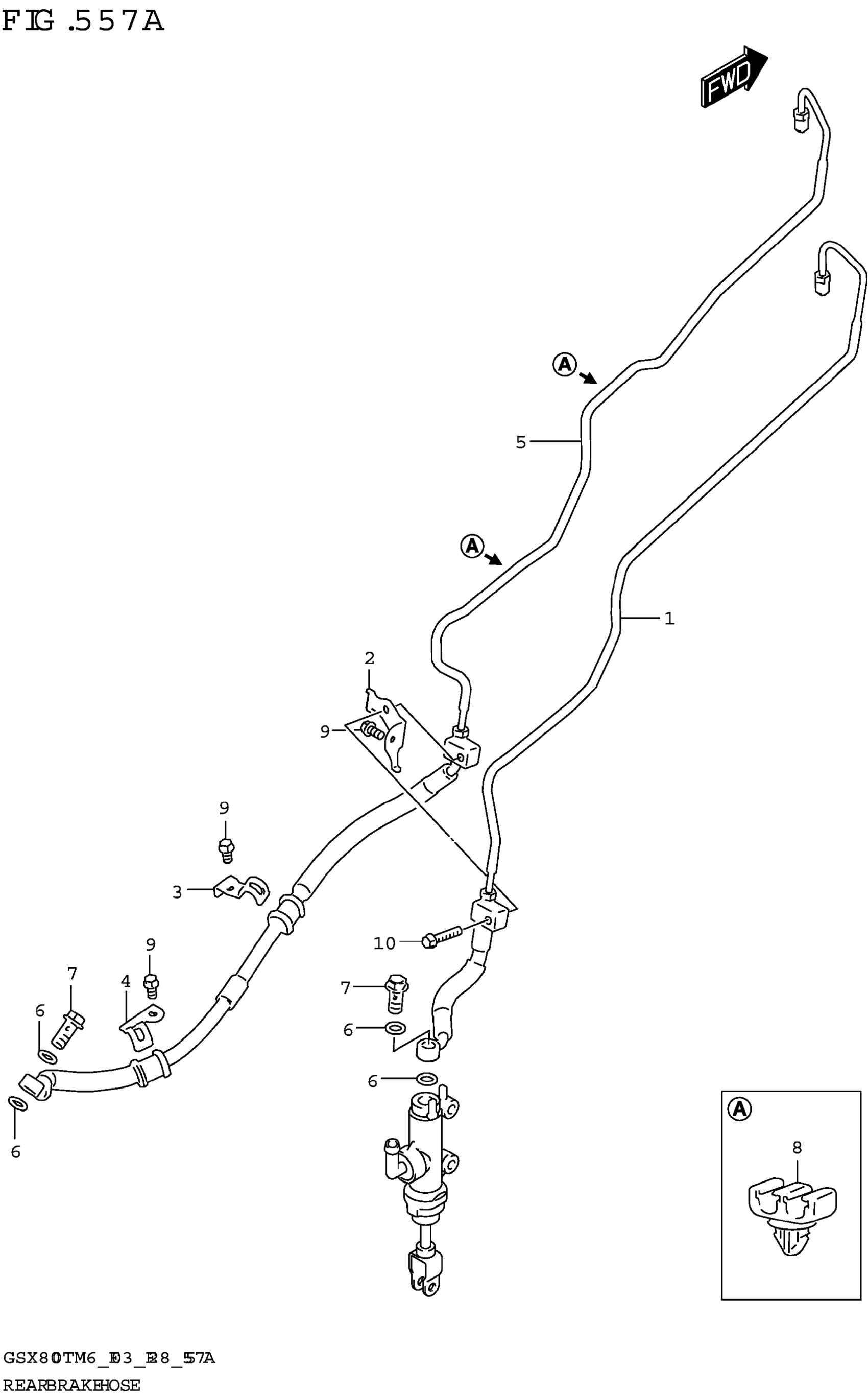

Suzuki GSX800TRQBM6 (2026) REAR BRAKE HOSE Diagram

#

Description
Price

1

HOSE ASSY,RR BK MASTER TO UNI

69200-25L10

$93.70

2

CLAMP,RR BRAKE HOSE

69261-25L00

$13.50

3

CLAMP,RR BRAKE HOSE NO.1

69271-25L00

$10.65

4

CLAMP,RR BRAKE HOSE NO.2

69275-25L00

$10.78

5

HOSE ASSY,UNIT TO RR BK CLPR

69400-25L00

$116.18

6

WASHER (10X15X1.5)

09161-10009

$1.84

7

UNION (10X1.25X22)

09360-10062

$6.43

8

CLAMP

09403-07344

$2.50

9

BOLT

01547-0612A

$2.03

10

BOLT

01547-0630A

$2.32
