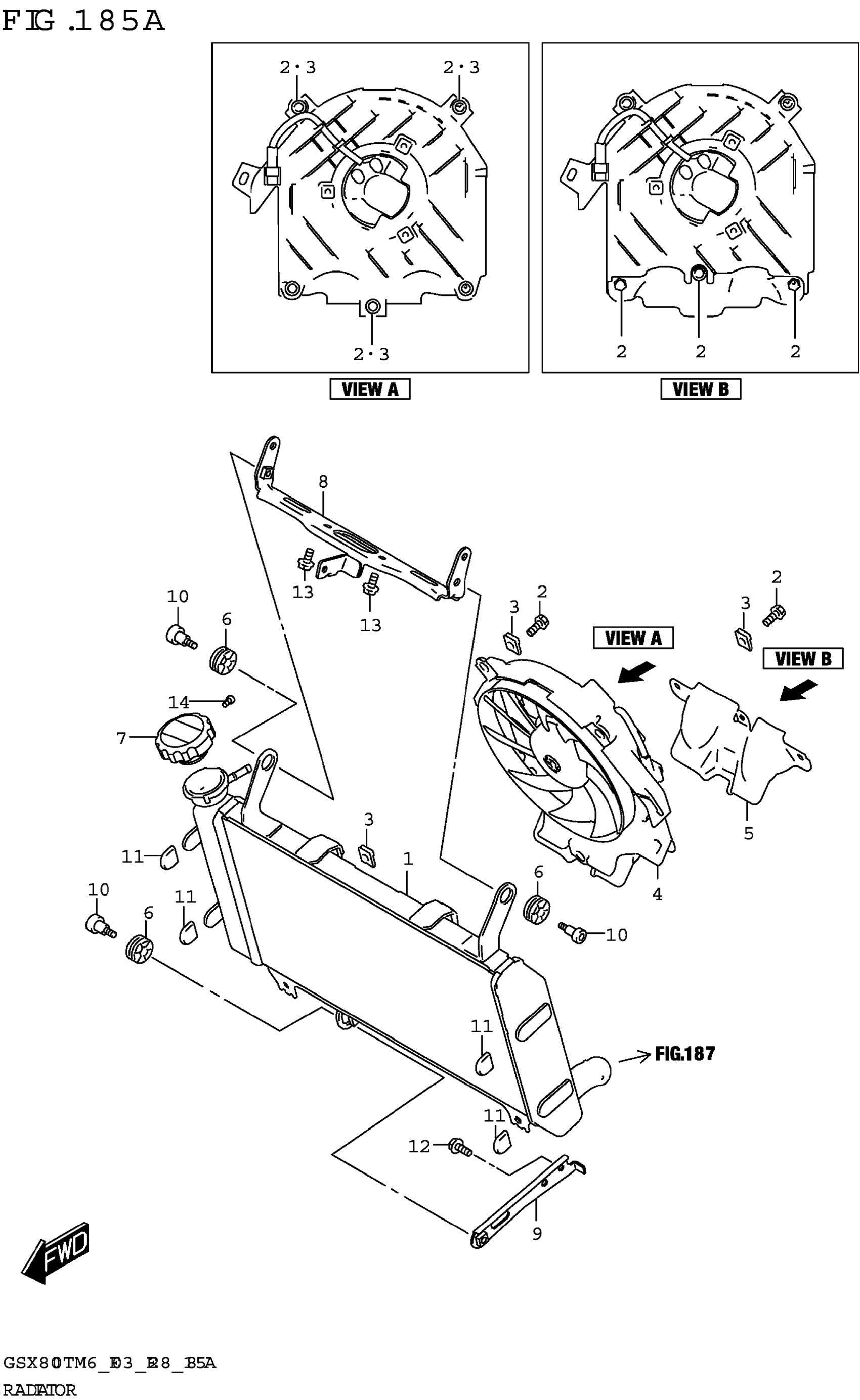

Suzuki GSX800TRQBM6 (2026) RADIATOR Diagram

#

Description
Price

1

RADIATOR

17700-25L00

$498.00

2

BOLT,FAN ASSY

17711-14G00

$4.10

3

NUT,RADIATOR FAN

17802-14F00

$3.38

4

FAN ASSY This part replaces 17810-47L00.

17810-25L10

Unavailable

5

PLATE

17812-25L00

$18.42

6

CUSHION

09320-10051

$2.99

7

CAP,RADIATOR (1.1)

17730-08D10

$52.07

8

BRACKET,RADIATOR UPPER

17740-47L00

Unavailable

9

BRACKET,RADIATOR LOWER

17750-25L00

$9.78

10

BOLT,RADIATOR CUSHION

17788-47L00

Unavailable

11

CUSHION

09329-18001

$1.91

12

BOLT

01550-0616A

$1.97

13

SCREW

02162-0612A

$2.05

14

SCREW,RADIATOR CAP

17733-03D10

$2.60
