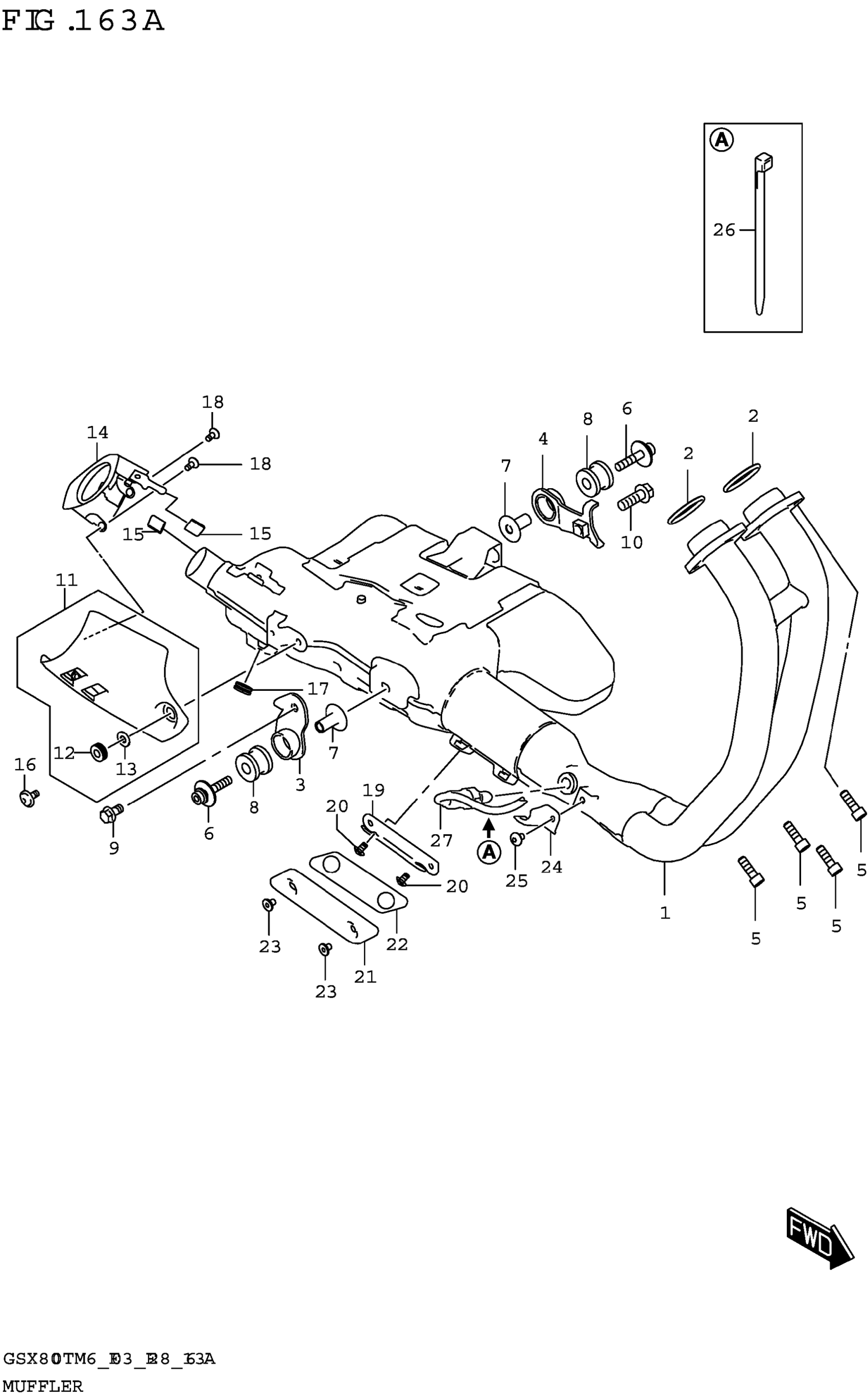

Suzuki GSX800TRQBM6 (2026) MUFFLER (GSX800TRQ) Diagram

#

Description
Price

1

EXHAUST

14100-25L00-H01

$3,412.15

2

.GASKET,EXHAUST PIPE

14181-04K00

$7.59

3

BRACKET,CHAMBER SPRT R

14760-25L00

$23.30

4

BRACKET,CHAMBER SPRT L

14770-25L00

$23.30

5

BOLT (8X25)

09106-08178

$2.97

6

BOLT

09116-08176

$7.90

7

SPACER (8.6X12X24.2)

09180-08152

$5.26

8

CUSHION (12X30X24)

09320-12077

$10.78

9

BOLT

01550-0816B

$2.75

10

BOLT

01550-1030B

$4.03

11

COVER,CHAMBER

14780-47L00

$136.88

12

CUSHION (8.4X18X6)

09320-08066

$7.44

13

.WASHER

14784-47L00

$4.53

14

STAY,CHAMBER RR COV

14790-25L00

$42.07

15

GROMMET

14795-10FA0

$5.26

16

SCREW (6X12)

09139-06124

$4.92

17

CUSHION (8.4X18X6)

09320-08066

$7.44

18

BOLT

07130-0812B

$2.68

19

BRACKET,EXH COV

14140-25L10

$20.37

20

SCREW (6X10)

09139-06122

$2.80

21

COVER,EXH PIPE

14181-25L10

$9.17

22

SHIELD, EXH COV HEAT

14182-25L00

$3.47

23

SCREW

14789-29F01

$6.15

24

COVER,OXYGEN SENSOR

14183-25L00

$20.30

25

SCREW (6X10)

09139-06122

$2.80

26

CLAMP (L:145)

09407-14407

$2.80

27

SENSOR,OXYGEN

18213-25L40

$237.02
