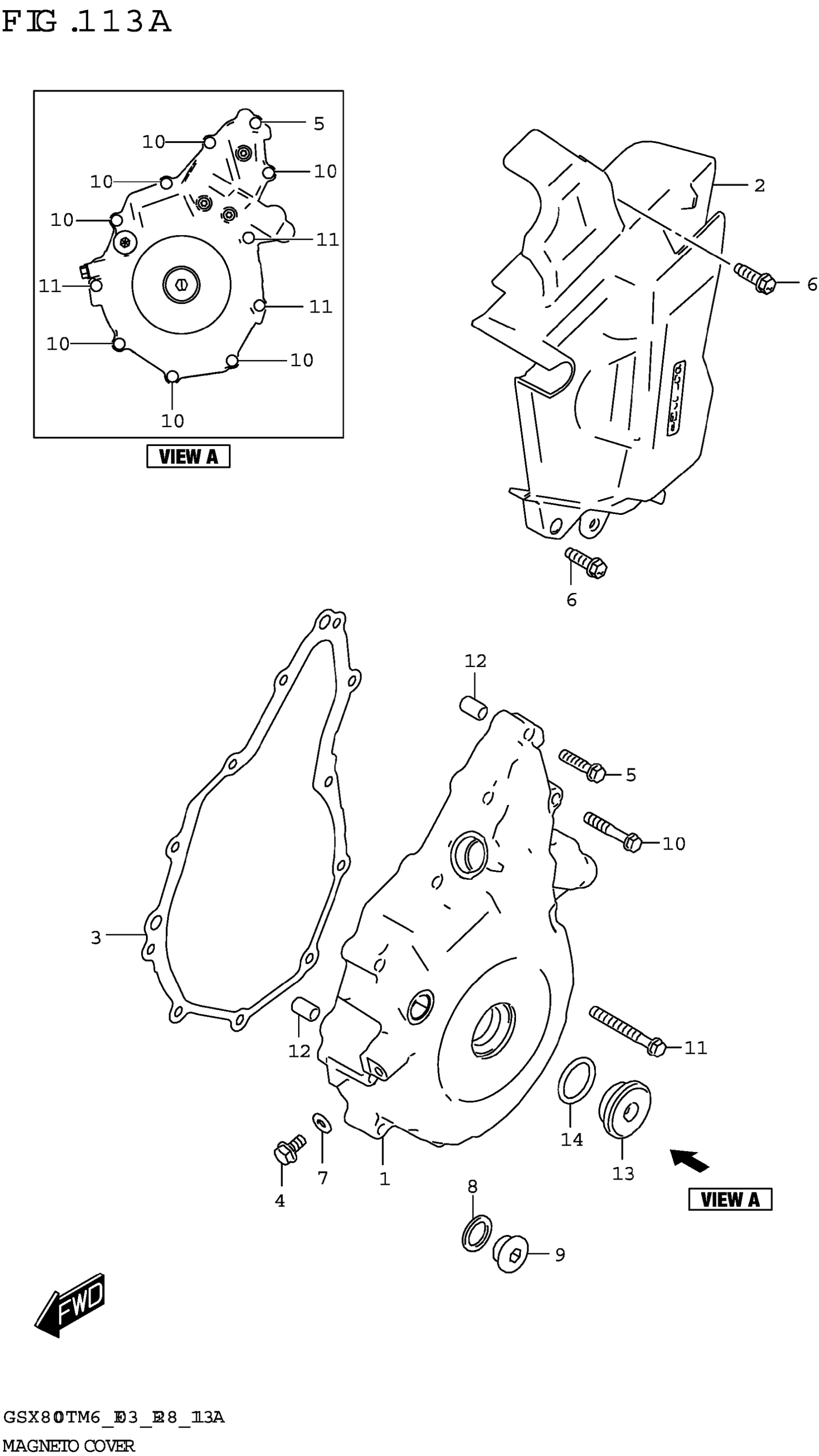

Suzuki GSX800TRQBM6 (2026) MAGNETO COVER Diagram

#

Description
Price

1

COVER,MAGNETO

11351-25L20

Unavailable

2

COVER,ENG SPROCKET

11360-25L10

$17.15

3

.GASKET,MAGNETO COVER

11483-25L00

$10.66

4

BOLT (6X12)

09103-06222

$2.26

5

BOLT (6X25)

09103-06528

$1.91

6

BOLT

09135-06035

$2.17

7

GASKET (6.2X13X1.2)

09168-06018

$1.77

8

GASKET (16X22X2)

09168-16002

$1.91

9

PLUG (16X8)

09248-16012

$4.64

10

BOLT (L:35)

09103-06530

$2.10

11

BOLT (6X50)

09103-06533

$2.28

12

PIN (8.5X18X2.3)

04211-09149

$1.65

13

PLUG

09259-26012

$11.09

14

O-RING (D:3.1,ID:22.7)

09280-22008

$2.27
