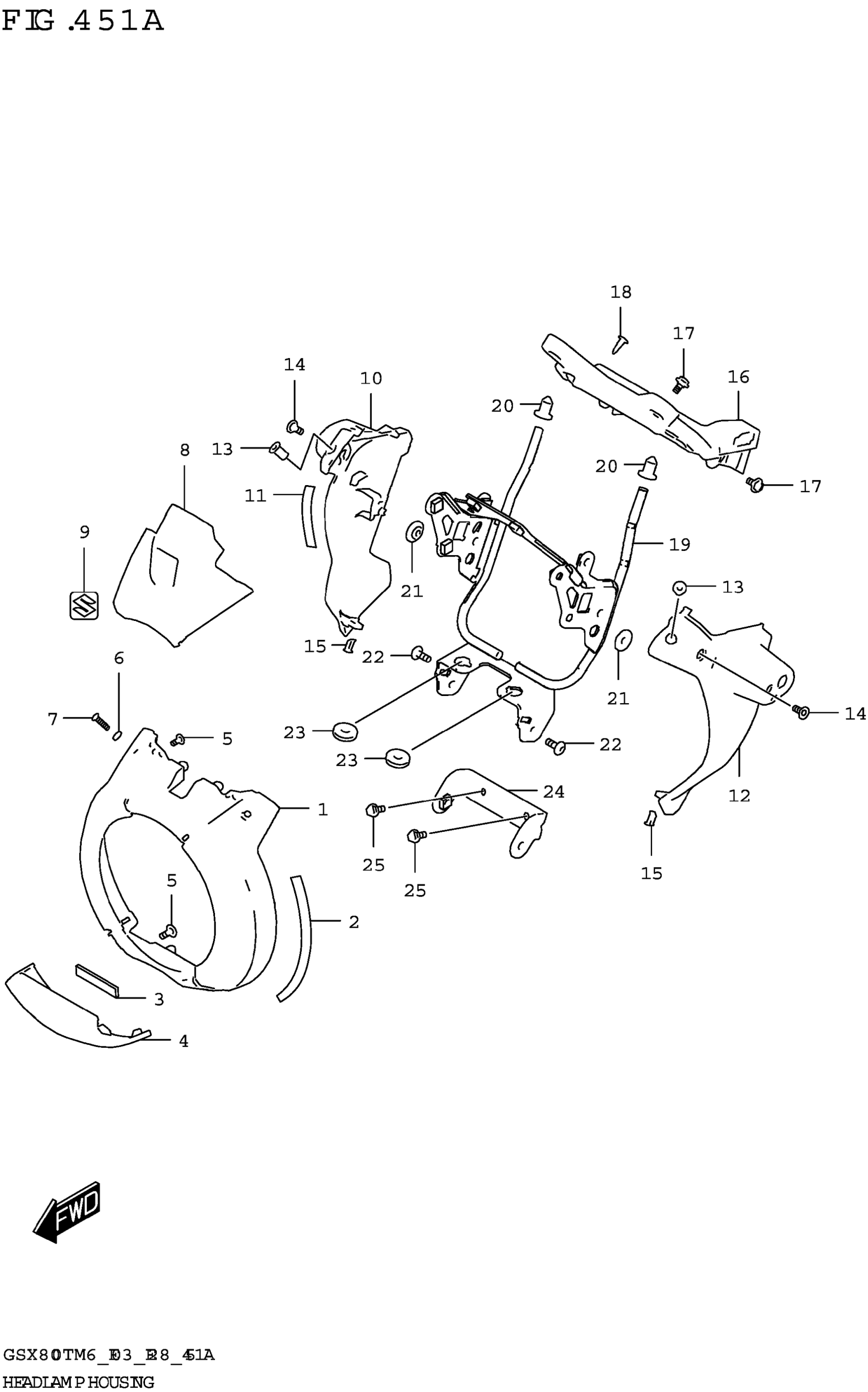

Suzuki GSX800TRQBM6 (2026) HEADLAMP HOUSING Diagram

#

Description
Price

1

COVER,HEADLAMP (SILVER)

51812-47L00-QKA

Unavailable

2

CUSHION,HEADLAMP COVER

51813-47L00

Unavailable

3

CUSHION,RR FENDER RR COVER

63117-39G00

$4.65

4

CUSHION,HEADLAMP BRACE

51831-21D00

$4.58

5

SCREW

03541-0512B

$1.78

6

WASHER (5.2X11.0X1.0)

09161-05010

$2.45

7

SCREW,WINDSCREEN

09139-05104

$2.19

8

COVER,METER FRONT

51823-47L00

Unavailable

9

EMBLEM,S

68281-48K10

$7.32

10

COVER,HEADLAMP SIDE,R

51811-47L00

Unavailable

11

PROTECTOR,20X90X1.0 (20X90X1. | )

33652-26E00

$3.70

12

COVER,HEADLAMP SIDE,L

51821-47L00

Unavailable

13

NUT (M5)

09159-05019

$7.14

14

BOLT,HEADLAMP BRACE & BRKT

09139-06250

Unavailable

15

CLIP

09409-08012

$2.82

16

BRACKET,METER

51825-47L01

Unavailable

17

BOLT (6X12)

09111-06107

$2.60

18

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

19

BRACE,HEADLAMP

51850-47L00

Unavailable

20

COVER,HEADLAMP UNDER

51831-47L00

Unavailable

21

CUSHION

09320-06026

$4.10

22

SCREW,SIDE COV & BRACE

09139-06252

Unavailable

23

CUSHION (8X26X7)

09320-08028

$3.04

24

BRACKET, HEADLAMP COVER

51860-25L00

$10.75

25

BOLT

01550-0616A

$1.97
