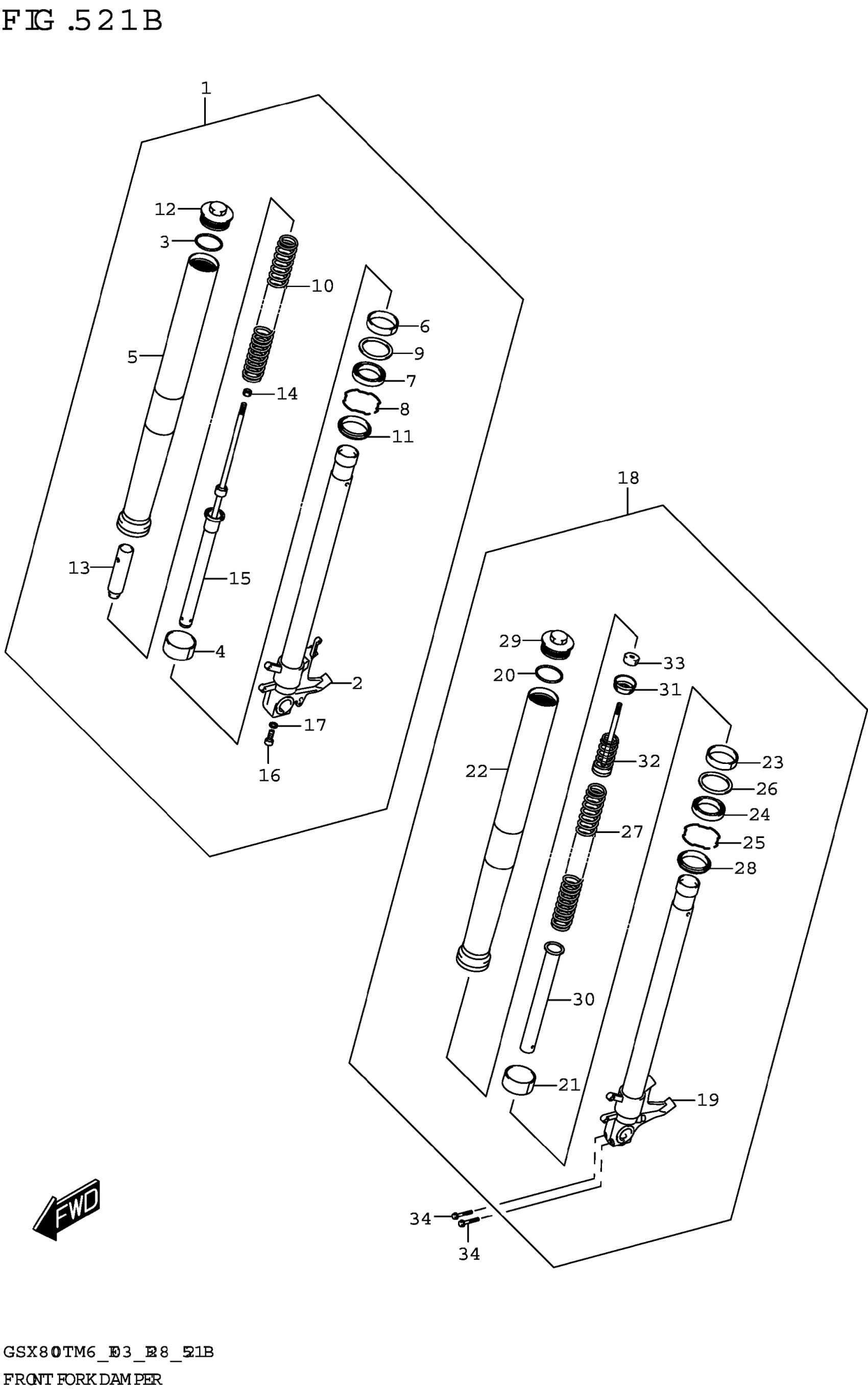

Suzuki GSX800TRQBM6 (2026) FRONT FORK DAMPER (GSX800TTRQB) Diagram

#

Description
Price

1

DAMPER ASSY RH

51103-25L60

$1,027.47

2

.TUBE, INNER RH

51110-25L00

$529.37

3

.O RING

51117-39G20

Unavailable

4

.PISTON

51121-26E10

$29.73

5

.TUBE, OUTER

51131-25L60

$500.37

6

.BUSH, GUIDE

51152-13K00

$19.62

7

.SEAL,OIL

51153-10G50

$19.79

8

.RING,OIL SEAL STOPPER

51156-49440

$4.97

9

.WASHER

51158-05A00

$5.58

10

.SPRING

51171-25L00

$37.03

11

.SEAL,DUST

51173-14F00

$22.07

12

.CAP

51351-39G60

$179.92

13

.SPACER, SPRING

51176-48G10

$30.92

14

.NUT, ROD

51352-13A60

$3.42

15

.CYLINDER

51146-25L00

$297.10

16

.BOLT

51147-05H00

$6.10

17

.GASKET

51148-41310

$2.14

18

DAMPER ASSY LH

51104-25L60

$1,009.63

19

.TUBE, INNER LH

51120-25L00

$557.95

20

.O RING

51117-39G20

Unavailable

21

.PISTON

51121-26E10

$29.73

22

.TUBE, OUTER

51131-25L60

$500.37

23

.BUSH, GUIDE

51152-13K00

$19.62

24

.SEAL,OIL

51153-10G50

$19.79

25

.RING,OIL SEAL STOPPER

51156-49440

$4.97

26

.WASHER

51158-05A00

$5.58

27

.SPRING

51171-25L00

$37.03

28

.SEAL,DUST

51173-14F00

$22.07

29

.CAP

51351-39G60

$179.92

30

.SPACER

51176-25L00

$24.00

31

.STOPPER

51126-25L00

$14.58

32

.ROD, PISTON

51128-25L00

$77.43

33

.RUBBER, CUSHION

51193-48KA0

$13.13

34

BOLT, AXLE STOPPER

51434-40H20

$3.53
