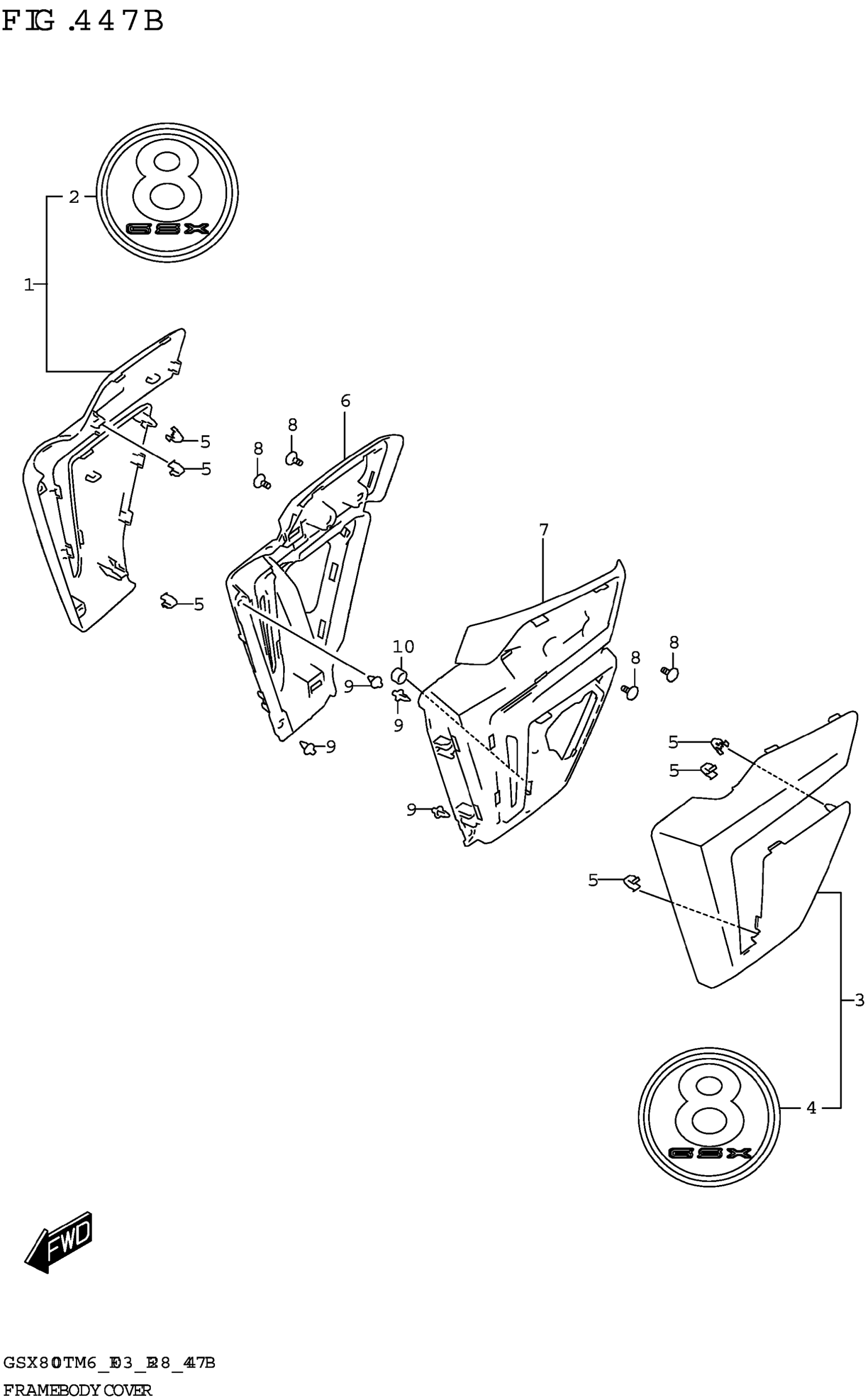

Suzuki GSX800TRQBM6 (2026) FRAME BODY COVER (GSX800TTRQB) Diagram

#

Description

Price

1

COVER,FRAME BODY LOWER,R (BLA | K)

47510-47L00-YVB

Unavailable

2

.EMBLEM

68133-47L00

Unavailable

3

COVER,FRAME BODY LOWER,L (BLA | K)

47520-47L00-YVB

Unavailable

4

.EMBLEM

68133-47L00

Unavailable

5

CLIP (10.5X14.3)

09409-08326

$2.48

6

COVER,FRAME BODY INNER,R

47512-47L00

Unavailable

7

COVER,FRAME BODY INNER,L

47522-47L00

Unavailable

8

SCREW (5X13)

09139-05092

$2.25

9

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

10

CAP (OD:13.6)

09251-09008

$4.12
