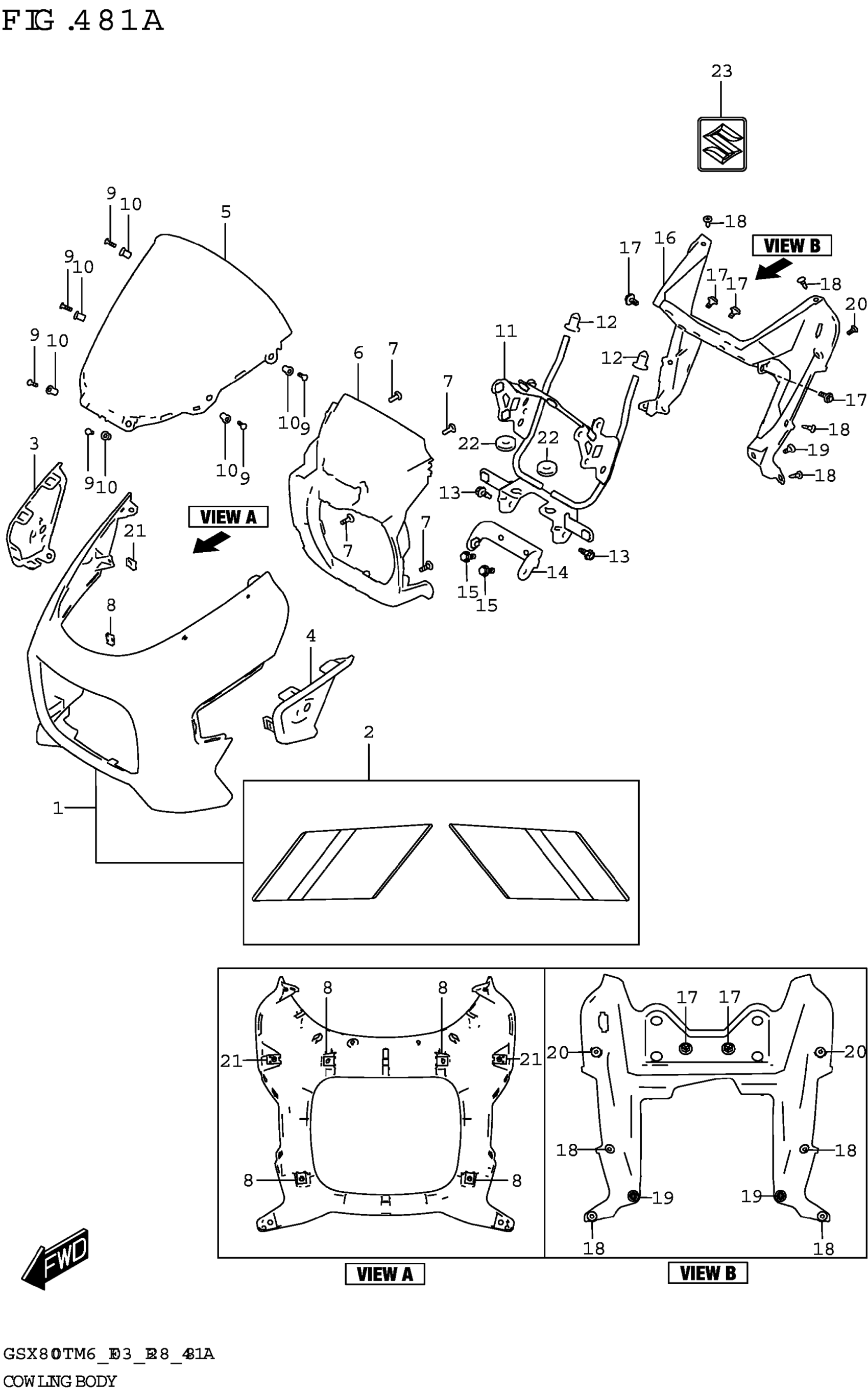

Suzuki GSX800TRQBM6 (2026) COWLING BODY (GSX800TTRQB) Diagram

#

Description
Price

1-1

COWLING,BODY (BLACK) | BODY COLOR:YVB

94410-47L00-YVB

Unavailable

1-2

COWLING,BODY (GREEN) | BODY COLOR:QU5

94410-47L00-QU5

Unavailable

2-1

.TAPE SET,COWLING BODY | BODY COLOR:YVB

68270-47L00-C7E

Unavailable

2-2

.TAPE SET,COWLING BODY | BODY COLOR:QU5

68270-47L00-C7F

Unavailable

3

COWLING,BODY SIDE,R

94413-47L00

Unavailable

4

COWLING,BODY SIDE,L

94414-47L00

Unavailable

5

WINDSCREEN

94611-47L00

Unavailable

6

COWLING,HEADLAMP COVER INNER

94415-47L00

Unavailable

7

SCREW

03541-0516A

$1.49

8

NUT (M5)

09148-05038

$1.97

9

SCREW

09139-04008

$1.42

10

NUT

09159-04013

$3.50

11

BRACE,COWLING

51850-47L10

Unavailable

12

CUSHION,HEADLAMP BRACE

51831-21D00

$4.58

13

BOLT (6X16)

09135-06027

$2.45

14

BRACKET, HEADLAMP COVER

51860-25L00

$10.75

15

BOLT

01550-0616A

$1.97

16

PANEL,METER

94641-47L00

Unavailable

17

BOLT (6X12)

09111-06107

$2.60

18

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

19

SCREW

09139-06245

$2.17

20

BOLT,PANEL METER

09139-05112

Unavailable

21

NUT (M5)

09148-05052

$3.37

22

CUSHION (8X26X7)

09320-08028

$3.04

23

EMBLEM,S

68281-48K10

$7.32
