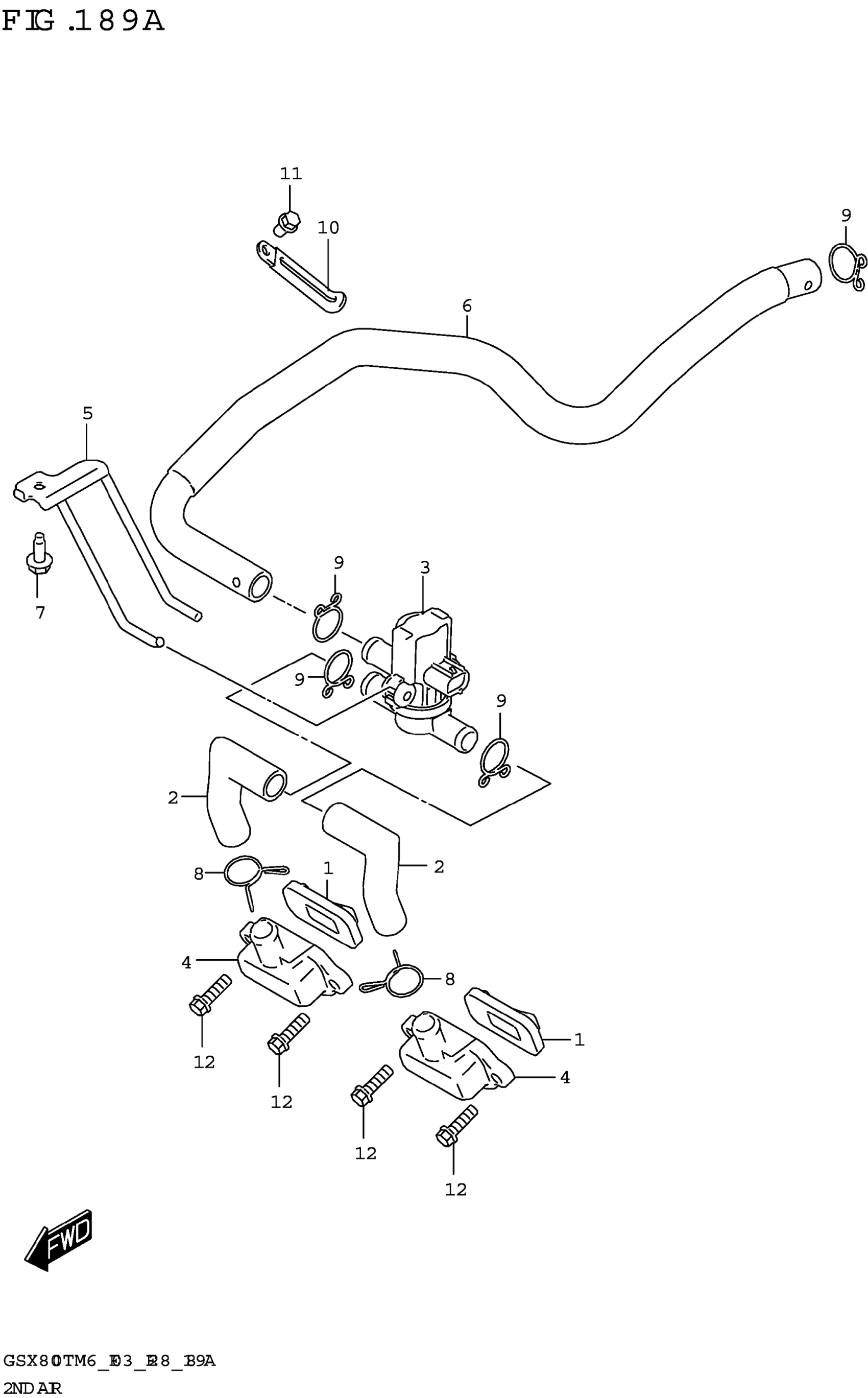

Suzuki GSX800TRQBM6 (2026) 2ND AIR Diagram

#

Description
Price

1

VALVE ASSY,2ND AIR REED

18450-28K00

$35.67

2

HOSE,2ND AIR VALVE

18461-25L10

Unavailable

3

VALVE ASSY,AIR CUT

18510-29G31

$128.72

4

COVER,2ND AIR REED VALVE

18531-25L00

$14.62

5

BRACKET,2ND AIR VALVE

18610-25L00

$15.13

6

HOSE,2ND AIR CLNR

18710-25L00

$23.73

7

BOLT (6X16)

09135-06027

$2.45

8

CLIP

09401-17201

$3.15

9

CLIP

09401-18101

Unavailable

10

CLAMP (L:65)

09404-06043

$1.50

11

BOLT

01547-0610A

$2.45

12

BOLT

01547-0620A

$2.03
