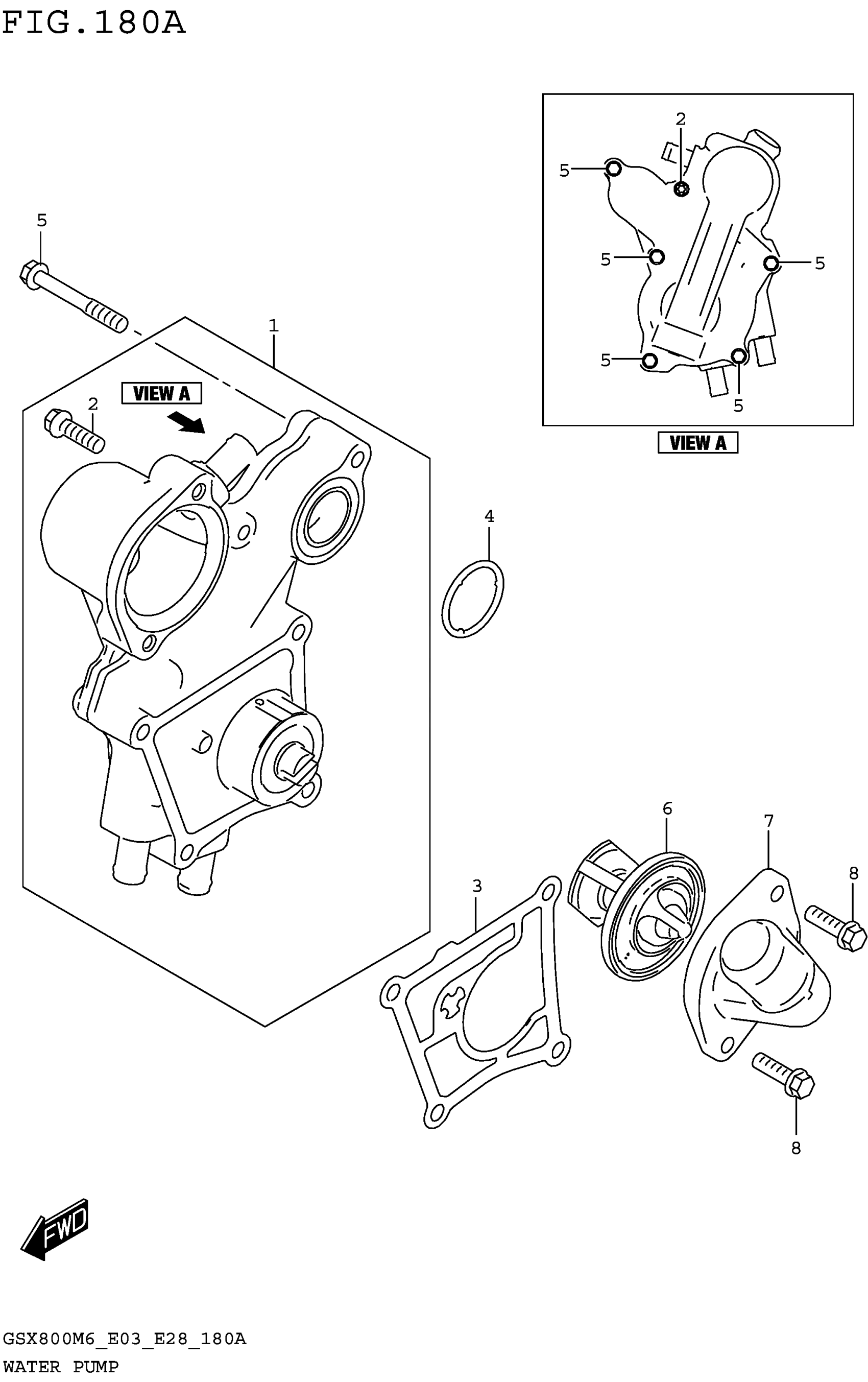

Suzuki GSX800RQM6 (2026) WATER PUMP Diagram

#

Description

Price

1

PUMP ASSY,WATER

17400-25L01

$288.40

2

BOLT (6X20)

09103-06527

$1.85

3

.GASKET,WATER PUMP

17421-25L00

$3.53

4

.O-RING,WATER PUMP

17431-25L00

$3.22

5

BOLT (L:45)

09103-06532

$2.18

6

THERMOSTAT,WTR 82 DEG

17670-81AB1

$32.03

7

CAP,THERMOSTAT

17661-25L00

$31.82

8

BOLT

01547-0620A

$2.03
