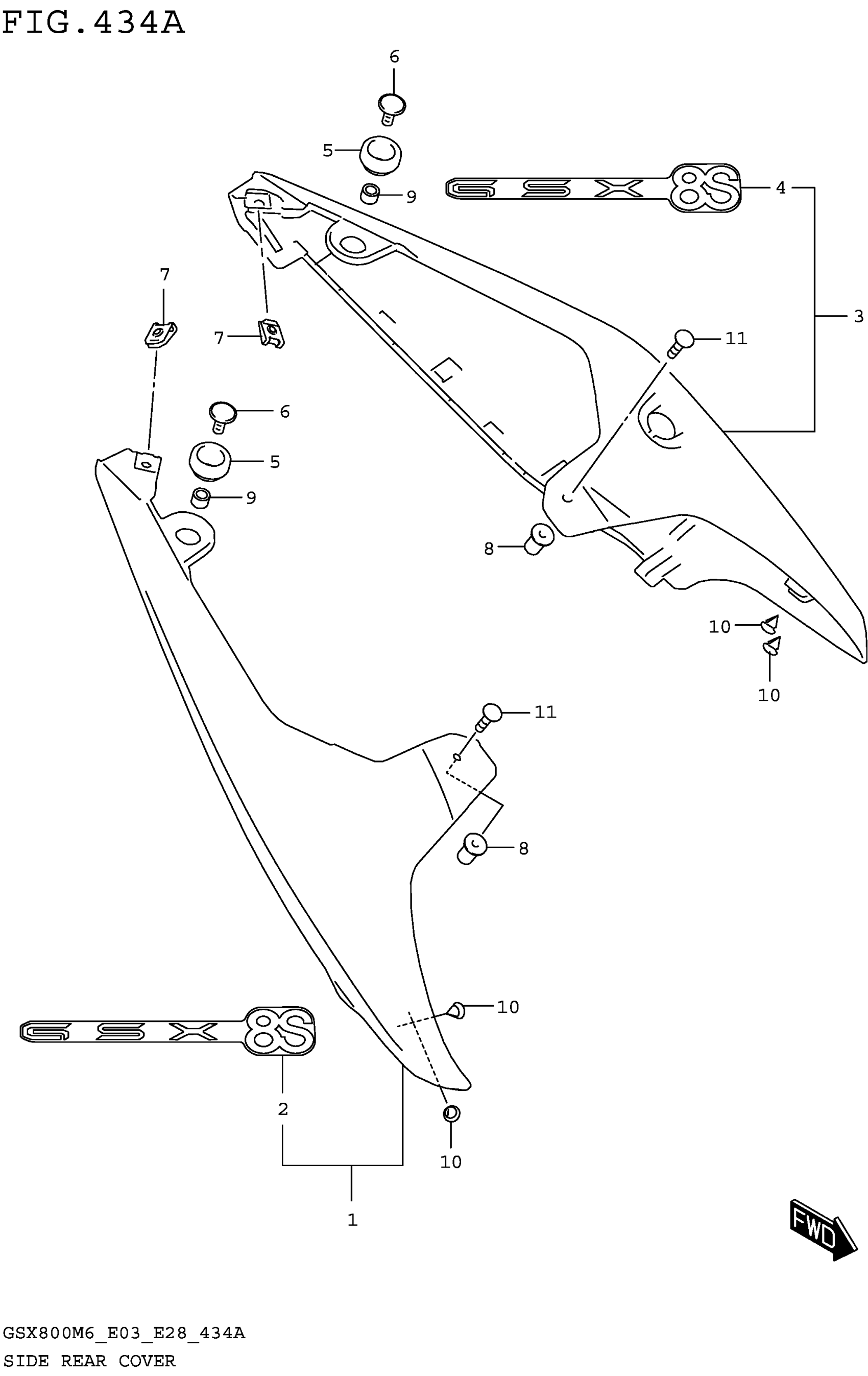

Suzuki GSX800RQM6 (2026) SIDE REAR COVER Diagram

#

Description
Price

1-1

COVER, FRAME RH (BLACK) | FOR KEL

47110-25L00-6UX

Unavailable

1-2

COVER, FRAME RH (BLACK) | FOR KGL

47110-25L00-44X

Unavailable

1-3

COVER, FRAME RH (BLACK) | FOR BNR

47110-25L00-46X

Unavailable

2-1

.EMBLEM, FRAME COVER RH | (WHITE/BLUE) FOR KEL

68131-25L00-BQJ

Unavailable

2-2

.EMBLEM, FRAME COVER RH | (WHITE/GRAY) FOR KGL

68131-25L00-B84

Unavailable

2-3

.EMBLEM, FRAME COVER RH | FOR BNR

68131-25L00-C4Q

Unavailable

3-1

COVER, FRAME UPPER LH (BLACK) | FOR KEL

47210-25L00-6UX

Unavailable

3-2

COVER, FRAME UPPER LH (BLACK) | FOR KGL

47210-25L00-44X

Unavailable

3-3

COVER, FRAME UPPER LH (BLACK) | FOR BNR

47210-25L00-46X

Unavailable

4-1

.EMBLEM, FRAME COVER LH | (WHITE/BLUE) FOR KEL

68141-25L00-BQJ

Unavailable

4-2

.EMBLEM, FRAME COVER LH | (WHITE/GRAY) FOR KGL

68141-25L00-B84

Unavailable

4-3

.EMBLEM, FRAME COVER LH | FOR BNR

68141-25L00-C4Q

Unavailable

5

CUSHION,FRAME COVER CTR

47312-37H20

$2.45

6

SCREW (6X16)

09136-06056

$2.19

7

NUT (M5)

09148-05038

$1.97

8

NUT (M5)

09159-05019

$7.14

9

SPACER (6.5X10X7)

09180-06283

$1.91

10

PLUG (OD:10)

09250-06017

$2.71

11

SCREW

02142-1520A

Unavailable
