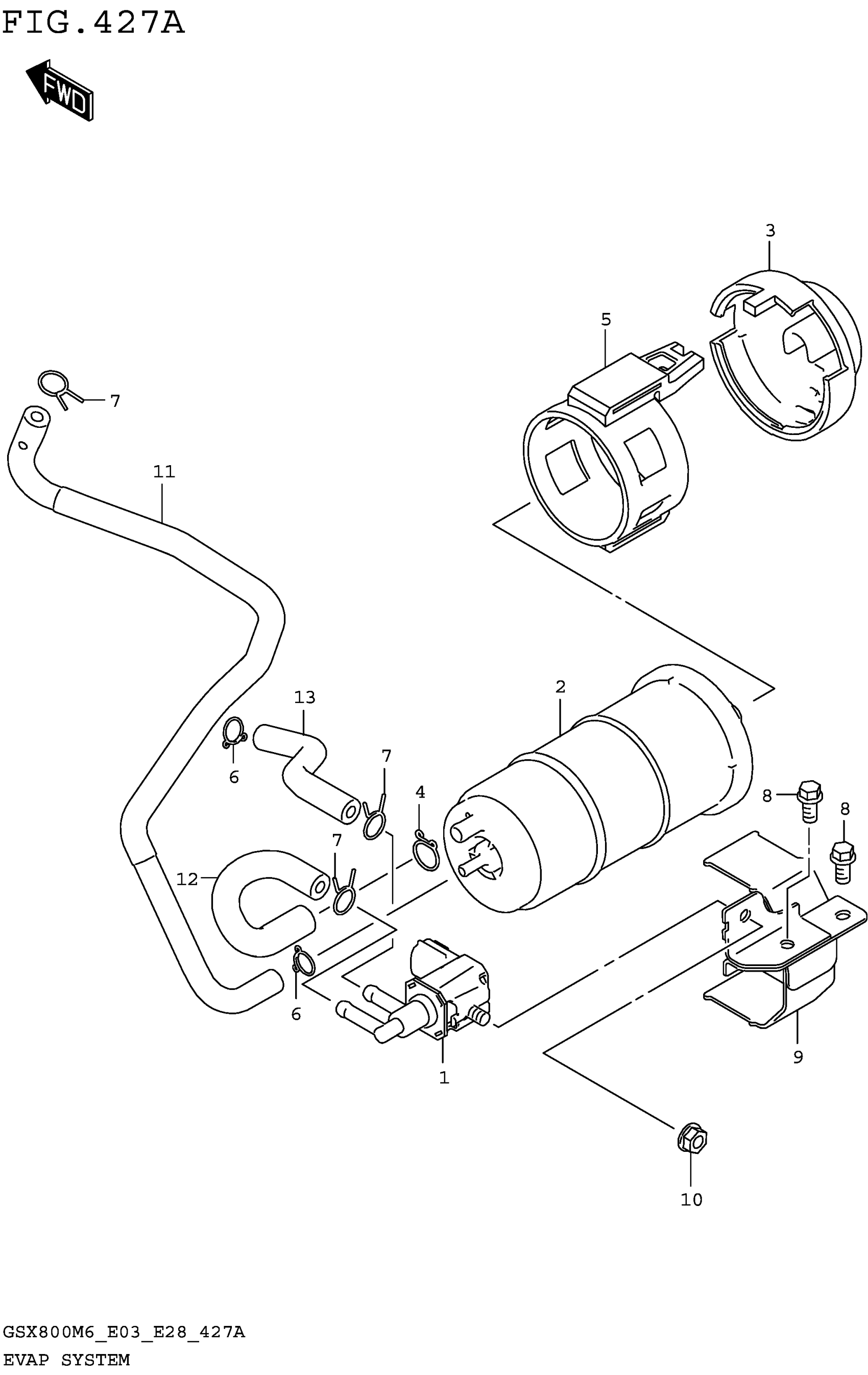

Suzuki GSX800RQM6 (2026) EVAP SYSTEM Diagram

#

Description
Price

1

VALVE,CANISTER PURGE

18114-74P00

$124.80

2

CANISTER ASSY,EVAP

18560-25L00

$48.77

3

COVER,CANISTER

18565-25L00

$34.32

4

CLIP,EVAP HOSE NO.1

18568-25L00

$1.22

5

CUSHION,CANISTER

18572-25L00

$34.32

6

CLIP

09401-10401

$1.45

7

CLIP (ID:11) This part replaces 09401-11301.

09401-11403

$2.80

8

BOLT

01547-0612A

$2.01

9

BRACKET,CANISTER

18570-25L00

$19.97

10

NUT (6X12)

08316-1006A

$2.19

11

HOSE,SURGE

18561-25L10

$30.78

12

HOSE,PURGE NO.1

18562-25L10

$15.90

13

HOSE,PURGE NO.2

18563-25L10

$13.62
