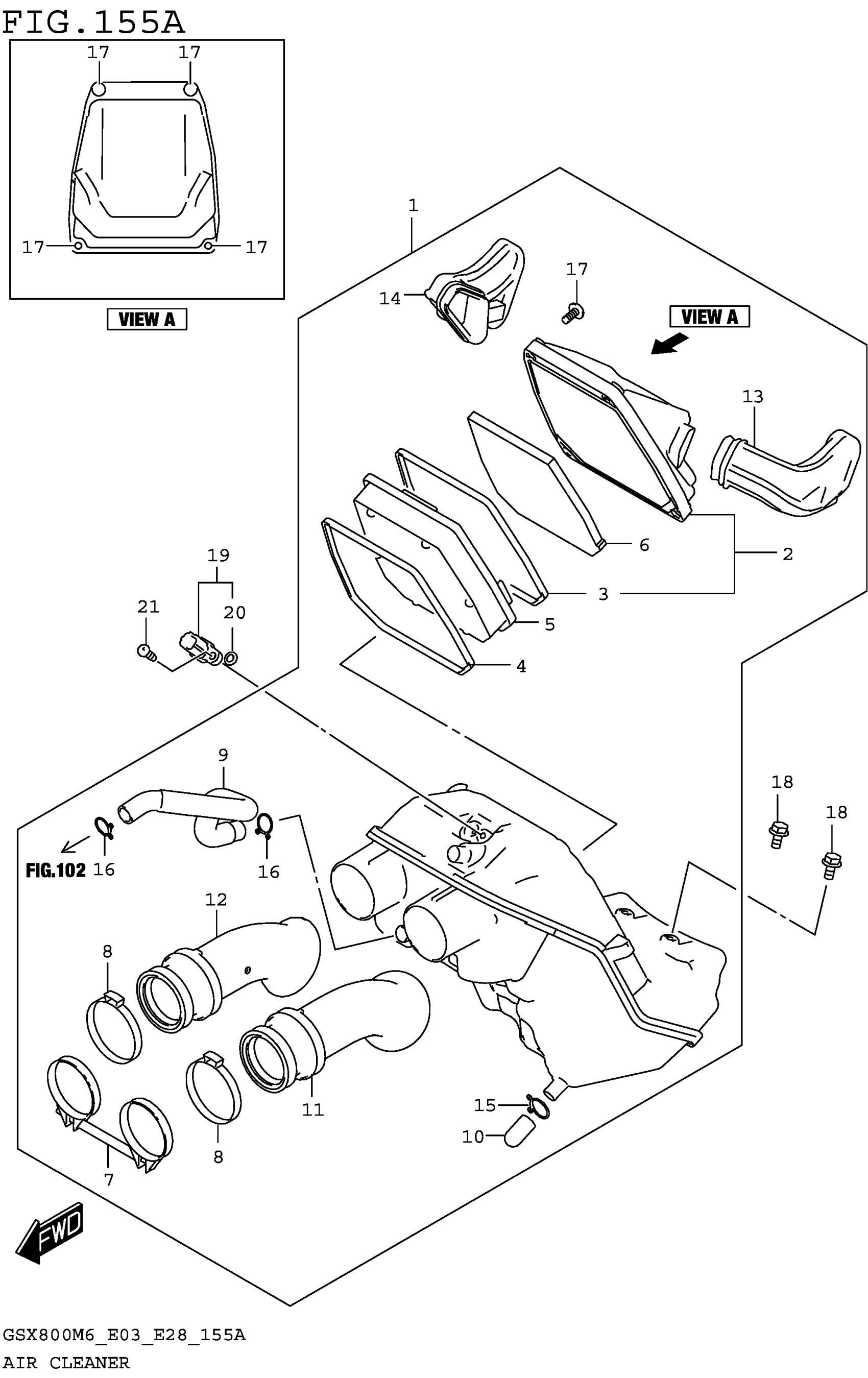

Suzuki GSX800RQM6 (2026) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AIR

13700-25L00

$335.25

2

.CAP,AIR CLNR

13741-25L00

$21.72

3

..GASKET FILTER

13746-25L00

$8.85

4

..GASKET FILTER

13746-25L00

$8.85

5

.FILTER AIR CLNR

13780-25L00

$30.10

6

.PREFILTER

13786-25L00

$9.67

7

.CLAMP,INTAKE PIPE

13170-29G02

$29.67

8

.BAND,FRONT

13827-25L00

$9.45

9

.TUBE,BREATHER

13850-25L00

$44.50

10

.PLUG

13878-10G01

$6.53

11

.TUBE,OUTLET L

13881-25L00

$31.40

12

.TUBE,OUTLET R

13882-25L00

$31.40

13

.TUBE,INLET L

13891-25L00

$27.37

14

.TUBE,INLET R

13892-25L00

$27.37

15

.CLIP (ID:14.5)

09401-14101

$2.37

16

.CLIP (ID:16.5)

09401-16401

$2.87

17

SCREW

02142-0520A

$1.41

18

BOLT

01550-0612A

$1.97

19

SENSOR,AIR TEMP

13650-41F10

$71.40

20

O-RING

13655-41F10

Unavailable

21

SCREW

03511-0516A

$1.88
