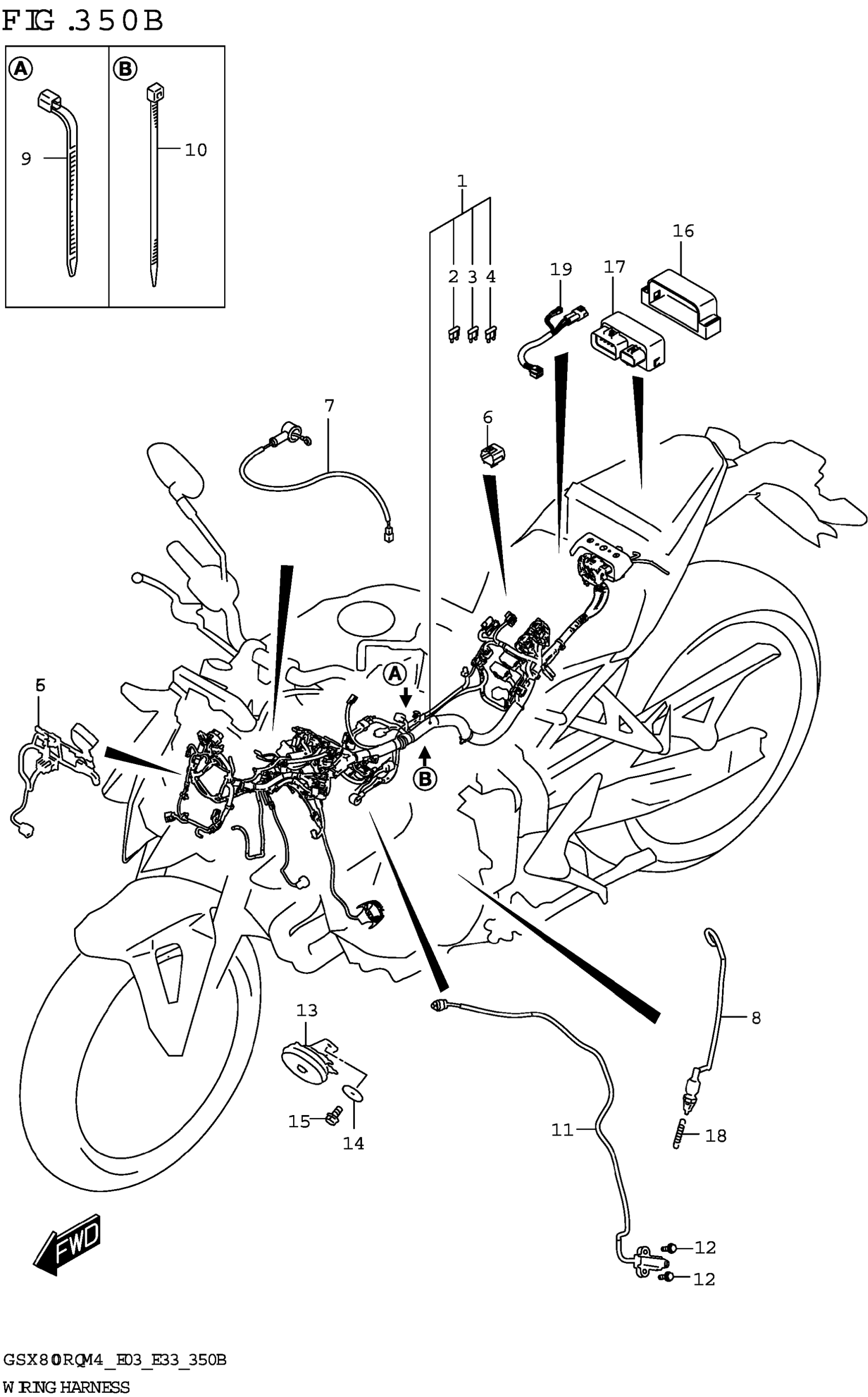

Suzuki GSX800RQM4 (2024) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS,WIRING NO.1

36610-25L00

$782.97

2

.FUSE (10A)

09481-10501

$2.06

3

.FUSE (15A)

09481-15101

$2.53

4

.FUSE (20A)

09481-20501

Unavailable

5

HARNESS, WIRING NO.2

36620-25L00

$146.22

6

CAP,OBD CONNECTOR

36654-28K00

$8.72

7

WIRE,OIL PRESSURE SW LEAD

36851-25L00

$6.90

8

SWITCH ASSY,STOP LAMP

37740-25L10

$12.07

9

CLAMP (L:95)

09407-10403

Unavailable

10

CLAMP (L:145)

09407-14407

$3.57

11

SWITCH ASSY,SIDE STAND

37840-25L00

$81.90

12

BOLT

01550-0620B

$2.39

13

HORN ASSY

38500-48H31

$17.98

14

WASHER (8.5X30X2.3)

09160-08159

$2.45

15

BOLT

01550-0816B

$2.73

16

HOLDER,RELAY

36744-06L00

$20.57

17

RELAY ASSY

38860-06L00

$134.80

18

SPRING

09443-06016

$3.30

19

WIRE,LICENSE LAMP LEAD

36857-25L00

$13.67
