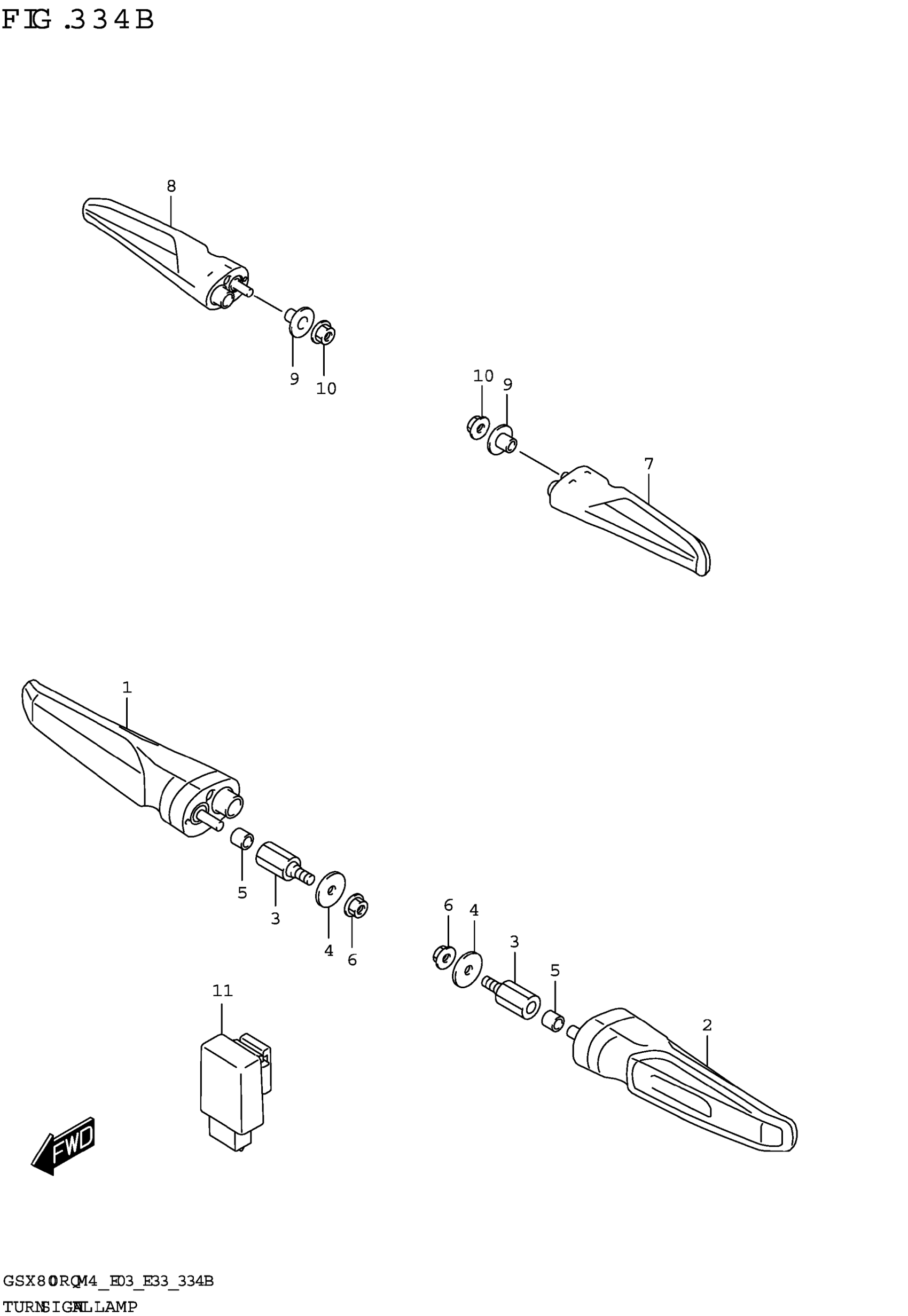

Suzuki GSX800RQM4 (2024) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FRONT TURNSIGNAL,R

35601-06LE0

$141.23

2

LAMP ASSY,FRONT TURNSIGNAL,L

35602-06LE0

$141.23

3

BOLT

09119-06142

$12.57

4

WASHER (6.5X22X2.0)

09160-06047

$1.97

5

SPACER (6.5X9X8)

09180-06261

$1.97

6

NUT (6X12)

08316-1006A

$2.25

7

LAMP ASSY,REAR TURNSIGNAL,R

35603-06LF0

$139.90

8

LAMP ASSY,REAR TURNSIGNAL,L

35604-06LF0

$103.67

9

WASHER

09169-06100

$1.53

10

NUT (6X12)

08316-1006A

$2.25

11

RELAY ASSY,TURNSIGNAL This part replaces 38610-06L00.

38610-06L01

$81.55
