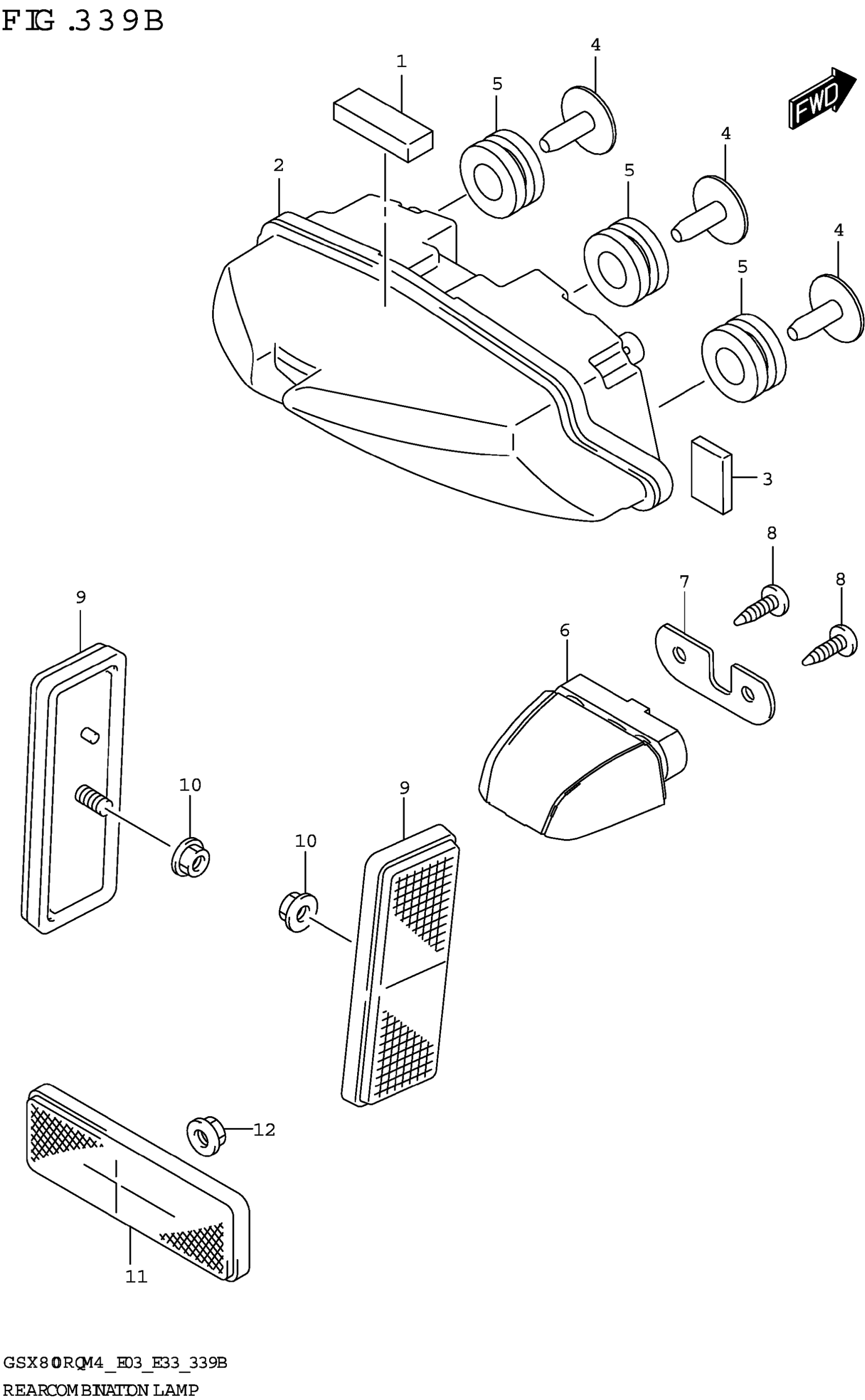

Suzuki GSX800RQM4 (2024) REAR COMBINATION LAMP Diagram

#

Description

Price

1

CUSHION (10X30X6) | )

33652-47F00

$3.53

2

LAMP ASSY,REAR COMB This part replaces 35710-14JA1.

35710-14JC0

$141.45

3

CUSHION (15X23X4)

47163-10FA0

$5.13

4

SCREW (5X15)

09136-05062

$2.25

5

CUSHION

09320-10073

$2.12

6

LAMP ASSY,LICENSE

35910-48K10

$86.05

7

PLATE,LICENSE LAMP

35926-48K00

$12.95

8

SCREW

03541-0516A

$1.41

9

REFLECTOR ASSY,RR

35970-07F01

$19.97

10

NUT

08319-3105A

$2.47

11

REFLECTOR ASSY,RR

35970-07F01

$19.97

12

NUT

08319-3105A

$2.47
