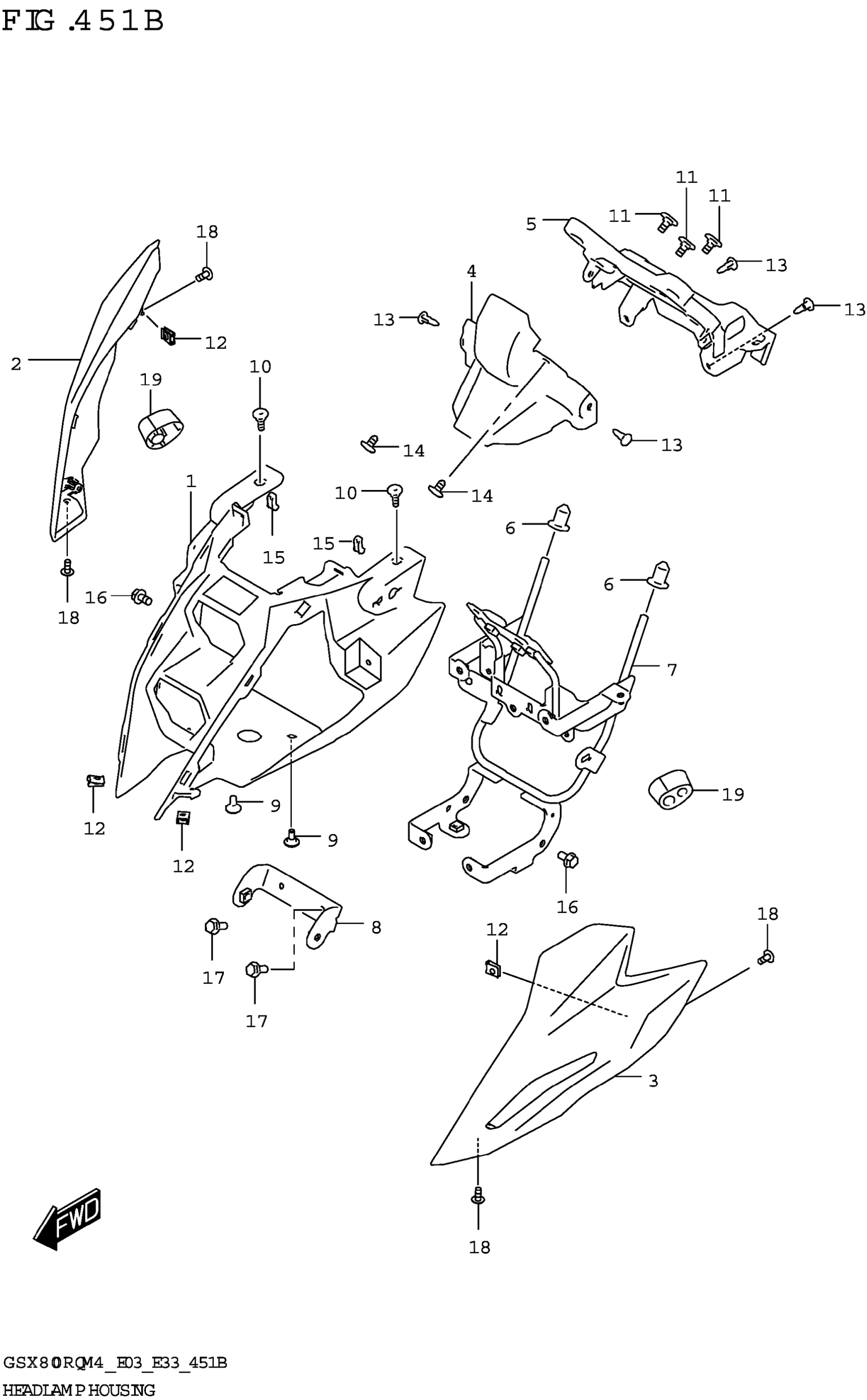

Suzuki GSX800RQM4 (2024) HEADLAMP HOUSING Diagram

#

Description
Price

1

COVER, HEADLAMP

51811-25L00

$73.57

2-1

COVER,HEADLAMP,R (BLUE) | BODY COLOR:QU1

51812-25L00-QU1

$66.68

2-2

COVER,HEADLAMP,R (GRAY) | BODY COLOR:QT7

51812-25L00-QT7

$65.07

2-3

COVER, HEADLAMP RH (BLACK) | BODY COLOR:YKV

51812-25L00-YKV

$66.68

3-1

COVER,HEADLAMP,L (BLUE) | BODY COLOR:QU1

51813-25L00-QU1

$66.68

3-2

COVER,HEADLAMP,L (GRAY) | BODY COLOR:QT7

51813-25L00-QT7

$65.07

3-3

COVER, HEADLAMP LH (BLACK) | BODY COLOR:YKV

51813-25L00-YKV

$66.68

4

COVER, METER FRONT

51823-25L00

$26.43

5

COVER, METER REAR

51825-25L00

$18.65

6

CUSHION, METER BRACE

51831-30H10

$2.90

7

BRACE, HEADLAMP COVER

51850-25L00

$114.29

8

BRACKET, HEADLAMP COVER

51860-25L00

$12.13

9

SCREW (5X13)

09139-05091

$2.09

10

SCREW (5X18)

09139-05094

$4.09

11

SCREW (6X13)

09139-06220

$4.12

12

NUT (M5)

09148-05038

$2.01

13

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

14

CLIP

09409-06328

$3.00

15

CLIP

09409-08012

$2.61

16

BOLT

01550-0612B

$2.44

17

BOLT

01550-0616A

$2.01

18

SCREW

03541-0512A

$1.41

19

EXTENSION, TURNSIGNAL

51814-25L00

$12.63
