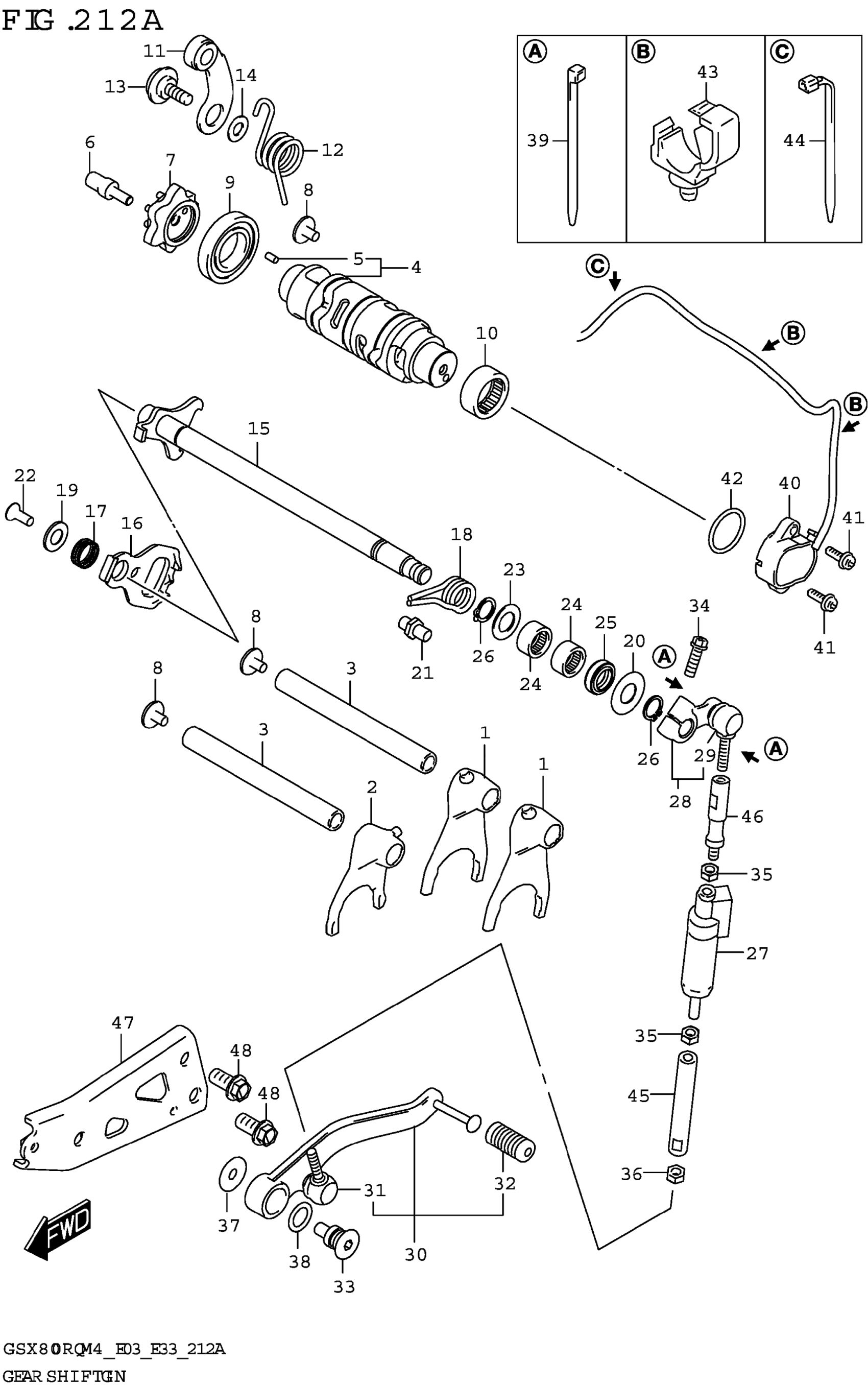

Suzuki GSX800RQM4 (2024) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1

25211-01H11

$80.17

2

FORK,GEAR SHIFT NO.3

25231-25L00

$55.65

3

SHAFT,SHIFT FORK NO.2 (L:132)

25411-24F00

$29.10

4

CAM,GEAR SHIFT

25310-25L00

$108.58

5

PIN (4X13.8)

04221-04089

$1.49

6

BOLT,GEAR SHIFT CAM PLATE

25312-17K00

$23.08

7

PLATE,GEAR SHIFT CAM

25381-17K00

$43.73

8

SCREW (6X12)

09136-06147

$3.20

9

BEARING (25X47X8)

09262-25006

$25.54

10

BEARING (25X32X12)

09263-25018

$21.39

11

STOPPER,SHIFT CAM This part replaces 25350-06G00.

25350-06G10

$18.03

12

SPRING,GEAR SHIFT CAM STOPPER

25355-18H00

Unavailable

13

BOLT (6X14.3)

09111-06041

$2.61

14

WASHER

08211-06141

$1.59

15

SHAFT,GEAR SHIFT

25510-25L00

$48.95

16

PLATE,GEAR SHIFT CAM DRIVE

25512-06G20

$24.37

17

SPRING,GEAR SHIFT PLATE RETUR

25518-01H00

$3.70

18

SPRING,GEAR SHIFT SHAFT RETUR

25518-06L00

$4.80

19

WASHER,GEAR SHIFT SHAFT END

25519-01H00

$5.98

20

WASHER,GEAR SHIFT SHAFT,L

25519-25L00

$2.37

21

STOPPER,GEAR SHIFT ARM

25671-01011

$4.48

22

SCREW (6X16)

09126-06014

$2.06

23

SHIM (14X24X1)

09181-14195

$2.71

24

BEARING (14X20X12)

09263-14027

$13.52

25

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.70

26

CIRCLIP

08331-3114A

$1.91

27

SENSOR ASSY,GEAR SHIFT

25500-25L00

$354.85

28

ARM,GEAR SHIFT LINK

25520-01H11

$50.35

29

.DUST COVER

25526-01H00

$4.22

30

LEVER ASSY,GEAR SHIFT

25600-25L00

$100.93

31

.DUST COVER

25526-01H00

$4.22

32

.RUBBER,GEAR SHIFT PEDAL

25652-20C00

$5.44

33

BOLT,GEAR SHIFT LEVER

25617-18H00

$30.70

34

BOLT (6X25)

09103-06528

$1.91

35

NUT

09140-06020

$2.02

36

NUT

09140-06025

$2.05

37

WASHER (10X30X2.5)

09160-10144

$5.28

38

WASHER (18X26X1)

09160-18037

$2.97

39

CLAMP (L:145)

09407-14407

$3.57

40

SENSOR ASSY,GEAR POSITION

37730-48K10

$131.03

41

BOLT (5X16)

09106-05023

$2.92

42

O-RING (D:2.4,ID:26.2)

09280-26005

$2.30

43

CLAMP

09403-20311

$2.17

44

CLAMP (L:125)

09407-14403

$2.26

45

ROD,GEAR SHIFT LINK

25525-25L00

$20.78

46

ROD,GEAR SHIFT LINK NO.2

25526-25L00

$20.78

47

BRACKET,GEAR SHIFT LEVER

25680-25L00

$39.23

48

BOLT (10X20)

09103-10394

$2.65
