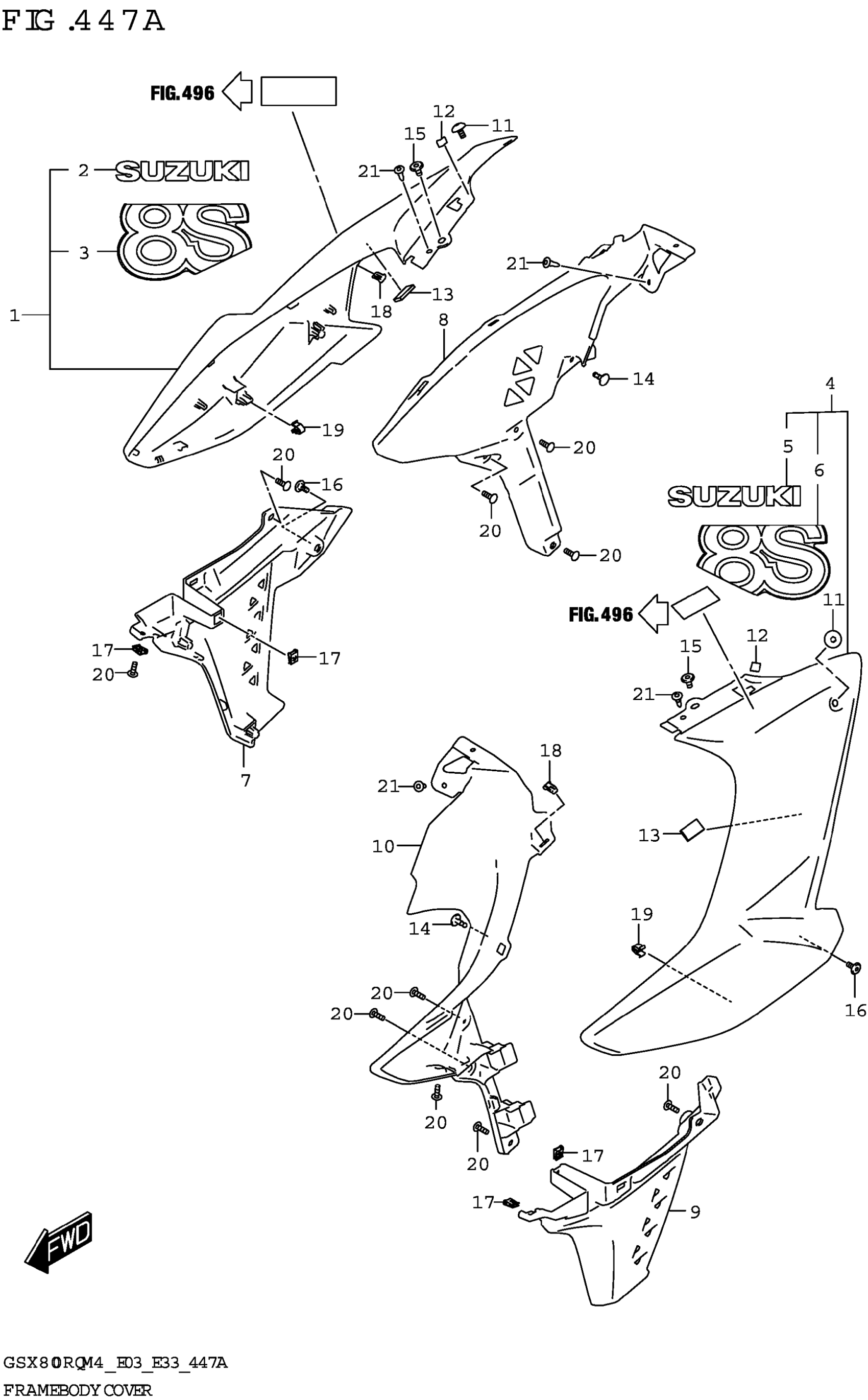

Suzuki GSX800RQM4 (2024) FRAME BODY COVER Diagram

#

Description
Price

1-1

COVER,FRAME BODY UPPER,R (BLU | ) BODY COLOR:QU1

47540-25L00-QU1

$75.40

1-2

COVER,FRAME BODY UPPER,R (GRA | ) BODY COLOR:QT7

47540-25L00-QT7

$73.57

1-3

COVER,FRAME BODY UPPER,R (BLA | K) BODY COLOR:YKV

47540-25L00-4TX

$73.57

2-1

EMBLEM,SUZUKI (BLACK) | BODY COLOR:QU1,YKV

68111-25L00-019

$14.82

2-2

.EMBLEM,"SUZUKI" (BLACK) | BODY COLOR:QT7

68111-25L00-YKV

$14.82

3-1

.TAPE,COVER FRAME BODY UPPER, | (BLACK,BLUE) BODY COLOR:QU1

68136-25L00-CLB

$21.43

3-2

.TAPE,COVER FRAME BODY UPPER, | (BLACK,GRAY) BODY COLOR:QT7

68136-25L00-CB8

$20.93

3-3

.TAPE,COVER FRAME BODY UPPER, | (BLUE,BLACK) BODY COLOR:YKV

68136-25L00-CK7

$20.93

4-1

COVER,FRAME BODY UPPER,L (BLU | ) BODY COLOR:QU1

47550-25L00-QU1

$75.40

4-2

COVER,FRAME BODY UPPER,L (GRA | ) BODY COLOR:QT7

47550-25L00-QT7

$73.57

4-3

COVER,FRAME BODY UPPER,L (BLA | K) BODY COLOR:YKV

47550-25L00-4TX

$73.57

5-1

EMBLEM,SUZUKI (BLACK) | BODY COLOR:QU1,YKV

68111-25L00-019

$14.82

5-2

.EMBLEM,"SUZUKI" (BLACK) | BODY COLOR:QT7

68111-25L00-YKV

$14.82

6-1

.TAPE,COVER FRAME BODY UPPER, | (BLACK,BLUE) BODY COLOR:QU1

68146-25L00-CLB

$21.43

6-2

.TAPE,COVER FRAME BODY UPPER, | (BLACK,GRAY) BODY COLOR:QT7

68146-25L00-CB8

$20.93

6-3

.TAPE,COVER FRAME BODY UPPER, | (BLUE,BLACK) BODY COLOR:YKV

68146-25L00-CK7

$20.93

7

COVER, FRAME BODY LOWER RH

47511-25L00

$32.74

8

COVER, FRAME BODY INNER RH

47512-25L00

$42.80

9

COVER, FRAME BODY LOWER LH

47521-25L00

$33.29

10

COVER, FRAME BODY INNER LH

47522-25L00

$42.80

11

BOLT

09139-06247

$2.46

12

CUSHION,FRAME BODY UPPER

47545-25L00

$1.49

13

FASTENER,FRAME COVER (15X25)

47912-37H00

$10.18

14

CLIP

94479-35F00

$5.62

15

BOLT (6X12)

09139-06225

$2.92

16

SCREW (5X13)

09139-05092

$2.25

17

NUT (M5)

09148-05038

$1.97

18

CLIP

09409-08012

$2.82

19

CLIP (10.5X14.3)

09409-08326

$2.48

20

SCREW

03541-0516B

$1.78

21

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78
