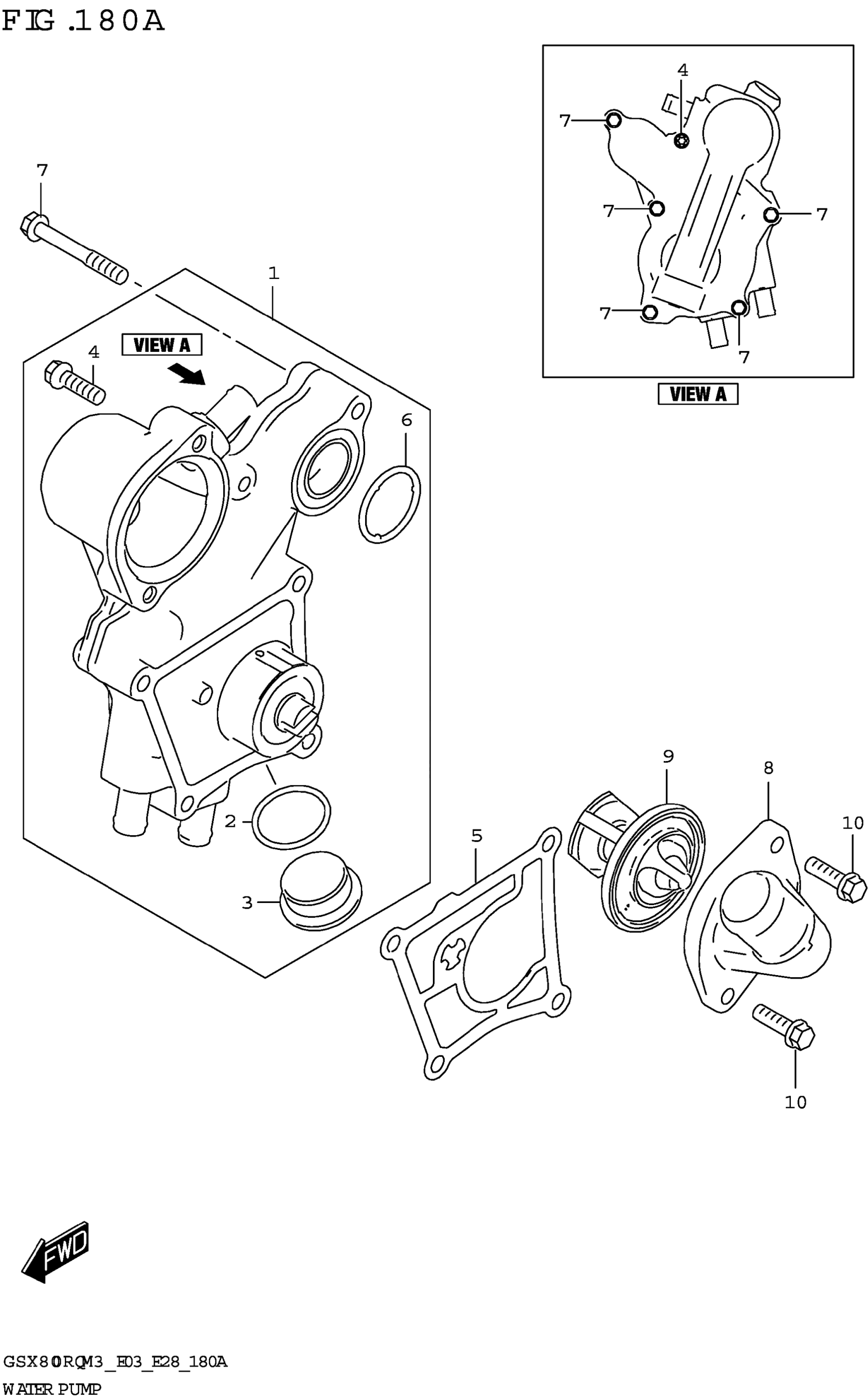

Suzuki GSX800RQM3 (2023) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER This part replaces 17400-25L00.

17400-25L01

$288.40

2

.GASKET,PLUG (26.5X30.5X1)

11217-85FA0

$3.98

3

.PLUG (26X11)

09248-26001

$17.90

4

BOLT (6X20)

09103-06527

$1.85

5

.GASKET,WATER PUMP

17421-25L00

$3.53

6

.O-RING,WATER PUMP

17431-25L00

$3.22

7

BOLT (L:45)

09103-06532

$2.18

8

CAP,THERMOSTAT

17661-25L00

$31.82

9

THERMOSTAT,WTR 82 DEG

17670-81AB1

$32.03

10

BOLT

01547-0620A

$2.03
