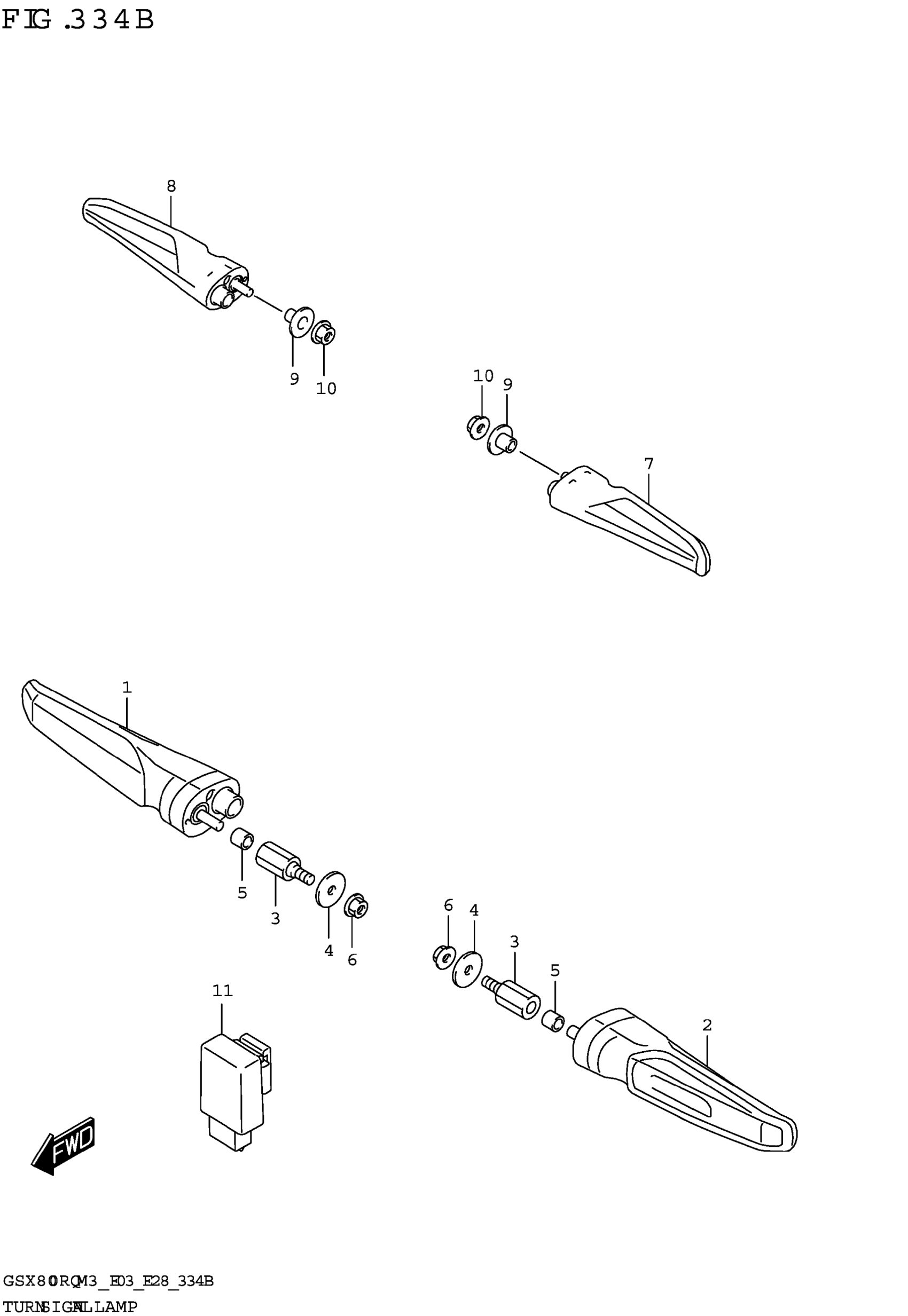

Suzuki GSX800RQM3 (2023) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FRONT TURNSIGNAL,R

35601-06LE0

$125.73

2

LAMP ASSY,FRONT TURNSIGNAL,L

35602-06LE0

$125.73

3

BOLT

09119-06142

$11.57

4

WASHER (6.5X22X2.0)

09160-06047

$1.91

5

SPACER (6.5X9X8)

09180-06261

$1.91

6

NUT (6X12)

08316-1006A

$2.19

7

LAMP ASSY,REAR TURNSIGNAL,R

35603-06LF0

$124.55

8

LAMP ASSY,REAR TURNSIGNAL,L

35604-06LF0

$105.88

9

WASHER

09169-06100

$1.49

10

NUT (6X12)

08316-1006A

$2.19

11

RELAY ASSY,TURNSIGNAL This part replaces 38610-06L00.

38610-06L01

$72.60
